Coil balance pivot shoe

Quick Learner from Florida

May 3, 2022 10:25 am

Good morning,

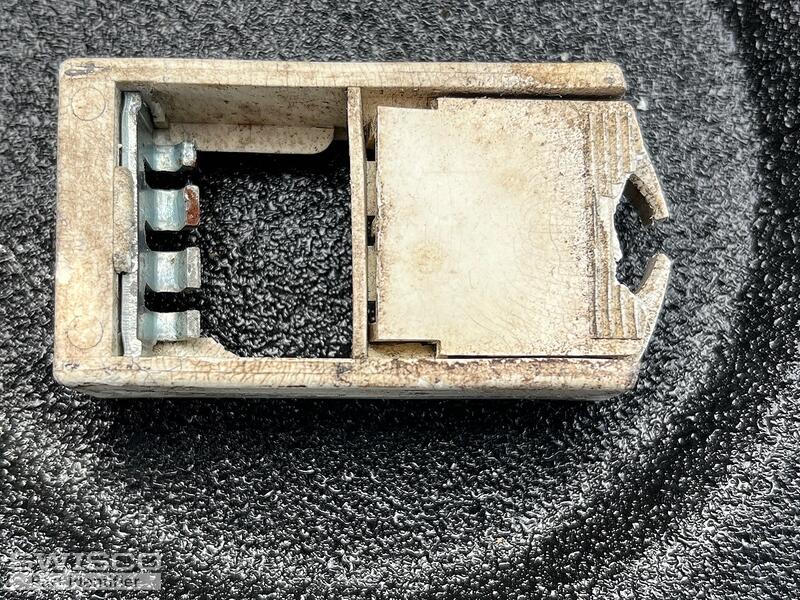

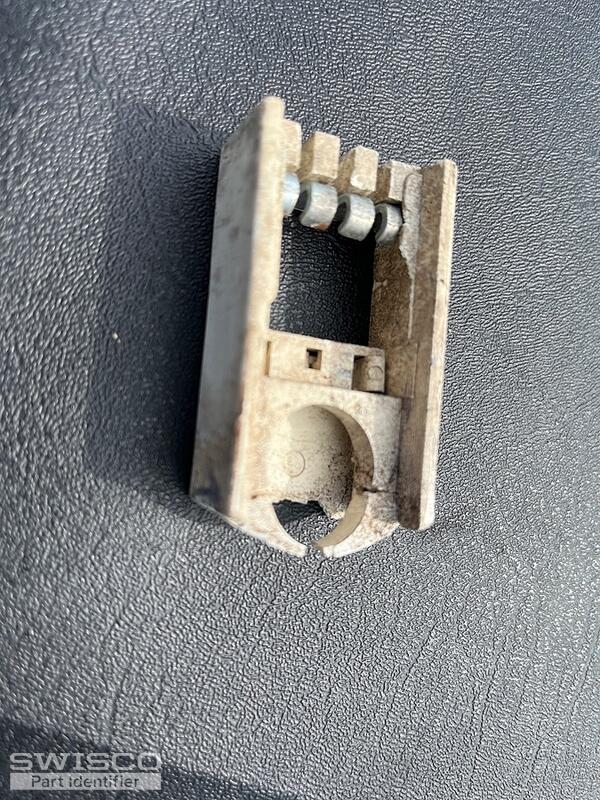

We are looking for some replacement parts for one of our projects.

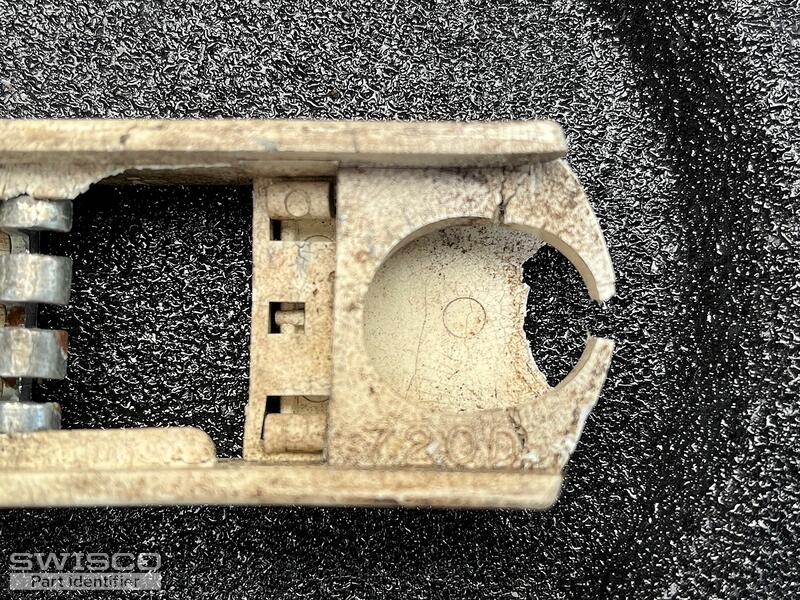

The pivot she is marked 720D on the inside.
The windows Permaguard Industries INC

5 user uploaded images

5 Replies

+ Add a Comment

Emily from SWISCO

May 4, 2022 2:56 pm

EXPERT

Hello!

We'd be happy to help but we'll need you to write out the thickness and width for your pivot shoe in order to determine a match.

Quick Learner from Florida

May 4, 2022 3:21 pm

Good afternoon

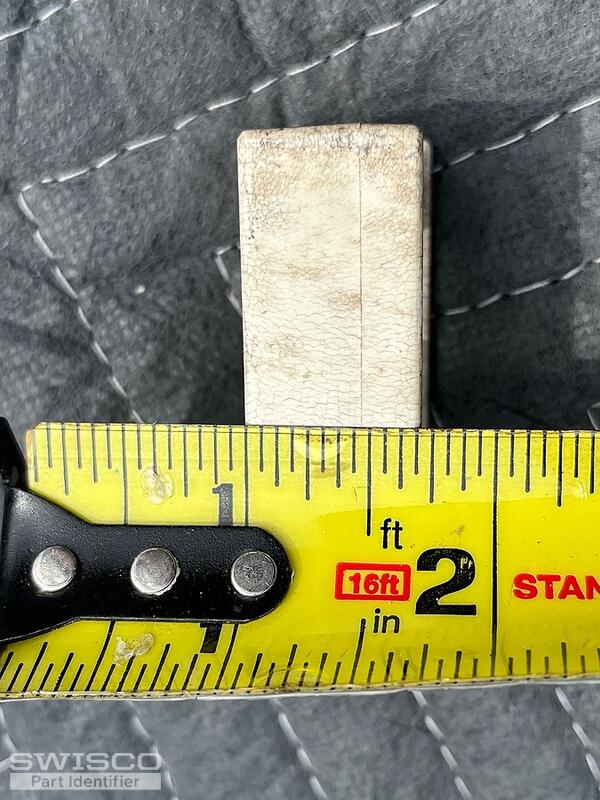

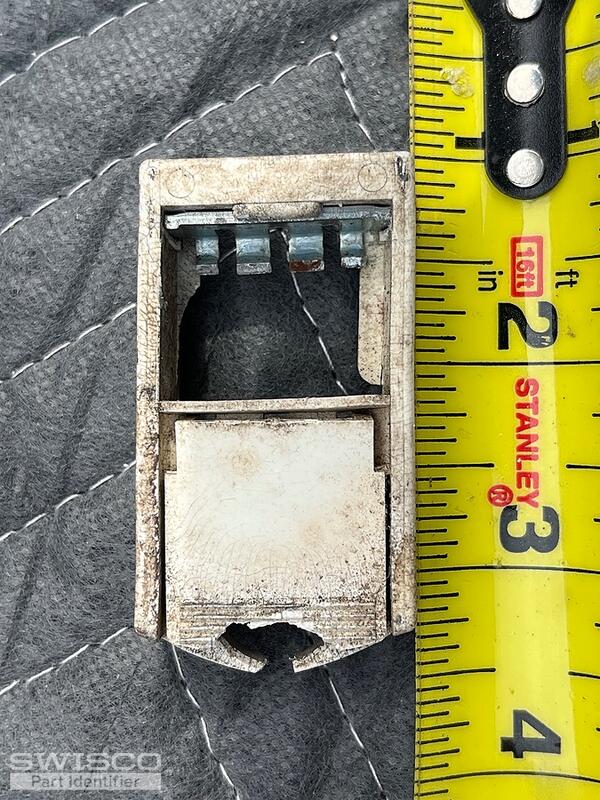

It is 2 1/4" x 11/16
Thank you

Emily from SWISCO

May 4, 2022 4:08 pm

EXPERT

Hmm, we don't have any pivot shoes that are 11/16" thick. Could you triple check that measurement for us?

Quick Learner from Florida

May 4, 2022 4:16 pm

Good afternoon, it is just under 3/4 thick

Paul from SWISCO

May 5, 2022 9:14 am

EXPERT

Since you're missing the center cam, we are assuming your pivot bar is similar to our 26-441 (1/2" X 5/16"). The pivot shoe that relates to this bar is our 15-120. Even though we have it at 3/4" thick, it is slightly less (47/64"). Review the dimensions and see what you think.
