Coil balance replacement

Question

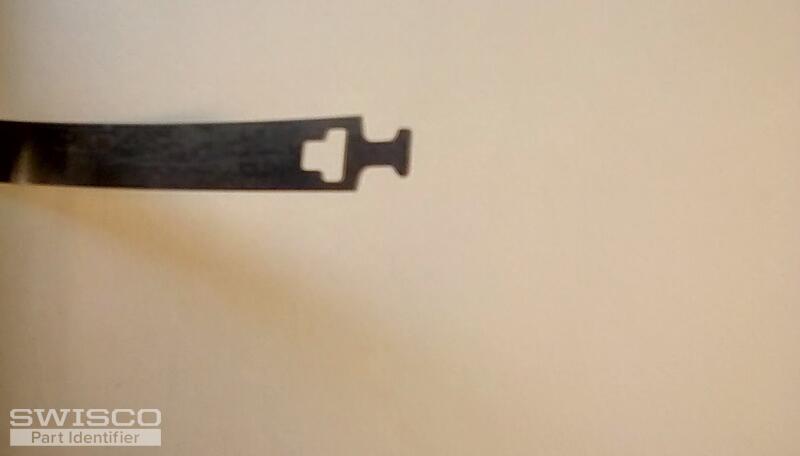

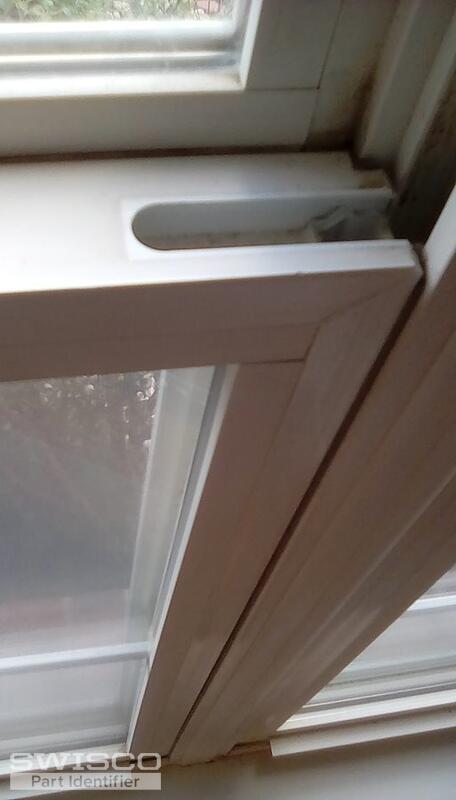

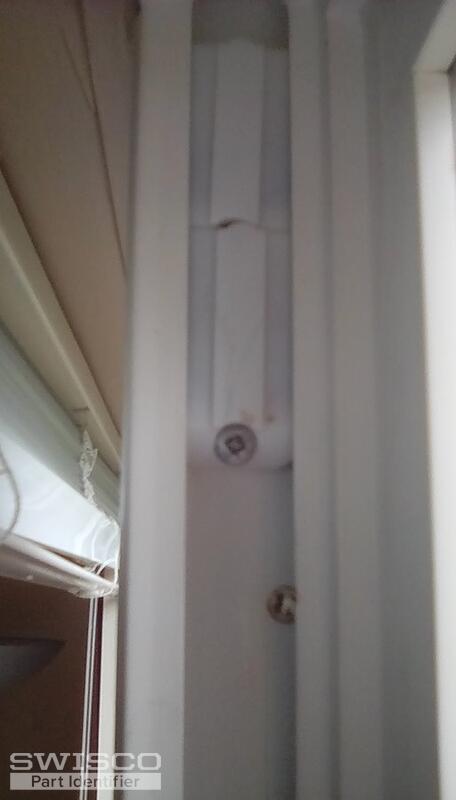

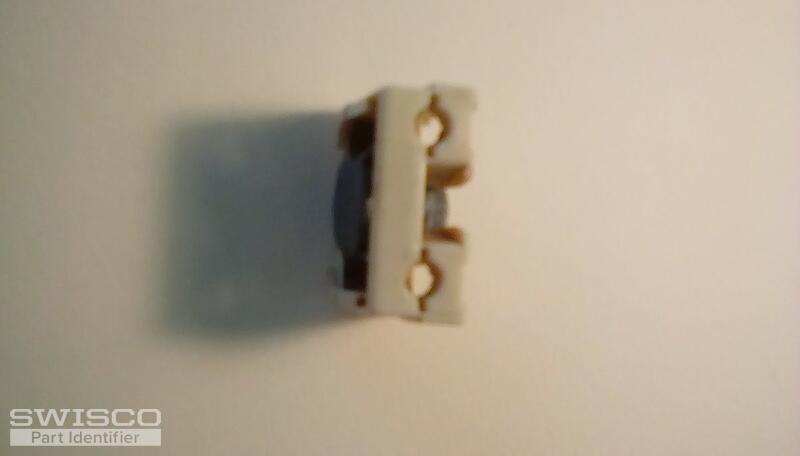

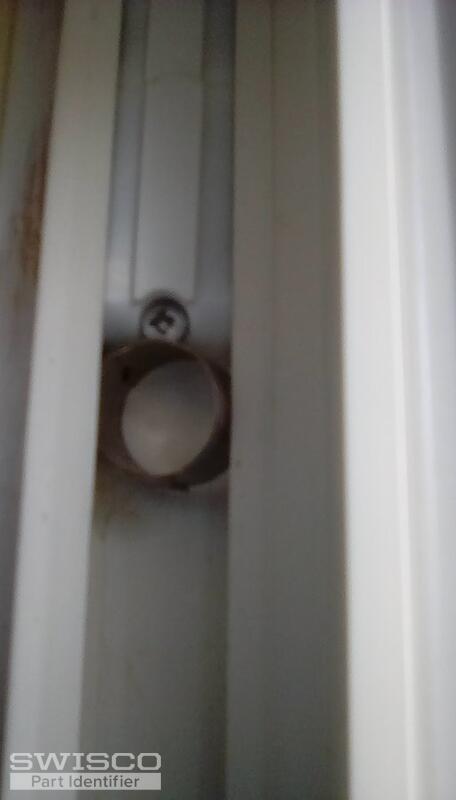

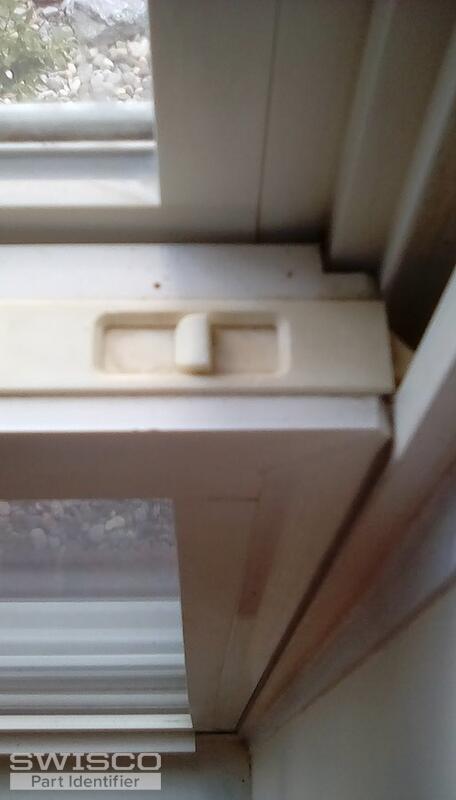

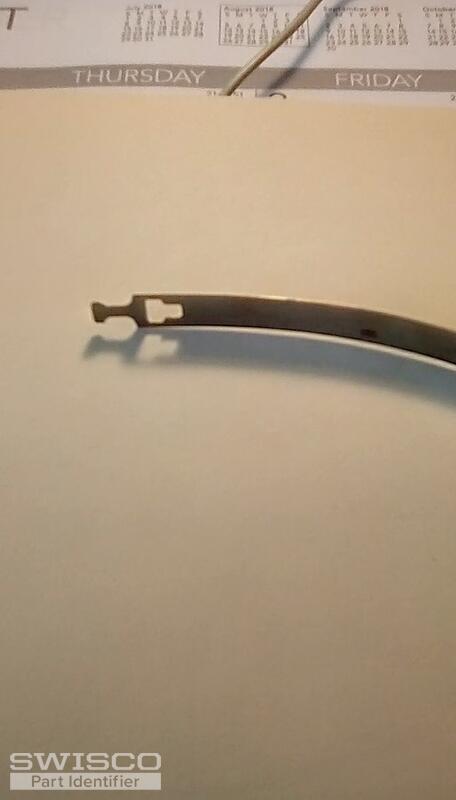

I have a Simonton window #9605021430 Pat 5232208 #5.5 37". These coils are 1/2 inch wide. Simonton says they don't carry the parts anymore. Window total length is 58". only the bottom portion moves. There are two coils on each side of the window. Will I need to replace the balance shoe,tilt pins, and pivots locks? The coil balance supports pretty much disintegrate when I take them out. I'll needs those also.

I have four of these windows that need updating. I want to fix one first to make sure all goes well.

Jim

I have four of these windows that need updating. I want to fix one first to make sure all goes well.

Jim

Paul · Accepted Answer

Hi there- thanks for reaching out!

We'd like to see your balance system to make sure your nylon parts, especially the pivot shoe, is intact. The coil spring from your numbers and dimensions being 1/2" wide seems to be our S160-5, but send us some photos so that we can be sure.
