Coil balance replacement

Question

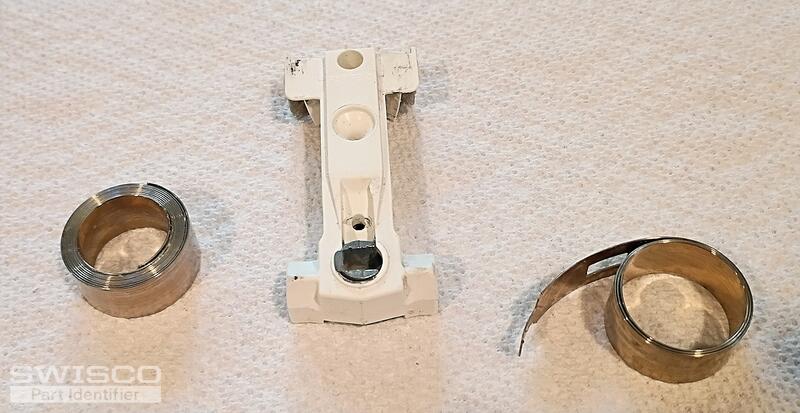

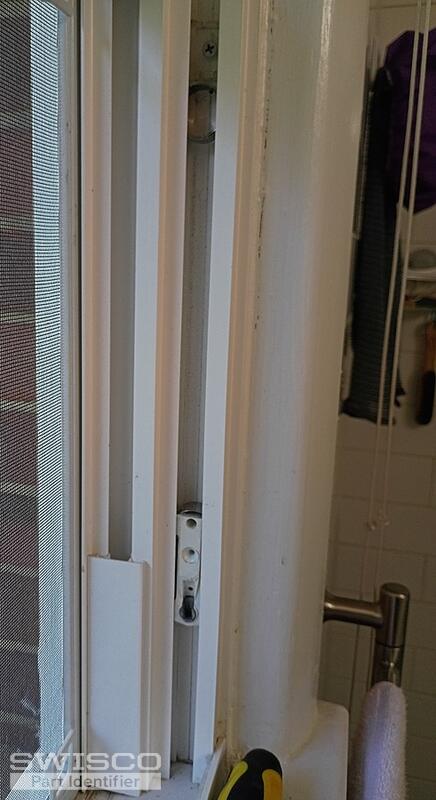

Hello. Both coil balances broke in my tilt window. The coil balance is 1/2" wide. Although hard to read, there is a stamp on one end which appears to be #10.0, which I believe is 10lbs. I believe the correct replacement is the Series 160 coil, 10lb version, but also saw the series 195 and 196 which look similar, but none have a 10lb option. The shoes seem to be fine, but am open to replacing as well, but couldn't find any similar ones on your website. Assistance confirming that the series 160 10lb is the correct replacement would be appreciated, and any information on a possible shoe would be great as well. Thanks.

Bob · Accepted Answer

Hey there. This is the 15-251 Balance Shoe, which is meant to work with the Series 160 Coil Balance springs. Therefore the S160-10 10 pound spring should be what you need. Let us know if you have further questions.
