Coil balance with claw shoe

Quick Learner from New Jersey
Jun 7, 2024 4:47 pm
Hi, Swisco,
my names Mike.

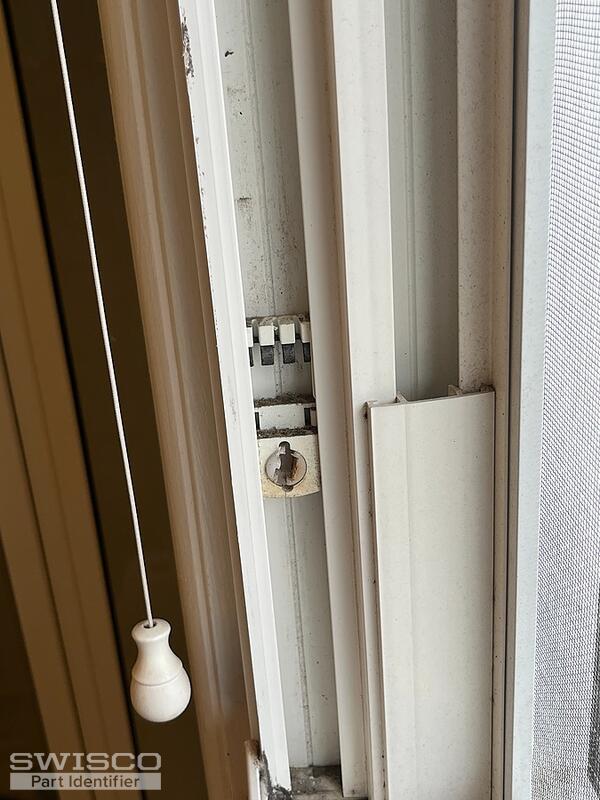

These pictures I hope you can help me identify the correct parts that I'm needing
IMG_2456 IMG_2455 IMG_2450 IMG_2448
4 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Jun 10, 2024 2:36 pm
SWISCO
EXPERT

Hello,

I can't be sure with the pivot shoe still installed but take a look at the 15-219. This may work but you'll need to remove your shoe to see how the width and thickness shown below compares to your part.

Dimensions for 15-219
Dimensions for 15-219

As for the coil springs, see the 1/2" thick S150-4 coil springs. We've also related the support parts on this page for you to look over. Thanks for posting!
