Coil balance and metal piece at the bottom , so the top window doesn't free fall

Quick Learner from Cleveland Ohio

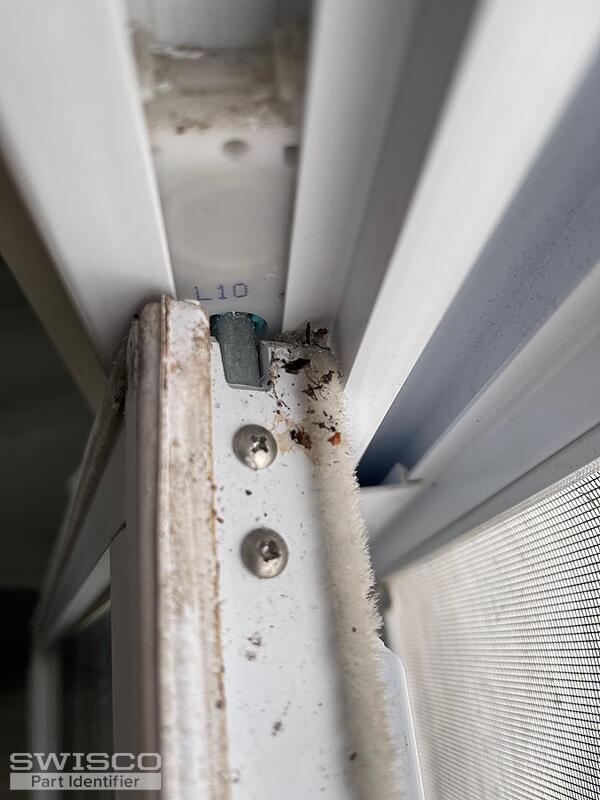

I recently had a home inspection, and when the inspector unlocked the window, the top window fell freely- which was quite startling. After taking the windows out , we noticed a few pieces broken/ missing. I included in my pictures what I felt may be most relevant. It has a coil balance that's been broken.and the metal piece at the bottom is missing that would go inside the plastic piece .( sorry, not so familiar with the names of window parts). Any help would be greatly appreciated in if/how to fix them with your replacement parts. Thank you VERY much,

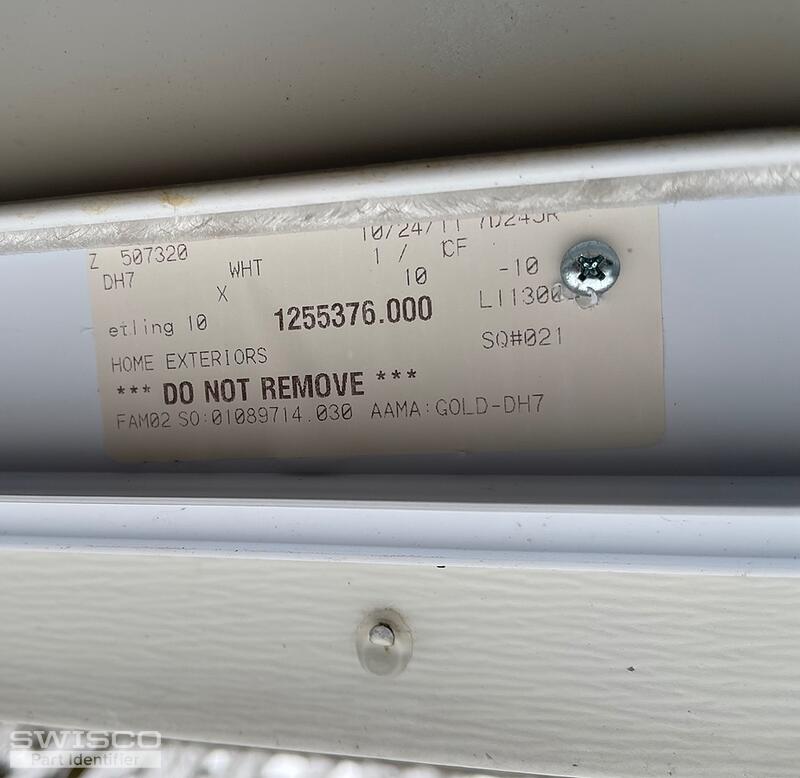

5 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

It sounds like you need a new pivot shoe and pivot bar. Yours resembles the 15-087, which uses the Series 180 coil springs, along with the other items under the related items section of the product page. I'm not sure what pivot bar you need, however. I would need to see it removed from the window to compare to our inventory.

I have also related some videos on the bottom of the page that you may find helpful.
