Coil balance and pivot bar replacement

A quick learner from USA says:

Pivot T-lock (lower plastic housing), and Retractable Metal Coiled Band Housing

(upper plastic housing). Markings on the upper plastic housing: "Patent # 6,378,169", and "5L".

Markings on metal coil: "5BG"

=============== MEASUREMENTS

I.- Complete housing assembly:

Length=3 3/8"Width=1 1/4"Thickness=1/2"

II.- Lower plastic housing:

Length=1 9/16"Width=1 1/4"Thickness=1/2"

III.- Upper plastic housing:

Length=2"Width=1 1/4"Thickness=1/2"

IV.- Metal band

width=7/16"

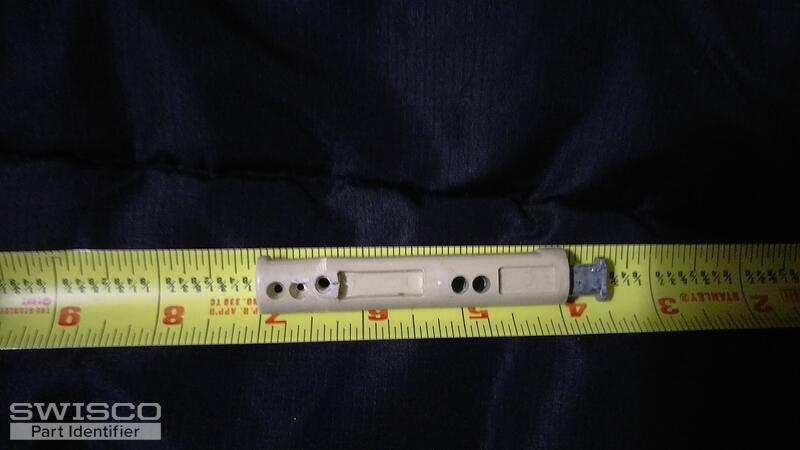

PIVOT BAR ASSEMBLY

Markings on the part: "ACTIVE CO", "718-522-0361" and "1173D"==========MEASUREMENTS:

Overall length=3 3/8"(Plastic and metal)

Plastic Length=2 5/16"(Plastic only)Diameter (oval) of plastic=7/16" X 9/16"

From end of plastic to tip of metal=7/16"

Metal thickness =3/16""T" at end of metal=7/16" X 3/16

Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. For your coil balance system, see our S140-5. For your pivot bar, see our 26-458. Compare the specifications on both product pages with your old parts and let us know what you think.
