Coil balance and shoe for a tilt cardinal window

Home Owner from Saint Louis, mo

Mar 19, 2024 10:05 am

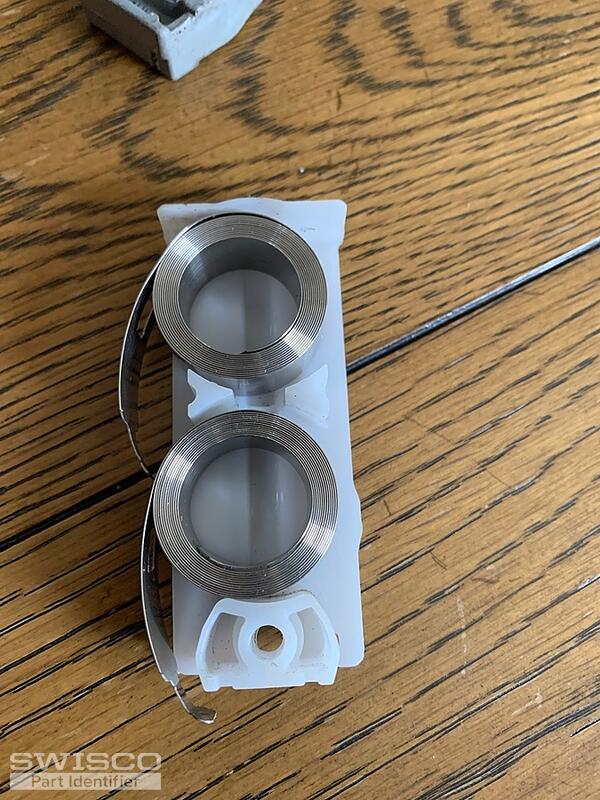

Part #801020 on white plastic
#5.5 on coil 5232208
Can't see numbers on second coil

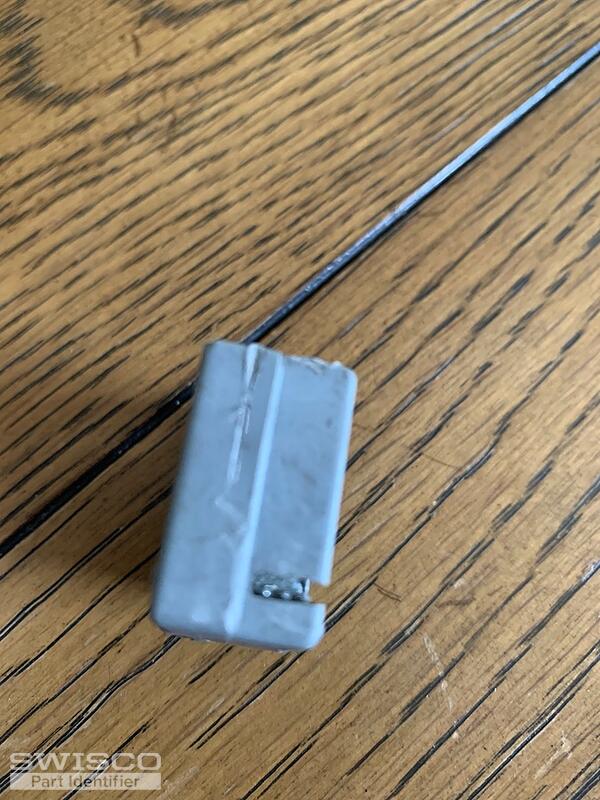

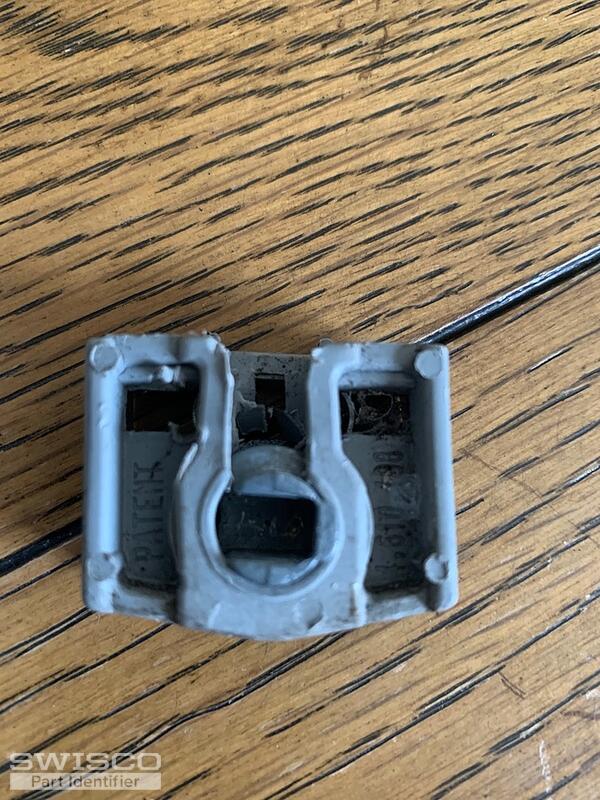

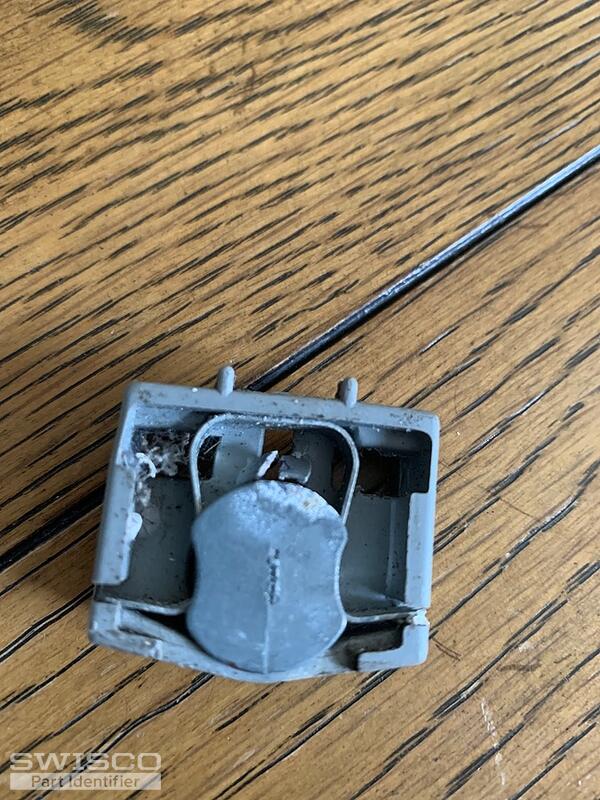

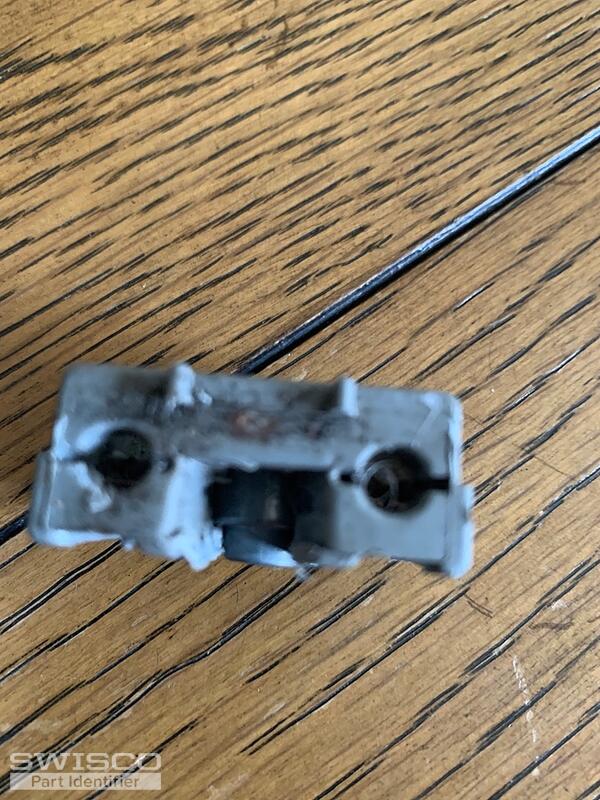

Shoe 4,610,108 possible patent number

5 user uploaded images

4 Replies

Casey from SWISCO

Mar 19, 2024 1:45 pm

Hello,

Your photos resemble the 15-191 pivot shoe, compatible with either the 1/2" thick Series 160 or the 3/8" thick Series 165 coil springs. Compare the dimensions to confirm the best fit. The product pages also show a list of related items used with each coil series. Thank you!

Home Owner from Saint Louis, mo

May 2, 2024 4:03 pm

Should I order both the Pivot Shoe and the Coil? Is it possible they're just not attached? Let me know if you need better photos.

Casey from SWISCO

May 3, 2024 9:27 am

You would only need to replace the broken parts of your coil balance assembly. It does look like one of your coils is slightly bent, so it may be a good idea to replace them as well but ultimately it is up to you.
