Coil replacement

A home owner from Jersey City, NJ says:

March 8, 2023

One side of the window coil broke and window not staying open firmly. I don't know what coil or parts needs to replaced. Can you please help in identifying the replacement parts from the pictures

Thumbnail of the uploaded file named B97DE86A-D04C-4B5A-98C1-A9B8AD23541A.jpeg

Thumbnail of the uploaded file named C02227E4-D3FF-42AC-B093-B04C1946D2BC.jpeg

Thumbnail of the uploaded file named 98725B7E-E467-4507-8FED-3CE6B24D43F6.jpeg

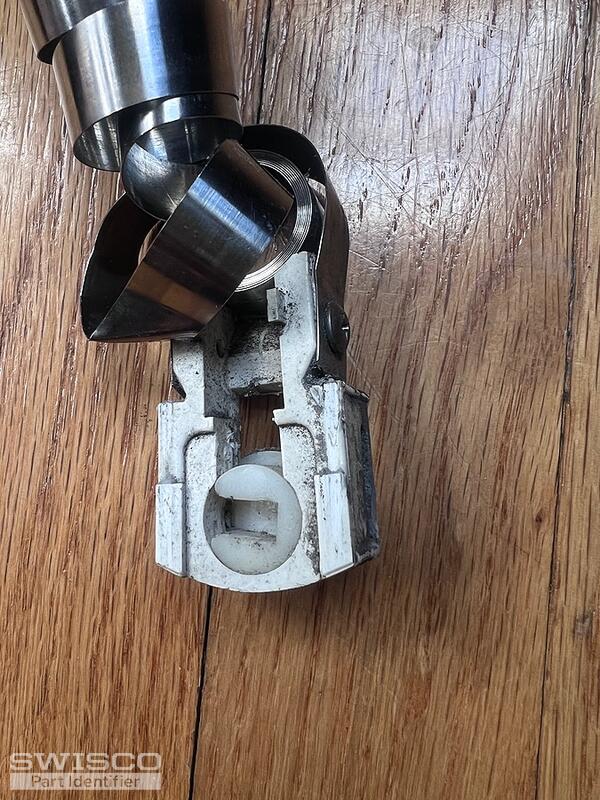

Thumbnail of the uploaded file named 2F1ABEF0-4445-4174-95D6-81D12B3AFB22.jpeg

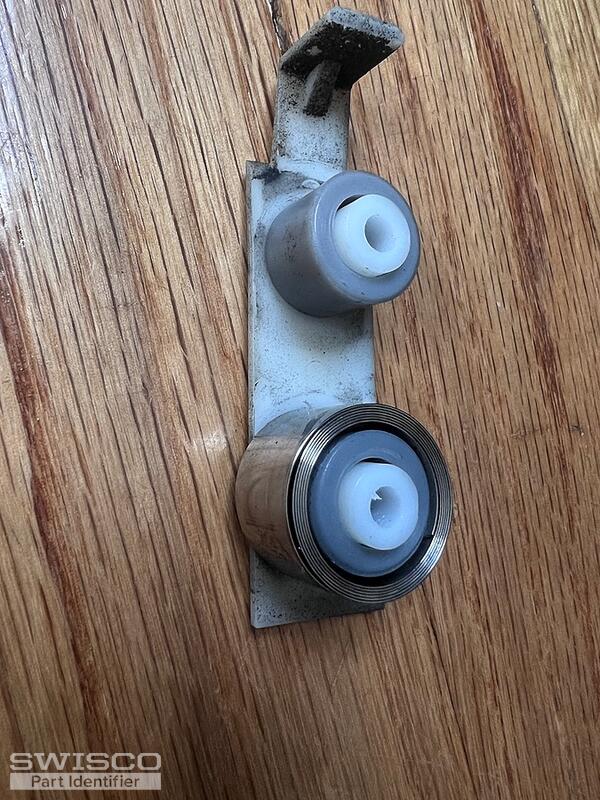

Thumbnail of the uploaded file named 3E90D5A3-1197-45FF-858E-1D4D64CC2553.jpeg

Emily from SWISCO responded:

March 9, 2023

Hello there!

We appreciate you reaching out to us. The pivot shoe in these photos looks like a match for our 15-180 which is used with the Series 190 coil springs. Look over the specifications for this part and let me know if you have any questions.

A home owner from Jersey City, NJ says:

March 9, 2023

Thank you for the assistance. I placed the order the recommended parts

Emily from SWISCO responded:

March 9, 2023

Great! We really appreciate your business. Let us know if you need anything else and good luck with the repair!

Coil Balance Shoe

15-180

$3.97

Double Support Detent Clip

15-181

$6.17
