Coil spring broken on window balance

Handy Person from Toronto
Hi - I don't see any markings on the hardware, or the windows :-(

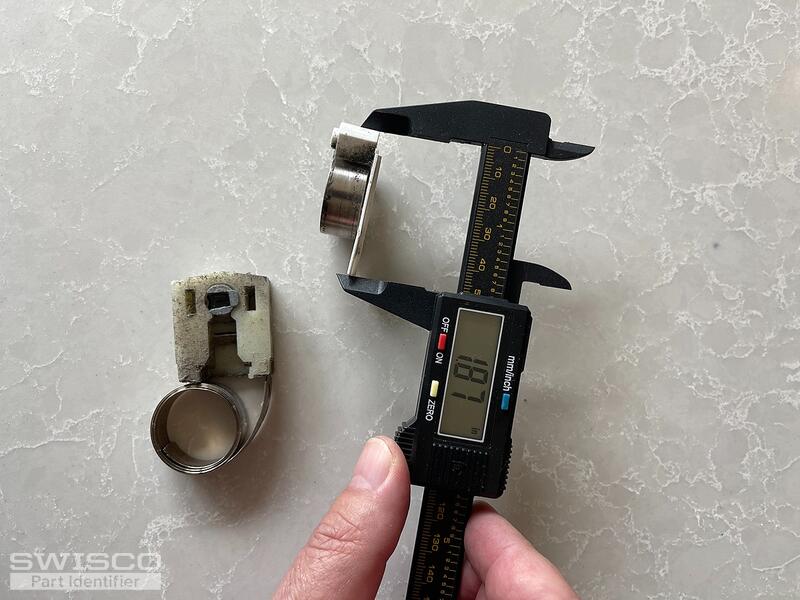

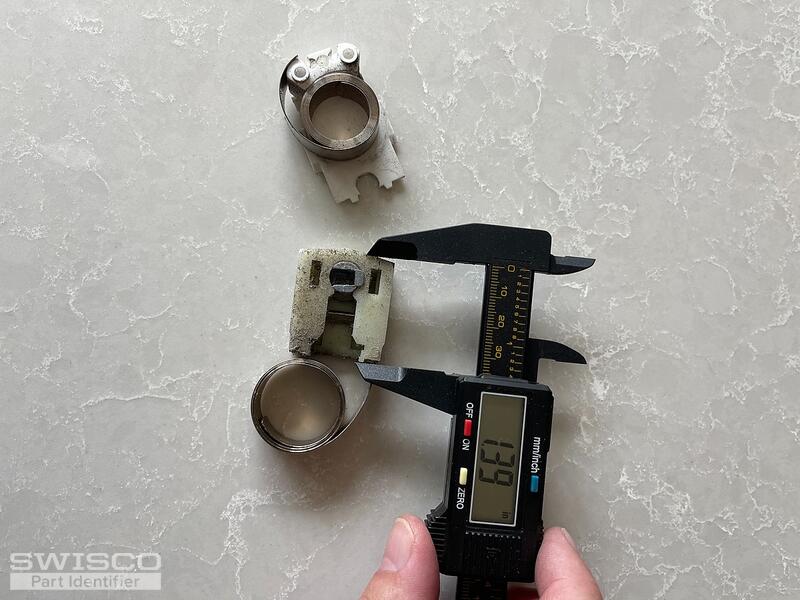

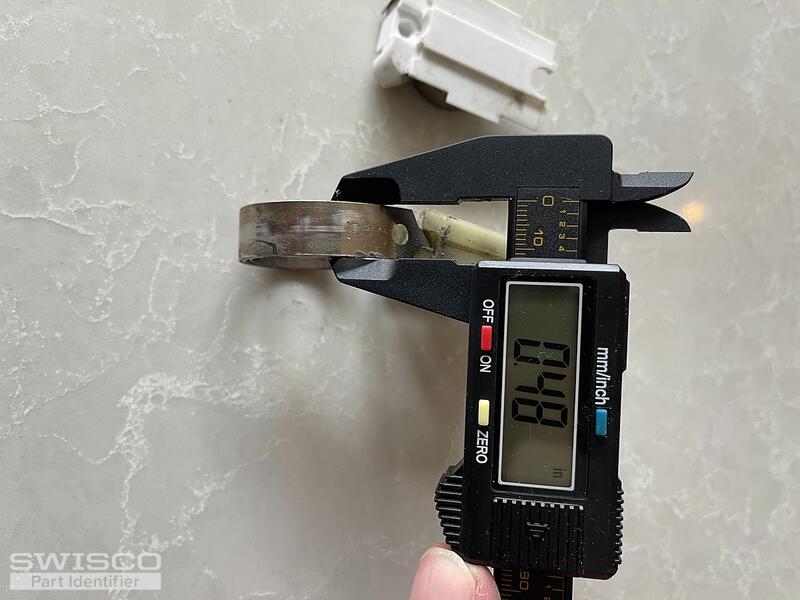

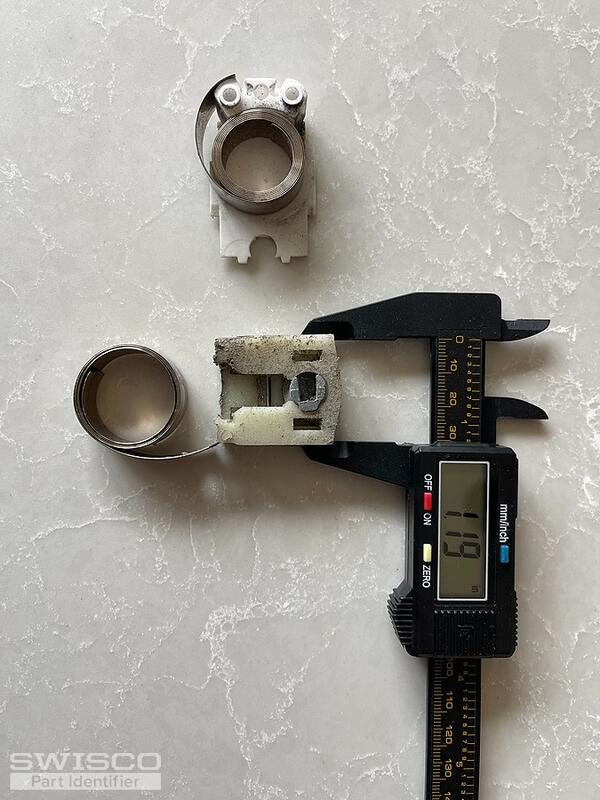

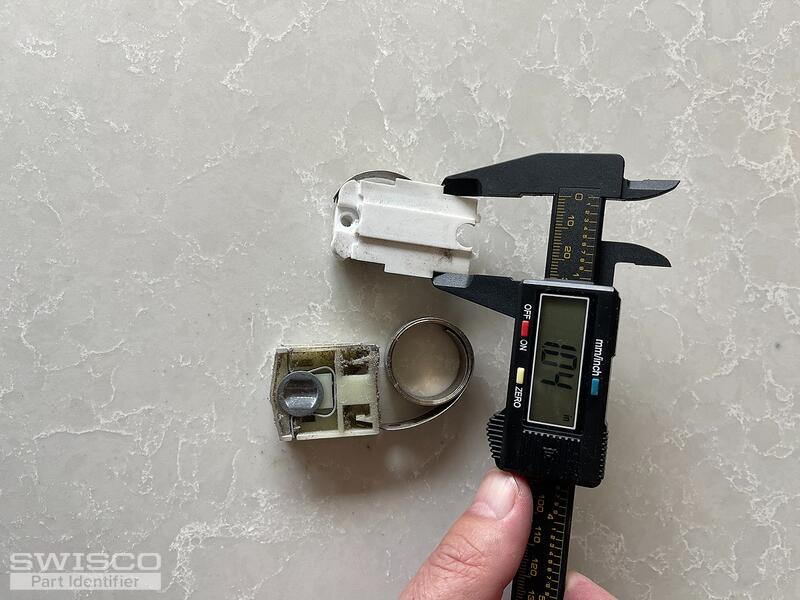

Tried to get the best possible pics & measurement.
5 user uploaded images
3 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello,

I don't recognize this coil balance assembly at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available. Thank you!


Lauren
Lauren from SWISCO
SWISCO
Expert

From your dimensions, we believe you can use our 15-228 pivot shoe that is 1-1/4" wide by 17/32" thick. It is used with our Series 160 coil spring. There should be a spring weight number stamped on the end of your coil spring. We do not have your exact coil spring cover, but if you need a new one, please see 15-150S. Please let me know if you have any questions!
