Coils Needed

Question

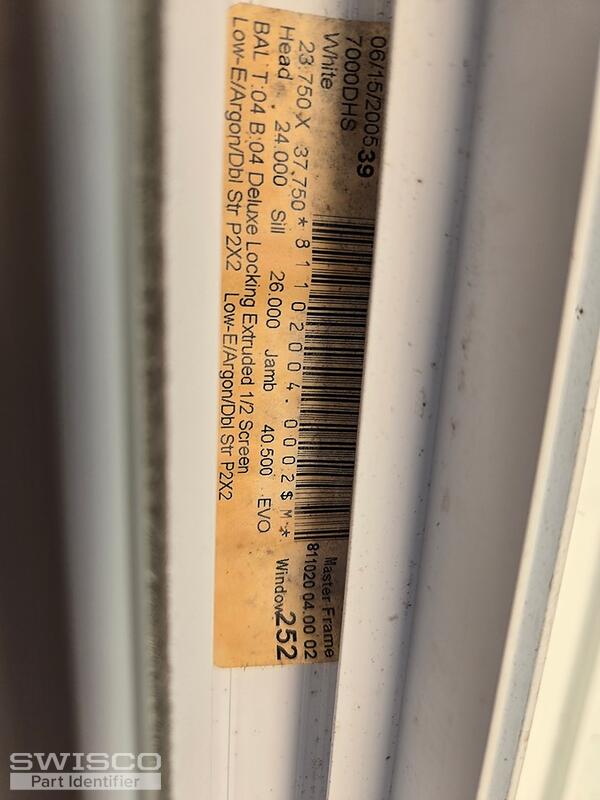

Hi, Not sure about coil and pivot shoe needed here. Label not to helpful to me. This is a small bathroom window and a coil on one side broken. Thank for your help, Craig

Bob · Accepted Answer

Thanks for posting. This looks like a 15-087 Pivot Shoe to me. This setup works with Series 180 Coil Balance springs sold separately. Let me know if you have any questions about this hardware.

Series 180 coil balance diagram
