Coin balence assembly

Start a new Discussion

Contractor from New Orleans

Mar 21, 2018 1:12 pm

Looking for a whole coil balence assembly, including coils, coil housing, and pivot.

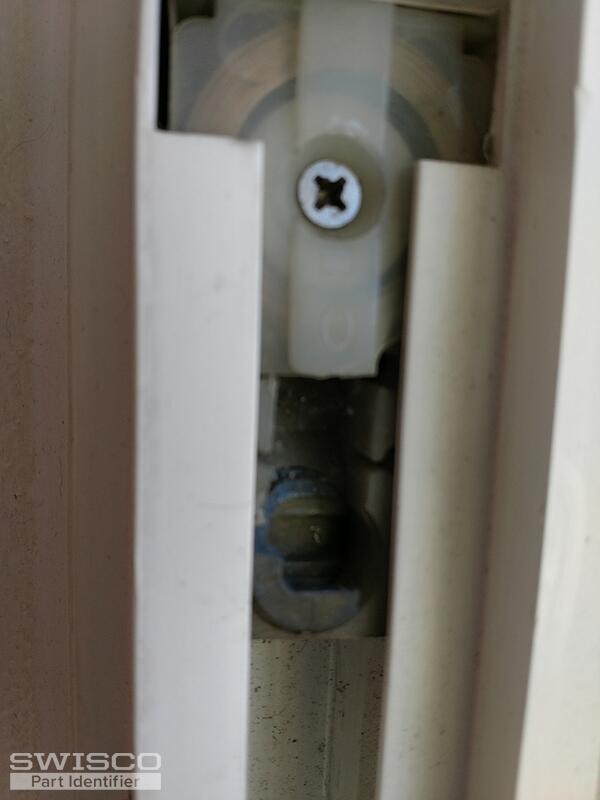

User submitted photos of a window balance.

4 Replies

Paul from SWISCO

Mar 23, 2018 3:29 pm

In your photos you show the coil springs and nylon housing. They seem to be attached to the pivot shoe that you didn't show in the photos. What about the other side of the window or another window in the house? Would you be able to send us photos of the entire assembly including the shoe from another window perhaps? It is very important to match the correct pivot shoe to what you currently have. Send us photos of the pivot shoe and we will be happy to assist you in a replacement.

Quick Learner from Louisiana

Apr 16, 2018 12:14 pm

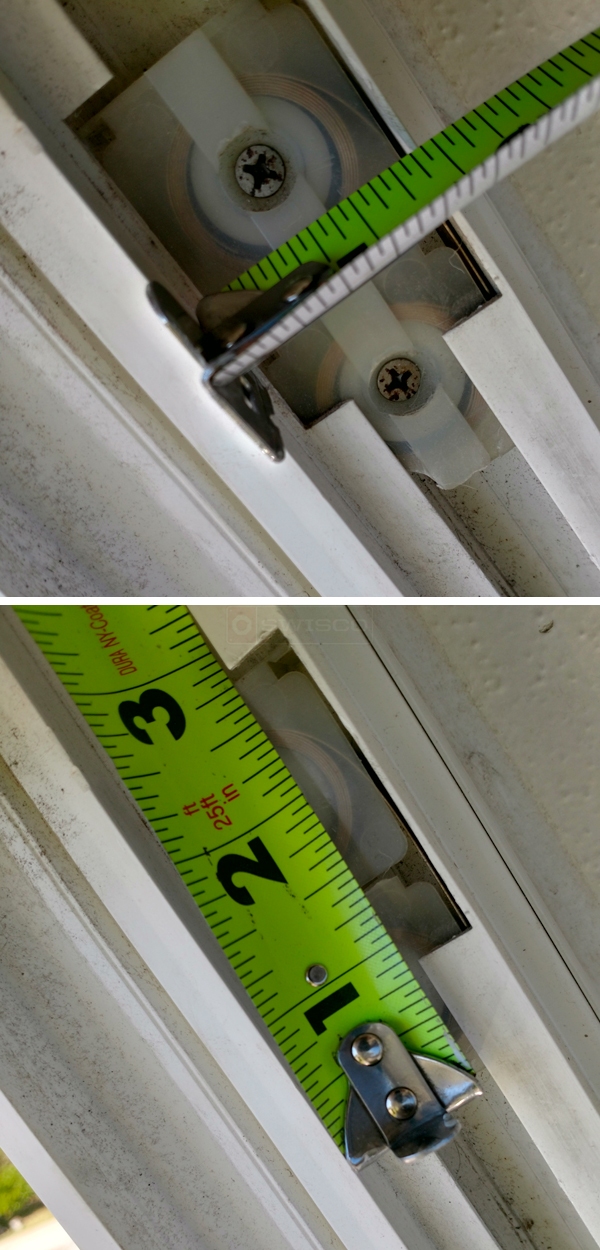

This is the assembly on other side. I hope this helps.

1 user uploaded image

Tom from SWISCO

Apr 18, 2018 1:39 pm

Perfect. That looks like our 15-175 pivot shoe, which is compatible with our Series 152 coil spring. We don't have the exact same cover as your old ones, but the Series 152 uses our 15-144 cap and 15-145 bushing. The 15-144 caps can be stacked. See what you think.
