Cole Sewell Storm Door Model 2400 or 2500

A home owner from 29710 says:
I am looking to replace the mortised hardware on this storm door and need to identified what part number I need.
Profile picture of Tom
Tom from SWISCO responded:

Cole Sewell is no longer in business, so you won't be able to get an exact match for the part in question. We may still be able to help but I will require a clear photo of the handle set you have now so that I can track down a good match.

A home owner from 29710 says:

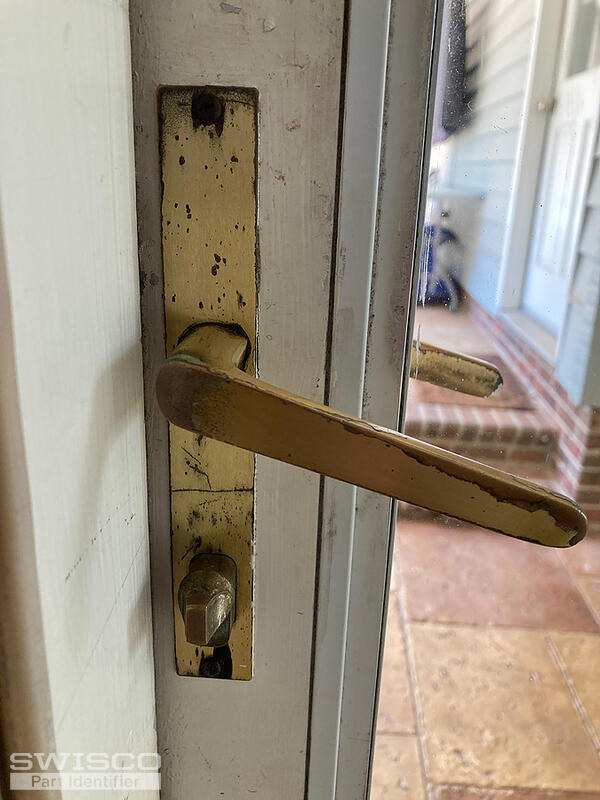

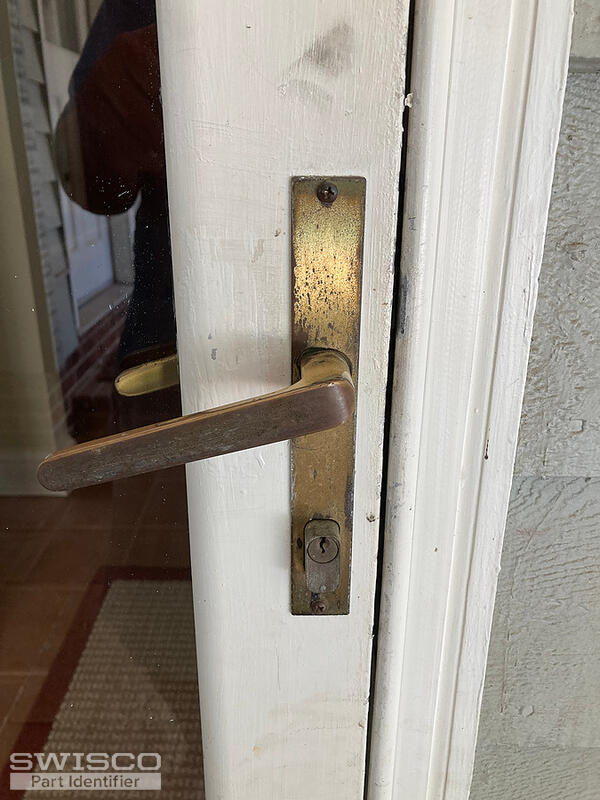

Img 788 and 790 the plate is 7" x 1"

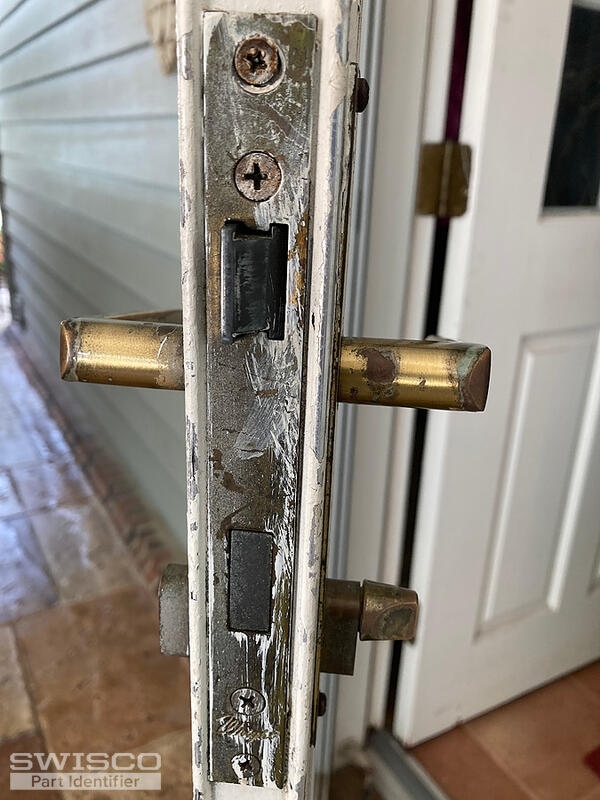

Img 789 the length is 7.5"

Hope this helps.
Thumbnail of the uploaded file named IMG_0790.jpg
Thumbnail of the uploaded file named IMG_0789.jpg
Thumbnail of the uploaded file named IMG_0788.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! I think our best option is going to be the 40-049. Look it over and let me know if you agree, or if you had any concerns.

A home owner from 29710 says:
If this set does not work what is the return policy?
Profile picture of Tom
Tom from SWISCO responded:

You can see our return policy here.

A home owner from 29710 says:
Tom
The dimensions on the 40-049 are different than what I sent you. The inside an outside plates are longer and the door jam plate is smaller. Do you think that will make a difference?

John
Profile picture of Tom
Tom from SWISCO responded:

Overall plate size doesn't matter so much. What's more important is hole spacing. If the plates mismatch then in a worst case scenario you may just see an outline of the old ones. But if the holes mismatch then it simply won't install, so that's a much bigger issue.

Even in that scenario, though, drilling new holes is always an option. I've done it myself with pretty frequent success. Frequent, but not guaranteed. There's still a chance that it won't work even after drilling holes, so you may want a second opinion before you make such a change to your door. Better safe than sorry.

How to install the Swisco 40-049 Mortise lock set.
How to install the Swisco 40-049 Mortise lock set.
VIDEO
WATCH >
How to flip a storm door mortise latch.
How to flip a storm door mortise latch.
VIDEO
WATCH >
