Commercial toilet door concealed latch

Quick Learner from south riding virginia

Jan 29, 2014 12:47 pm

This is from a toilet door in our community center, The latch pin does not extend when the knob is turned. Do you think I also need a new door latch--it looks like 10-563

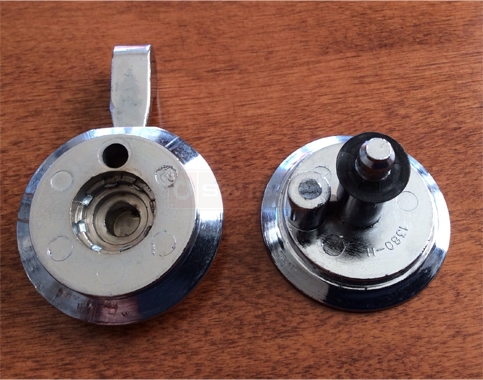

A customer submitted image of their stall door latches.

4 Replies

Tom from SWISCO

Jan 29, 2014 2:11 pm

Yes, it's possible you need a new inside latch. Does it appear damaged in any way? I also recommend trying to throw it manually to confirm that it's not working.

Quick Learner from south riding virginia

Jan 29, 2014 2:46 pm

Manually, I cannot get the latch pin to extend beyond the door. So can you please advise as to what knob set I should order as well as the inside latch?

Tom from SWISCO

Jan 30, 2014 9:03 am

If you can't manually extend the latch then it's likely broken. You will have to replace it. I'm not sure exactly what you have, but if it matches our 10-563 then I would go with that.

As for the latch, see our 10-557 and see what you think. Be sure to also see our video on how to replace this hardware.
