Commercial weather strip ID

Question

Here are some pictures of the doors that need the Amarlite weatherstrip replaced.
The dimensions of the weatherstrip is 5/8" wide x 1/4" deep. Due to the lock on the doors, the top portion is 32 1/2" and the bottom portion is 45 1/2". It is 1/8" - 3/16" between the double doors. There are 2 sets of double doors and the dimensions are the same for all 4 doors.

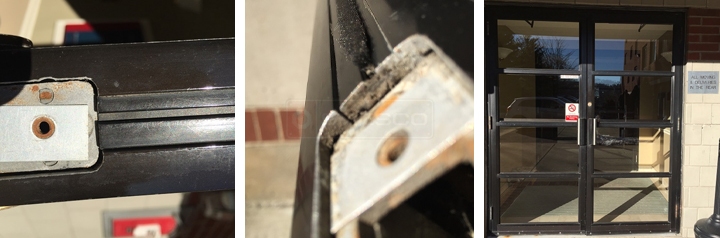

User submitted photos of commercial door hardware.

Dave Sr. · Accepted Answer

I would suggest looking at our 58-127 or 58-179 wool pile to start. I believed Amarlite used the 58-179 wool pile with the 3/16" backing. Now, you say the gap between your doors are 1/8" - 3/16", so maybe you could use the 58-127. Check the groove in the door to see if the 3/16" backing will fit. As for the lock face plate, look at the 79-029 for the short throw bolt or the 79-030 with the longer throw bolt.
