Components for a Leigh Full Vu steel bi-fold door

A handy person from Louisville, KY says:

Hello, I'm trying to get all the components for a Leigh Full Vu steel bi-fold door. I looked on your website and came across what looked like the parts put wasn't sure. The one product code I found was 21-108 and at the bottom of that page was what looked like the parts I needed.

Thumbnail of the uploaded file named 1.jpg
Thumbnail of the uploaded file named 2.jpg
Thumbnail of the uploaded file named 3.jpg

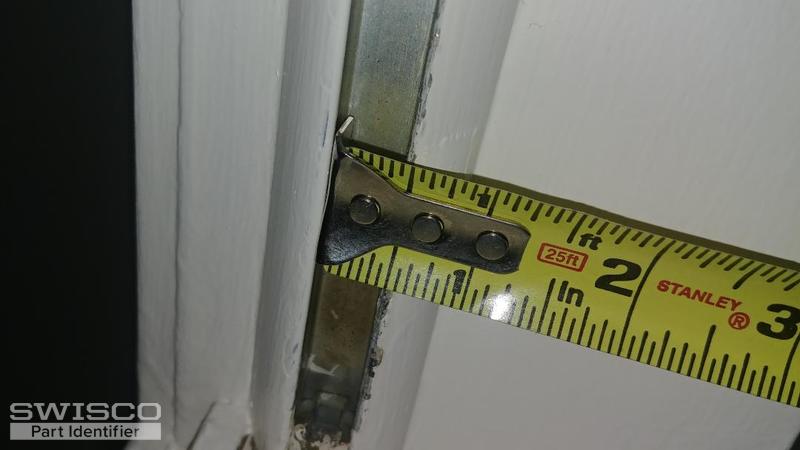

Thumbnail of the uploaded file named 4.jpg

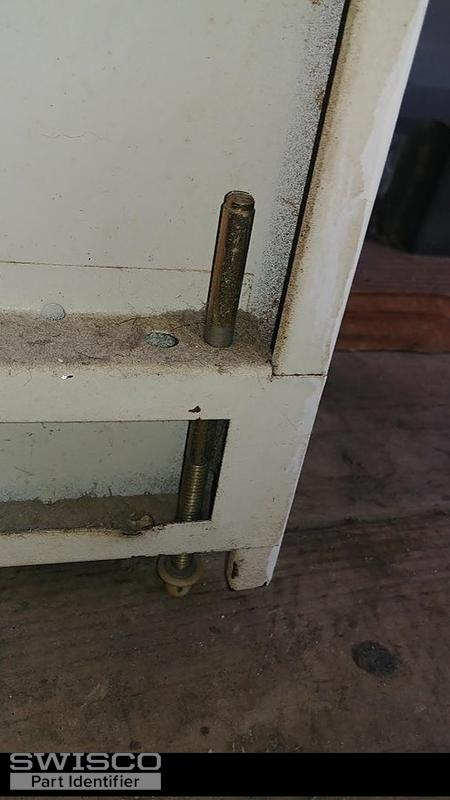

Thumbnail of the uploaded file named 5.jpg
A handy person from Louisville, KY says:

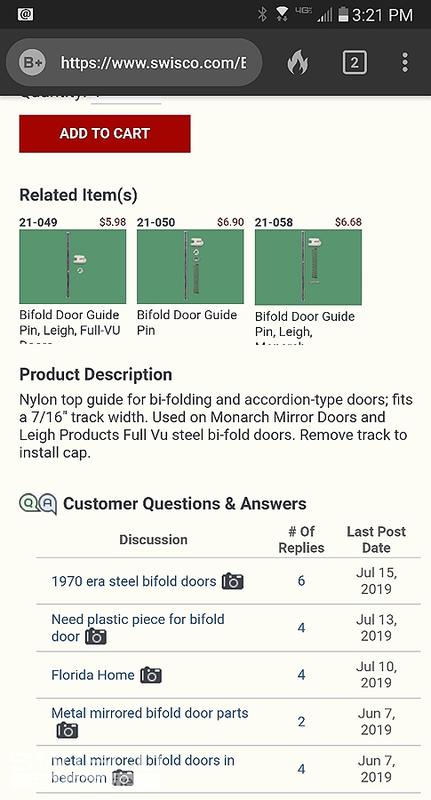

Here is a screen capture of your website
Thumbnail of the uploaded file named Capture+_2019-08-06-15-22-00_resized[1].png
A handy person from Louisville, KY says:
Additional photos

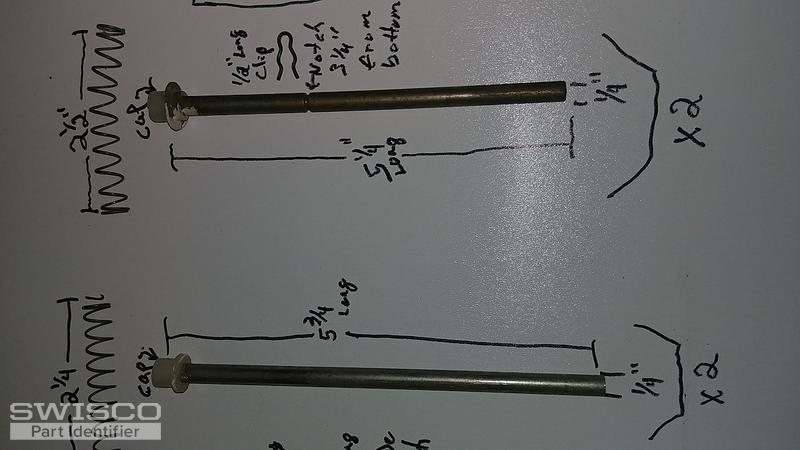

Thumbnail of the uploaded file named 0807191412b.jpg

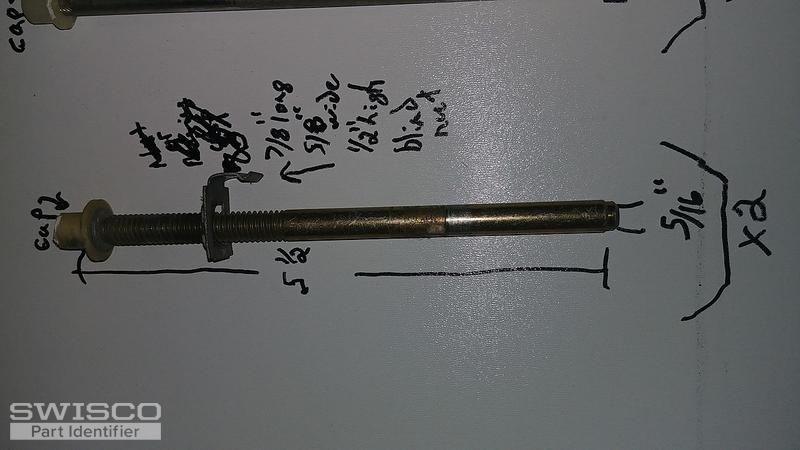

Thumbnail of the uploaded file named 0807191412c.jpg

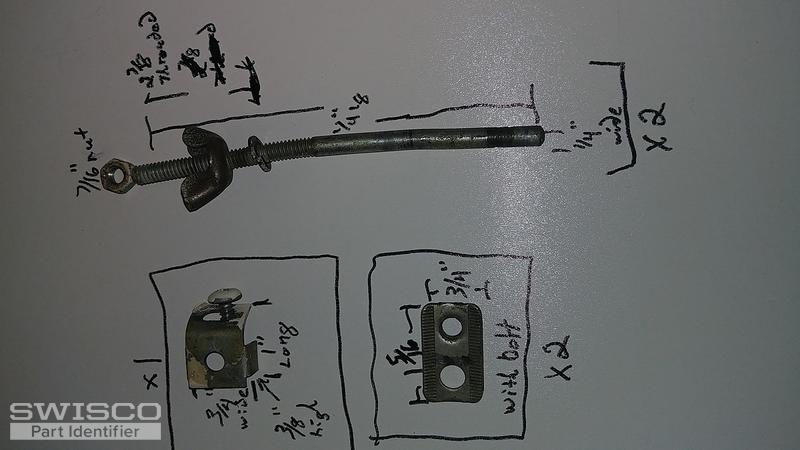

Thumbnail of the uploaded file named 0807191412a.jpg

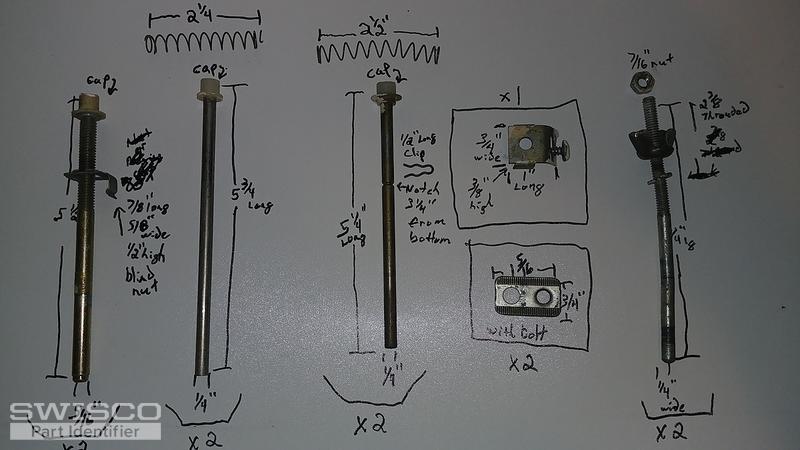

Thumbnail of the uploaded file named 0807191412.jpg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for the photos and dimensions. Please note that length is not as critical as pin thickness and the style and size of the fittings attached to the pins.

With that out of the way, you have a bit of a mish-mash of parts on your door. I'm seeing pins from Leigh/Monarch, Slimfold, and Benchmark brand doors, but that's fine as long as they've been working for you. "If it ain't broke," and all that.

Below is a list of parts I see in your last batch of photos starting from the left:

  1. 21-001
  2. 21-042
  3. 21-054
  4. Top 21-206
  5. Below 21-205
  6. 21-062

Please let me know if you have any questions!
