Concave sliding mirror doors roller track

Question

Hello,

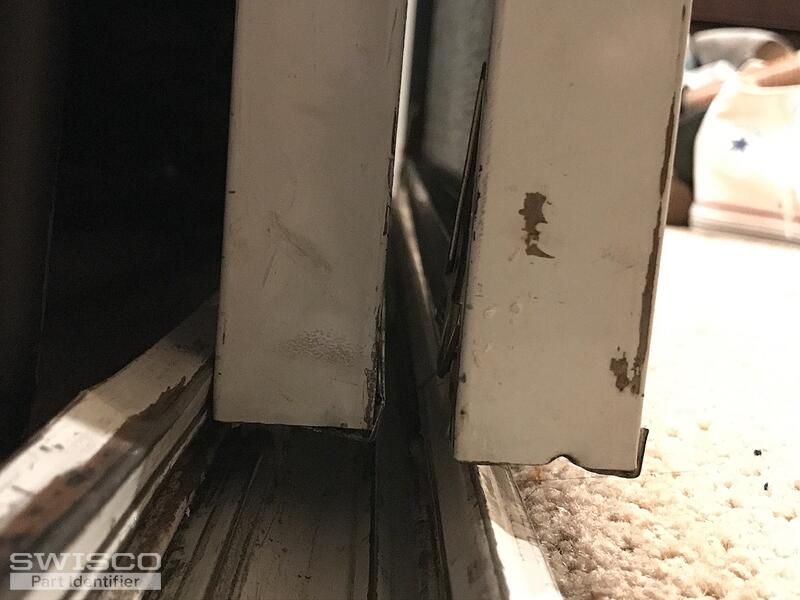

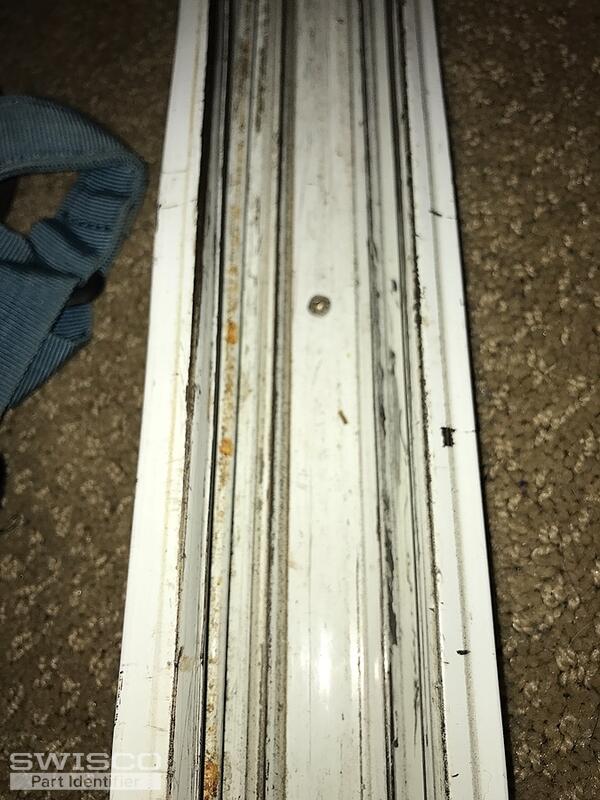

This is a concave bottom roller track for two large sliding mirror doors. The length is @ 94 inches. The issue I am having is due to age and wear, the track is warped/worn to the point that the rollers jump the track at times. I also thought it odd that one door rolls on the outer lip of the track l, while the other door rolls on an interior ridge of the track, but a swisco rep on the phone said that was normal and an indication of an old track style.

I'd like help selecting a replacement track and suggestions on how to secure the track to the floor. This original track is screwed to a a strip of wood that is glued to the concrete of the bedroom closet. I already bought concave rollers that fit the door, but a suggested roller would be helpful as well. Thank you!

Casey · Accepted Answer

Hello,

We sell one type of track that can accommodate concave wheels, which would be our 23-270. While it may look different at first glance it should work totally fine since your rollers don't appear to be that old and will be fully compatible with this updated design.

Unfortunately, we do not carry this track in 94" lengths, so you'd have to use two of the 23-270 tracks and butt them together. The excess can be cut off using a hacksaw such as our 75-023A. Thanks for posting!
