Lawson Block and Tackle Replacement for Channel Balance

Quick Learner from Florida
Oct 22, 2023 9:13 am

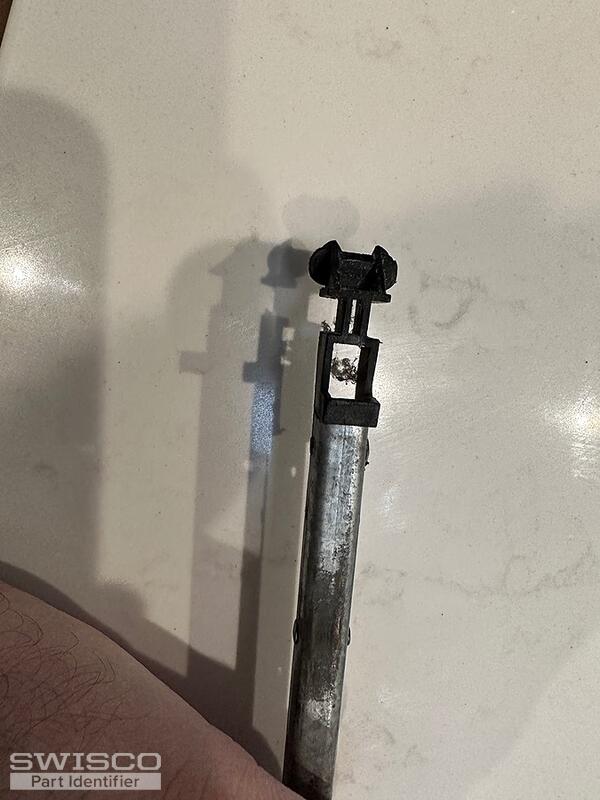

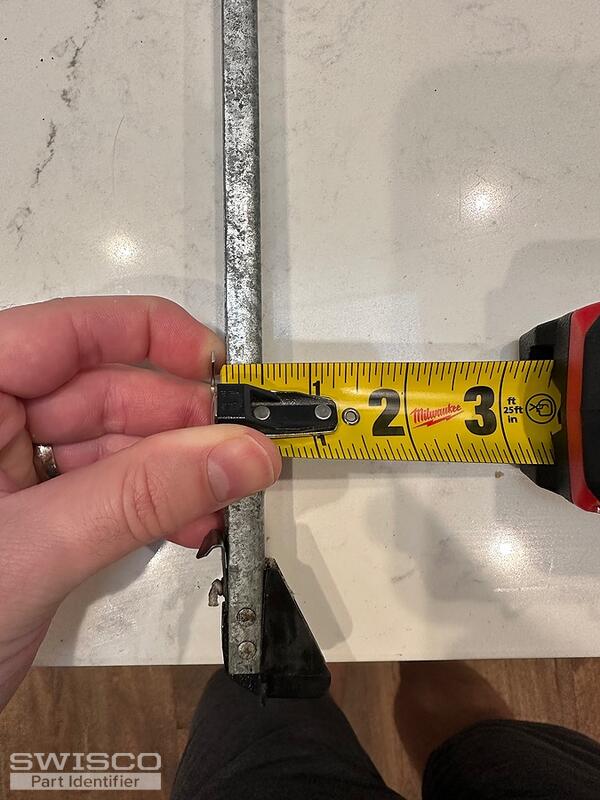

I am looking to identify the following lawson block and tackle replacement park. Appears to be 29 inch length, 1/2 inch channel depth. Winged hardware. Stamped 28B Q
IMG_5023 IMG_5024 IMG_5019 IMG_5016 IMG_5021
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
Oct 25, 2023 9:48 am
SWISCO
EXPERT

Thanks for reaching out to us. We can help with this but it will have to be a custom order due to the configuration. To outline it for you, we will use a 29" long metal channel that measures 3/8" wide with the 19-044 top and 15-234 shoe as well as the 28B stamp. A pair of balances with this stamp will support a sash weighing 8 to 14 pounds. Can you just tell me how many balances you're looking to order? I can draft a price quote from there.

Quick Learner from Florida
Oct 25, 2023 10:53 am
I will be looking to order 2 of these for the time being. I have other windows that are smaller that I have yet to remove/identify, but I assume the stamp will be a lesser weight.
Quick Learner from Florida
Oct 25, 2023 6:39 pm
I confirmed the sash weighs 19.4lbs.
Emily
Emily from SWISCO
Oct 26, 2023 3:39 pm
SWISCO
EXPERT

Thank you for confirming! In that case, we'll use the 28C stamp instead for a sash weighing 14 to 20 pounds. I'll email you a purchase link that you can use to place an order on our website. Let me know if you have any questions!
