Confirm channel balance PN

Home Owner from Bend, OR

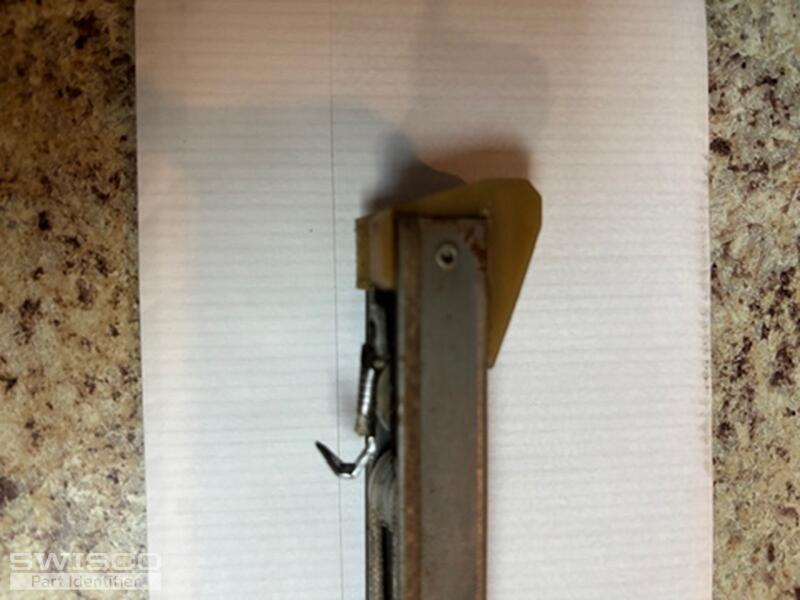

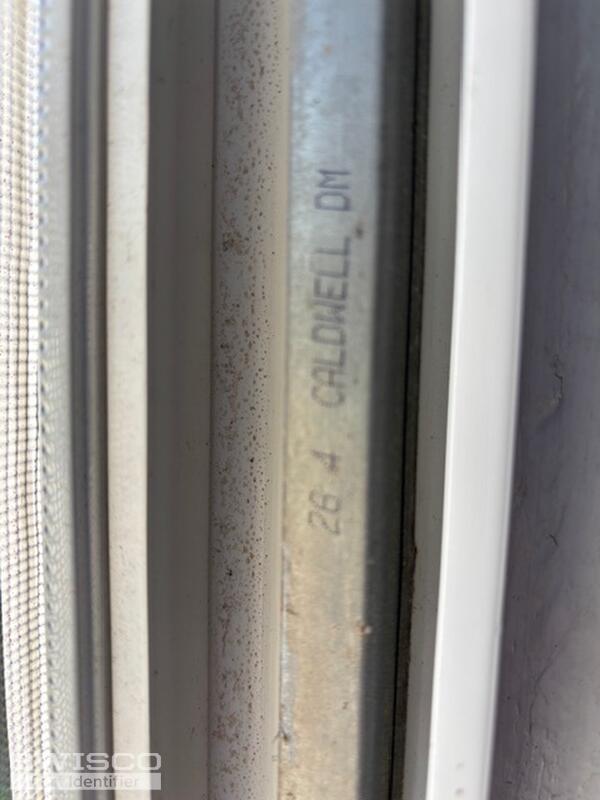

The length of the channel is 27".  OEM marking is 26-4 Caldwell DM.  Picture 3, one of the tabs is broken off the guide.
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! I've narrowed your balances down to a few possibilities. To confirm the correct one, I'll need to see a photo of the bracket connecting the spring and the string in the center of the balance.

Please feel free to reach out with any questions!

Home Owner from Bend, OR

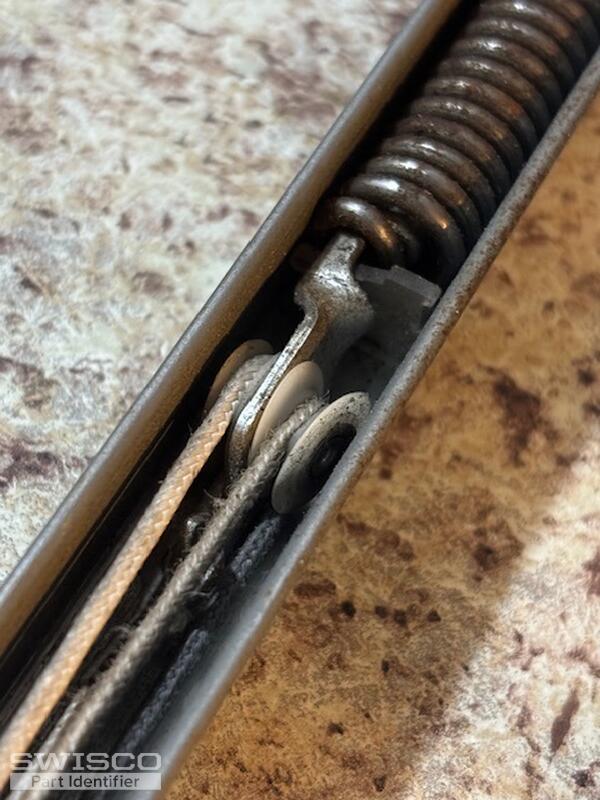

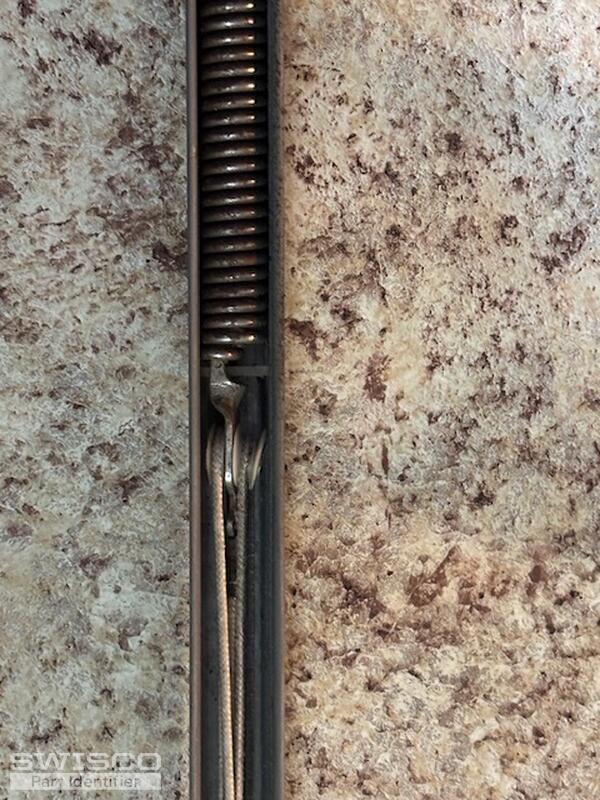

Thank you.  Images attached.
2 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Your balances can be replacement by either the S380-27 or the S385-27. You'll need to measure the shoe depth to determine the correct balance.

I believe you'll need the 2640 stamp option but it would be a good idea to make sure the sash weight falls between 19 to 26lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
