Where do you connect the 32-053 corner glides?

Start a new Discussion

Quick Learner from oakhurst,nj

Feb 2, 2011 11:42 am

I don't know how or where to connect the corner glides for this kit ...PLEASE HELP...

5 Replies

Tom from SWISCO

Feb 2, 2011 2:47 pm

Hello! This is a good question. You want to install the corner glides in the bottom corners of the drawer opening. I recommend using either a staple gun or wire nails; whichever method is easier for you.

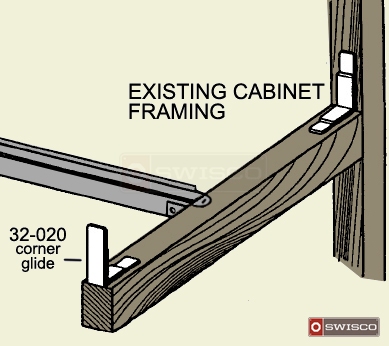

Please see the diagram below for a better idea of where these install.

Quick Learner

Feb 2, 2011 3:11 pm

Thank you for such a fast reply...very helpful

Tom from SWISCO

Feb 3, 2011 8:18 am

You're quite welcome! Please let us know if you have any additional questions.

Handy Person from Texas

Sep 6, 2017 11:24 pm

Double-sided adhesive tape such as 3M's VHB (Very High Bond)in 1/32" thickness works great for this too. Clean the underside of the plastic with IPA (isopropyl alcohol), wipe dry with a clean white lin free cloth and apply the tape. Press in place and you're done.
