Constant Force Tape Balance

A purchasing agent from Manchester says:
Hi, looking to for a coil balance. The bottom part is 1 15/32" in height, 13/16" thick, 1 1/4" wide. Spring holder is 1 9/16" in height, 7/8" thick, and 1 1/4" wide. The coil is 3/4" wide.
Thumbnail of the uploaded file named 49FCD8E4-7853-40CE-B23D-EC19DB1F7428.jpeg
Thumbnail of the uploaded file named ADA653E0-5794-4207-892F-1FCB69BB3136.jpeg
Thumbnail of the uploaded file named 04175B17-CDEA-4BC0-80D7-3F300E964256.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thank you very much for waiting while we looked into this! We don't have an exact match for this shoe but we suggest you consider the 15-192 and Series 170 coil springs. Can you tell us if there's a stamped code on the band of the coil spring? If not, we will need you to weigh the window sash on a scale and tell us the precise weight.

You will also need the 15-185 cover and 15-157 balance drum. You might also need to replace the pivot bar to fit in the 15-192 shoe. Can you remove an undamaged version from the sash and show us some photos?

A purchasing agent from Manchester says:

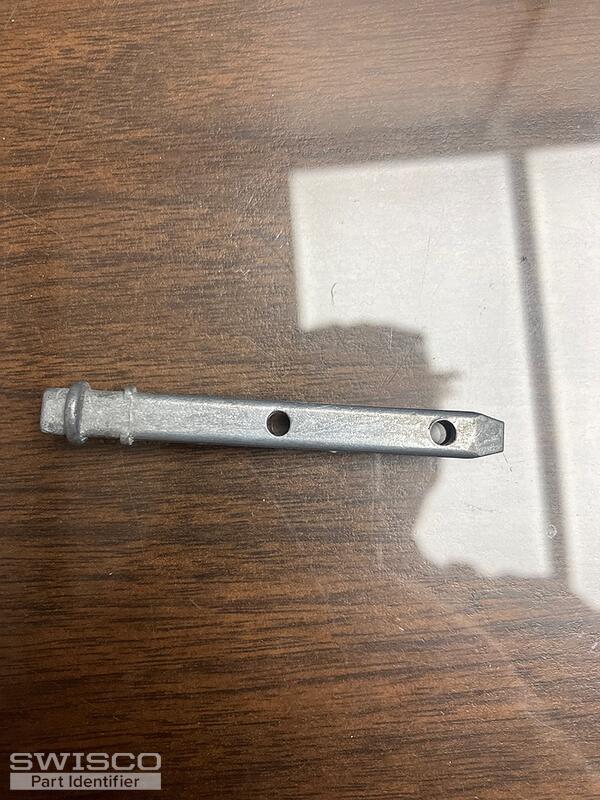

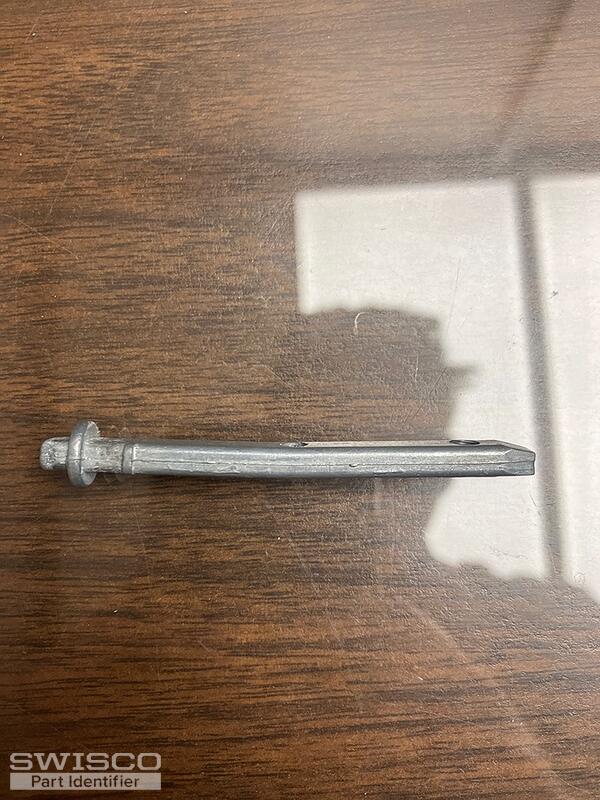

Hi Paul, the stamp on the coils say "10" and here are photos of the pivot bars.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Paul
Paul from SWISCO responded:

Thanks for getting back to me! Please allow us a little more time to research this. I will reach back out to you the moment we have more information.

Profile picture of Paul
Paul from SWISCO responded:

The #10 on the coil spring indicates 10 pounds, so you can use two S170-405 5-pound springs.

So for one sash, you will need two 15-192 pivot shoes, four S170-405, four 15-185 covers, four 15-157 balance drums, and two 26-415 pivot pins to replace the original pins.
