Constant force balance quick tilt and pivot bar

A quick learner from Virginia says:
Can I buy the whole ass'y for the balance ? If not what about the pivot lock shoe? Also do you have a match for the pivot bar ?
Thumbnail of the uploaded file named E37EF851-4591-4EF8-939E-AA78B668F762.jpeg
Thumbnail of the uploaded file named 5CE1D1EB-1865-4DBB-9C2E-E1E0EA0E66F3.jpeg
Thumbnail of the uploaded file named BFC0B6F1-CBD2-4D8B-A7CB-AA775FA43191.jpeg

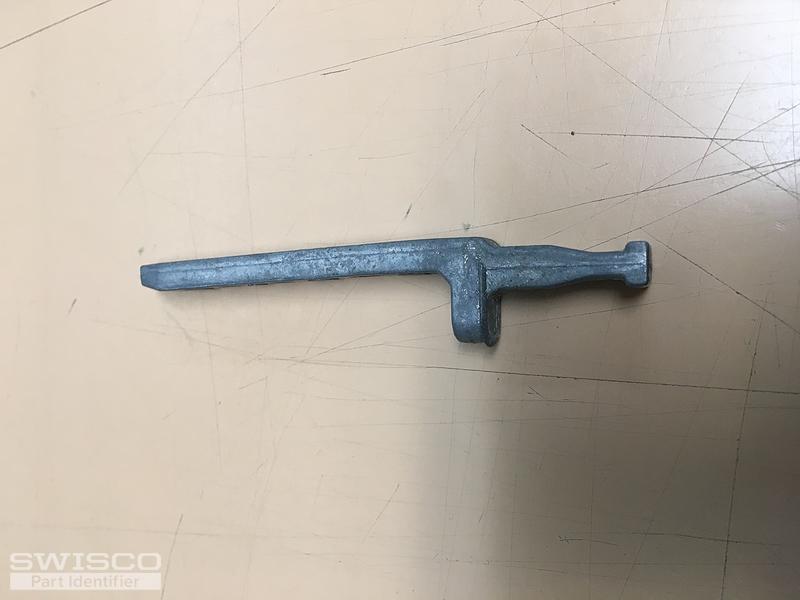

Thumbnail of the uploaded file named BADB755C-5D1E-4BD4-B38E-F0932D8CB160.jpeg

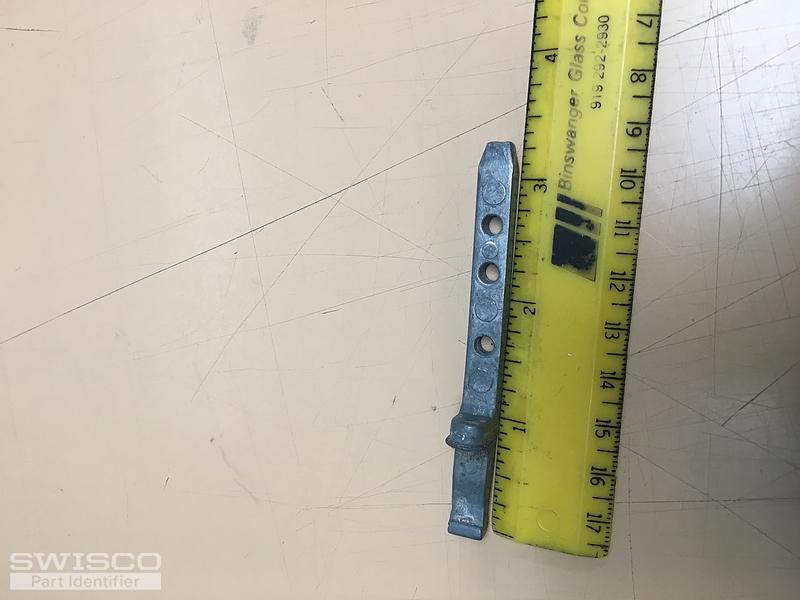

Thumbnail of the uploaded file named CA5686E2-511B-4781-BC55-FF446A351636.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello! We don't sell this balance assembly as one complete unit, but we do sell each part separately. To be honest, it only looks like you need the shoe, which matches our 15-192. You should be able to reuse the rest.

The pivot bar isn't made anymore, but our 26-336 can be used as a substitute. There's on more important thing to note, though: you have an old Simonton balance system, whereas our 15-192 is for Certainteed. That means that the new style cam won't work with either our 26-336 pivot bar or even your old pivot bar. You need to hold onto your old metal cam and reuse it.

A quick learner from Massachusetts says:
Looking for plastic lock that prevents the pivot bar from rotating within the window.
CODE: SPM
SPEC: NFRC
SERIES: 1800 DH
MST: 3050
Photos attached

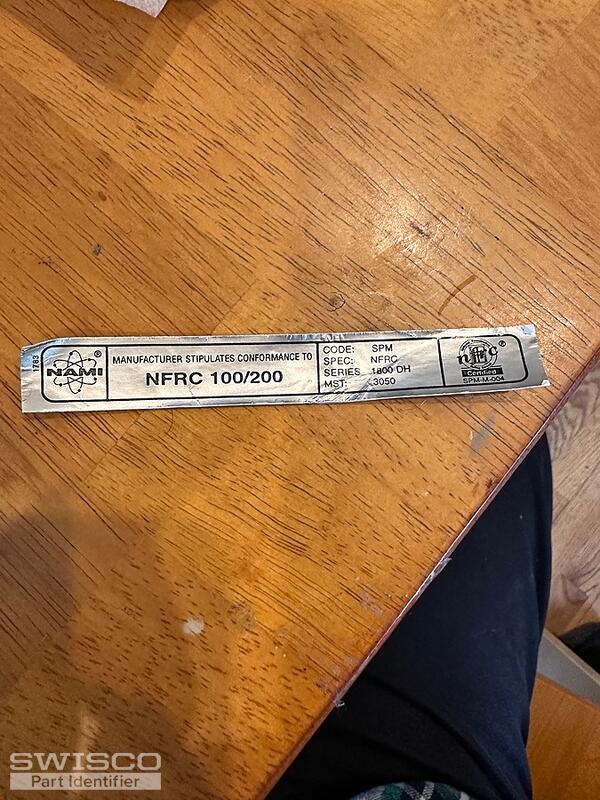

Thumbnail of the uploaded file named 888F91CE-D49E-48D4-801C-5EEFA692216F.jpeg

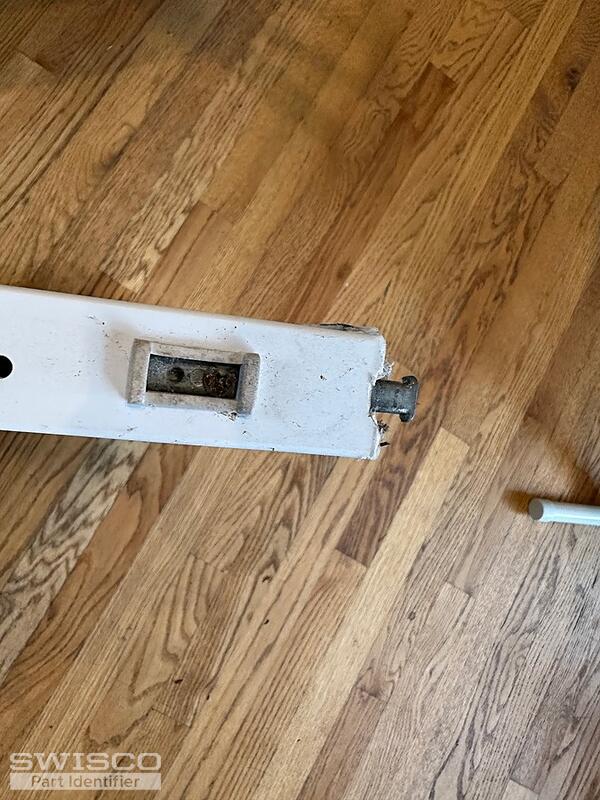

Thumbnail of the uploaded file named 613B0AE6-4797-4D76-B3E8-A69D9A136089.jpeg

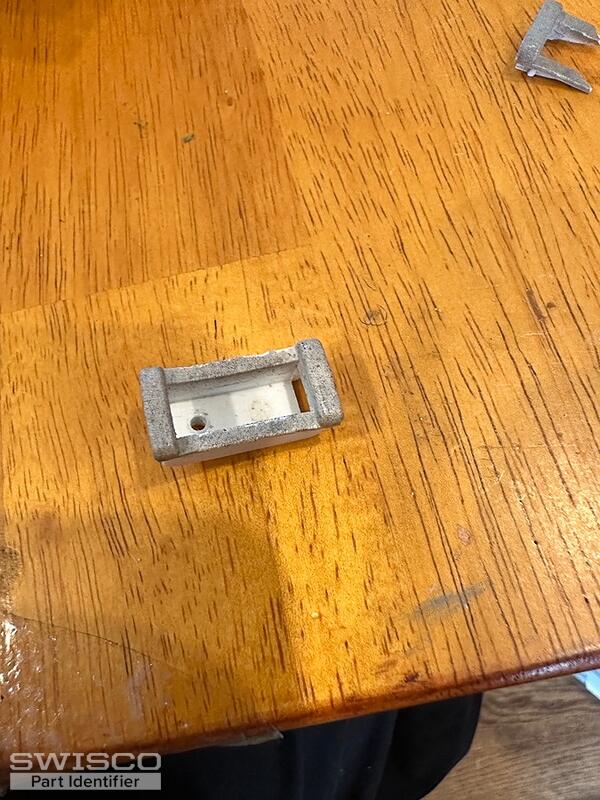

Thumbnail of the uploaded file named EF9C6C05-E89B-42CF-A36F-2C90F595168B.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Sure, that looks like a good match for our 26-451. Look it over and see what you think!

Alternate view of 26-451
Alternate view of 26-451

Alternate view of 26-451
Alternate view of 26-451
