Constant force coil balance

A home owner from Sharpsville, PA says:
August 22, 2015
I am unable to find any other markings or numbers on this balance other than the number 840 on the spring.
Would like to replace the entire mechanism. We bpught this older home about a year ago and can't identify the window manufacturer. Says Therm-O-Loc on the latch if that means anything. Any help would be greatly appreciated. George O'Leary

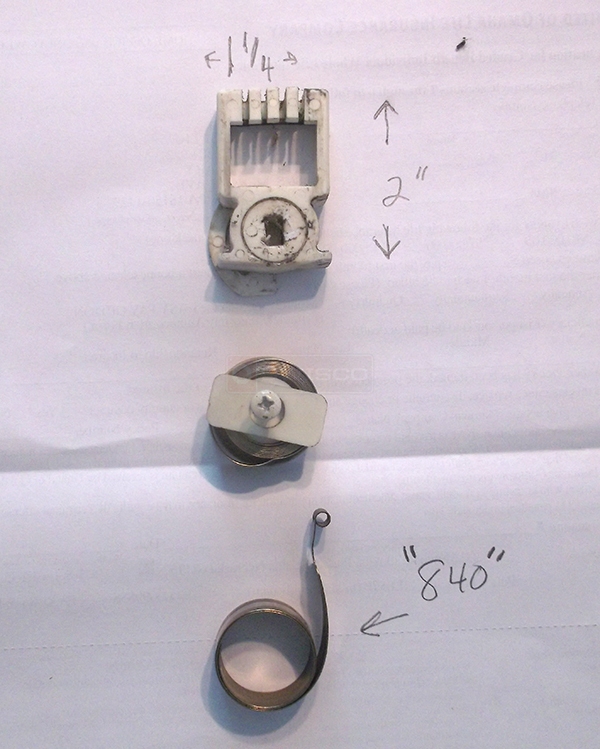

User submitted a photo of a coil balance.
A home owner from Sharpsville, PA says:
August 24, 2015
My best guess is that I should order 2 each of parts 15-140, 15-143, 15-144, 15-145 and S150-8 (window weight is 16 lbs) to replace both balances. Does that sound correct?
Thanks.
Profile picture of Tom
Tom from SWISCO responded:
August 25, 2015
I agree with the parts you picked out, yes. Just triple check to make sure your dimensions are all the same.
Coil Balance Shoe
Coil Balance Shoe
15-140
$3.07
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
8 lb Series 150 Coil Balance
8 lb Series 150 Coil Balance
S150-8
$6.72
