Home Owner from Sun City
Mar 13, 2023 8:28 am

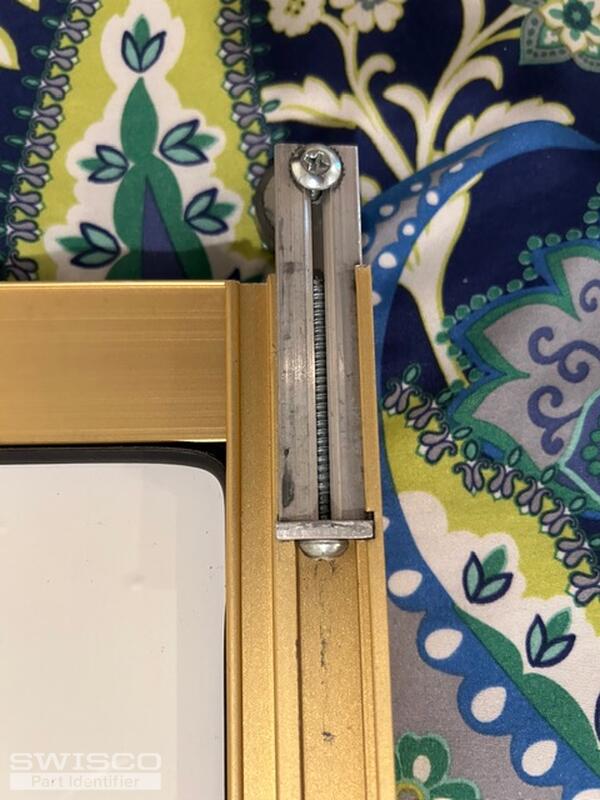

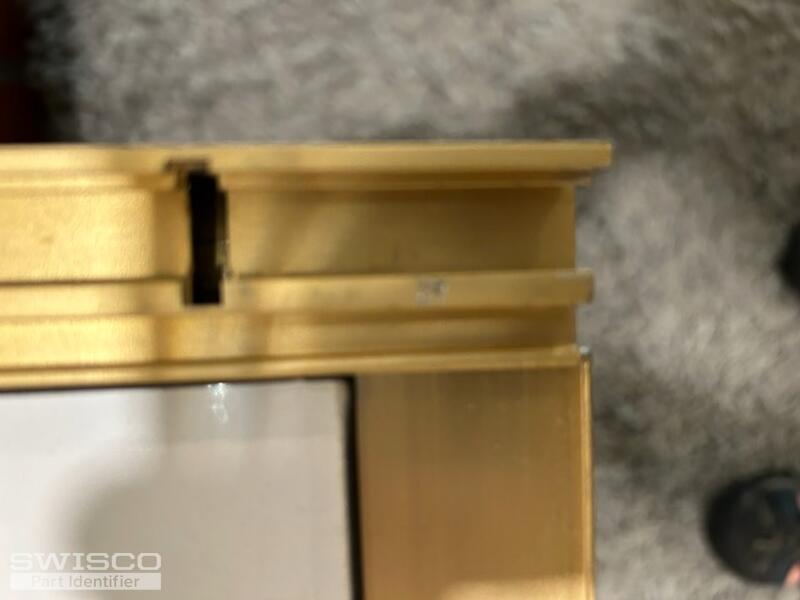

Hi, I bought your item 23-234, Bypass mirror door bottom guides. The width is perfect but they have no way of staying extended below the bottom of the door so they do not seem to work. Is there another product or a way to keep them extended into the guide strip? Here are photos of the top and bottom of my mirrored bypass doors. The top has a screw lock setup for the rollers.
image1 (1) image0
2 user uploaded images
1 Replies
+ Add a Comment
Dave Sr.
Dave Sr. from SWISCO
Mar 14, 2023 1:04 pm
SWISCO
EXPERT

Hello,

I believe that the 23-234 bottom guide clips into the track and free floats inside the door rail. It does not necessarily need to be fixed inside the door frame since you would use the top roller to adjust the height of the door. Thanks for posting.

+ Add a Comment
Products and resources found in this discussion
Bypass Mirror Door Bottom Guide
Bypass Mirror Door Bottom Guide
23-234
$0.95
Closet Roller, 7/8" Dia
Closet Roller, 7/8" Dia
23-016
$31.45
