Contact SWISCO

Home Owner from USA
Nov 13, 2023 1:26 pm

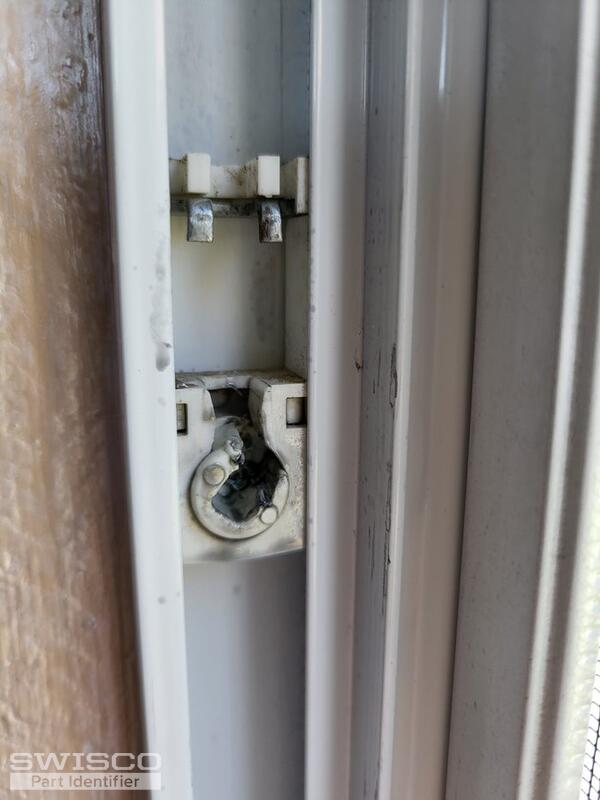

Need to replace pivot shoes. Can I send a photo to identify the proper part??

Shoe is removed.

2" TALL

1" WIDE

½ " DEEP

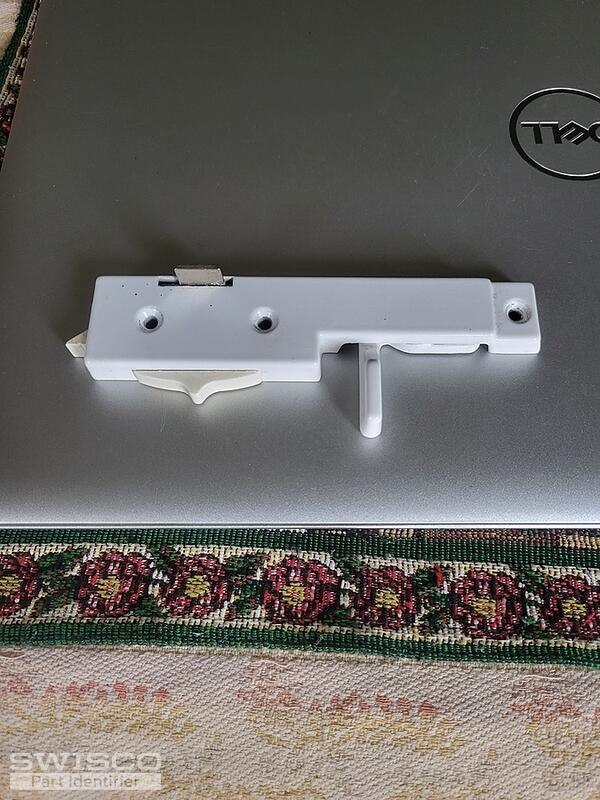

Also included photos of the locking mechanism on top of the window. Can you indicate the replacement for this part.

Thanks for your help.

John

20231113_081755 (1) 20231113_081913 20231113_081854 20231113_081755 32406da2-7f54-4262-87a2-068b774c2be1
5 user uploaded images
1 Replies
+ Add a Comment
Lauren
Lauren from SWISCO
Nov 14, 2023 11:06 am
SWISCO
EXPERT

Hi John, thank you for posting,

Unfortunately the company that made your balance system, Unique Balance Company went out of business. We believe the 15-179 pivot shoe, 15/16" wide by 9/16" thick should work as a replacement for your window. Please review to see what you think!

Alternate image for 15-179
Alternate image for 15-179

For the tilt latches, please review the 26-431P pair. Let us know if you have any additional questions!

Dimensions for 26-431p
Dimensions for 26-431p
