Converting my Cox Mirror Bipass bottom guide to a roller

Home Owner from Sandy, Utah
I have 3 sets of Mirror Bipass doors that I would like to convert to bottom roller bearing.

If that is not practical, then would would at least like to replace the bottom guides.

Any advice?
Mirror door hardware
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

It looks like your original bottom guide is a match for our 23-021. However, I'm afraid they don't make a convex roller with the same housing. You could maybe try the 23-285 convex wheel assembly, but it would require you to drill holes and attach with screws. Even then I cannot guarantee it will work. We almost always recommend sticking with the hardware you have.

Reply to Thread

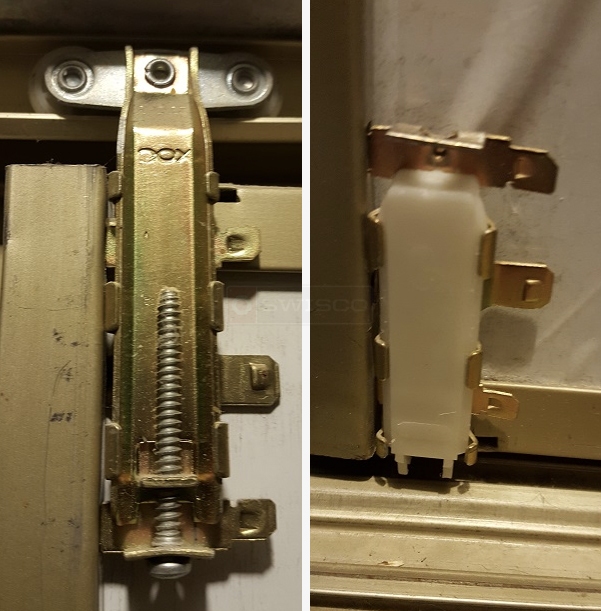

Current Photos:
