Cool spring replacement

A quick learner from Astoria says:
October 29, 2022

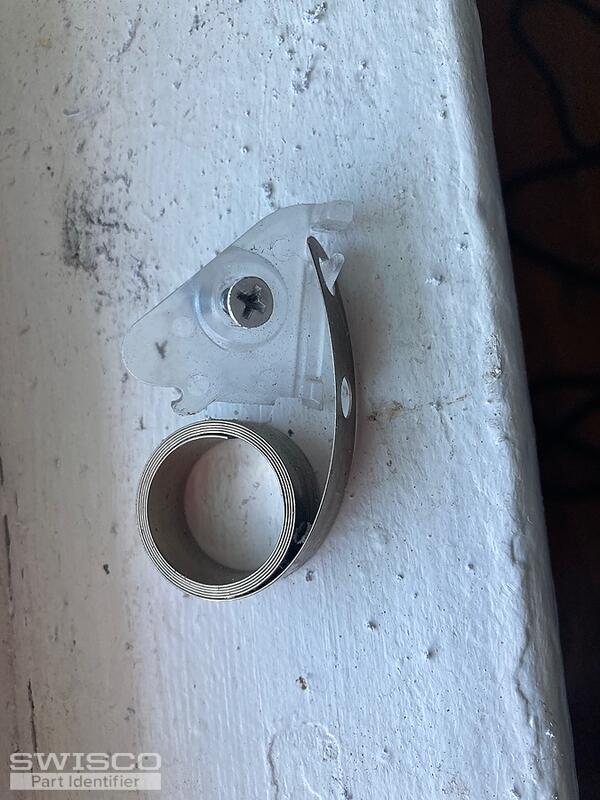

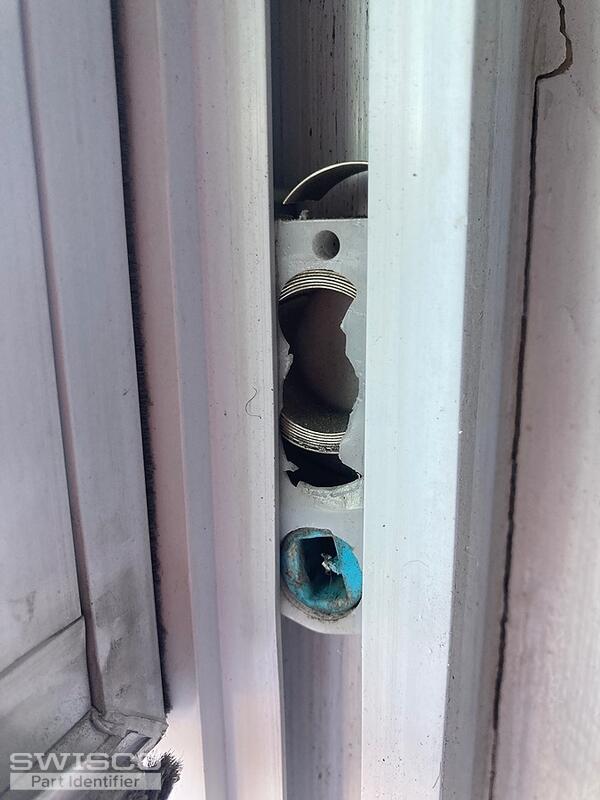

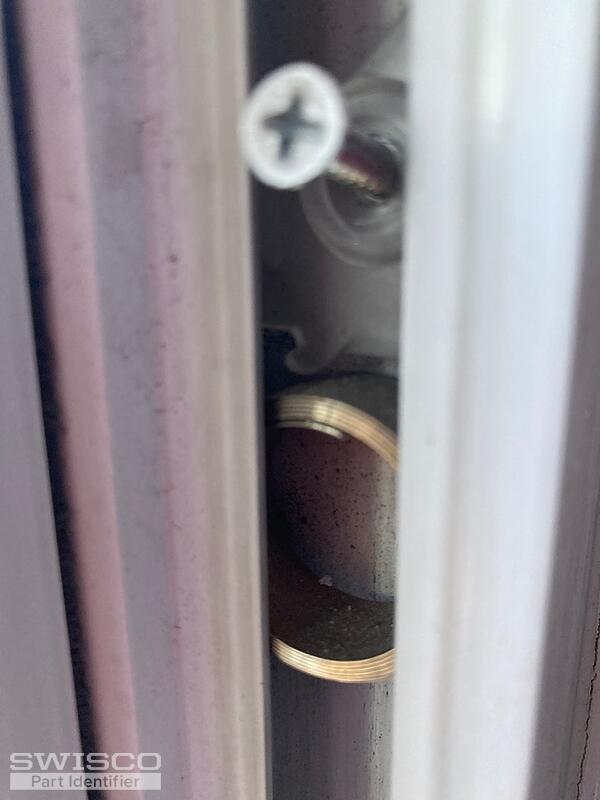

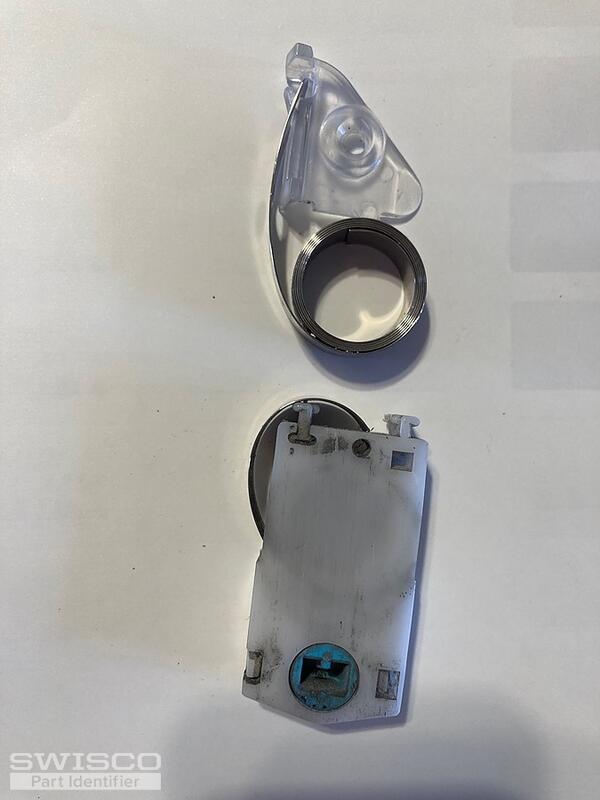

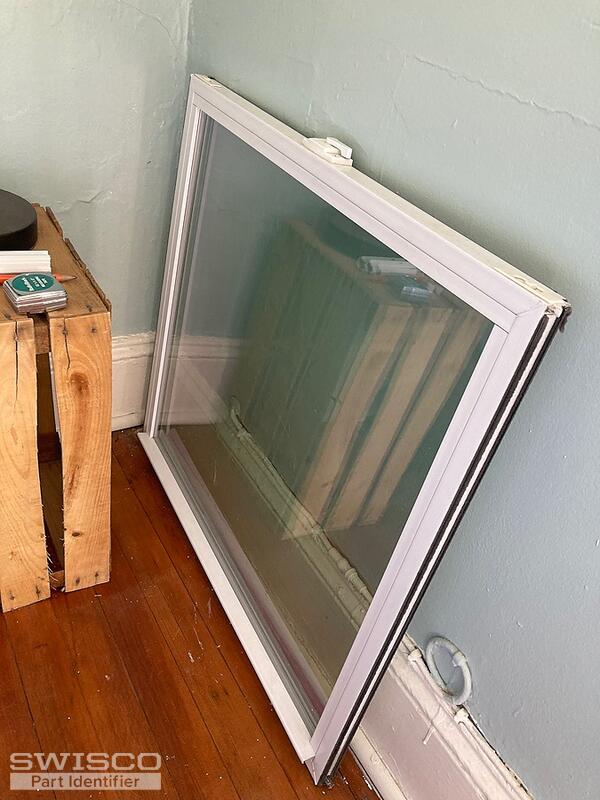

Hi there, I'm looking for the coil spring mechanism for a bottom double hung vinyl sash.

Thank you
Thumbnail of the uploaded file named EACFCE27-7729-4A57-85D1-F47EC7E53FAC.jpeg
Thumbnail of the uploaded file named 9E549723-0400-4A1A-9BD6-09A9A3AC0D6F.jpeg
Thumbnail of the uploaded file named A195969B-99BE-47D1-9D41-828577CF8414.jpeg
Thumbnail of the uploaded file named FC11D629-DEC1-426B-9656-9477B57BD933.jpeg
Thumbnail of the uploaded file named 7DC175E3-1FB1-431B-8429-DE170C60CD85.jpeg
Profile picture of Tom
Tom from SWISCO responded:
November 3, 2022

Hello! Please see our 15-087 pivot carrier, Series 180 coil spring, and 16-031 mounting bracket. I am very confident that these are the parts you want but look them over and tell me if you had any questions.

A quick learner from Astoria says:
November 4, 2022
This is great, thank you!

If my sash weighs 13.5 lbs , should I get the 7 lbs coils?

I can try to find any markings on these parts.
Profile picture of Tom
Tom from SWISCO responded:
November 4, 2022

Yes, I think that would be perfectly fine. That will give you a total of 14 pounds of support, which is a little over your sash weight, but I don't think that extra half pound will make a difference.

%alt%
Coil Housing Pivot
15-087
$5.97
%alt%
7 lbs Series 180 Coil Balance
S180-7
$4.97
%alt%
Mounting Bracket
16-031
$0.90
