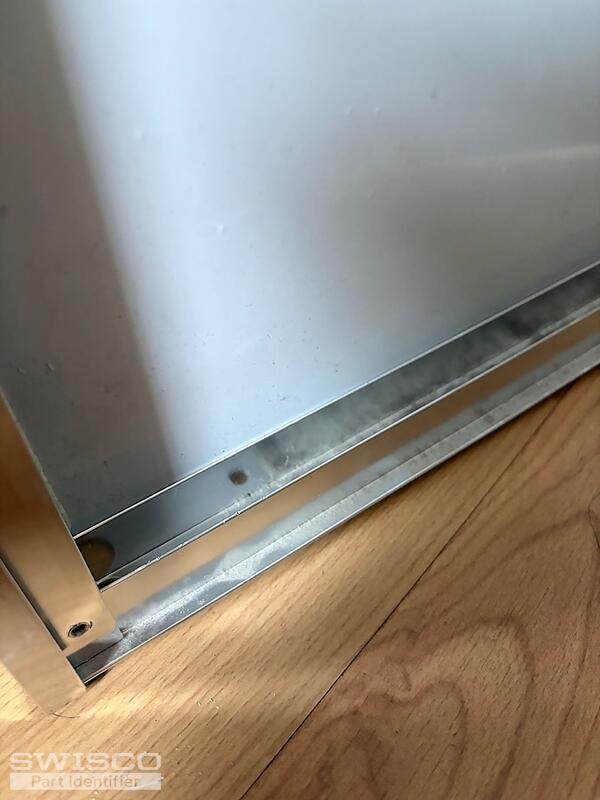

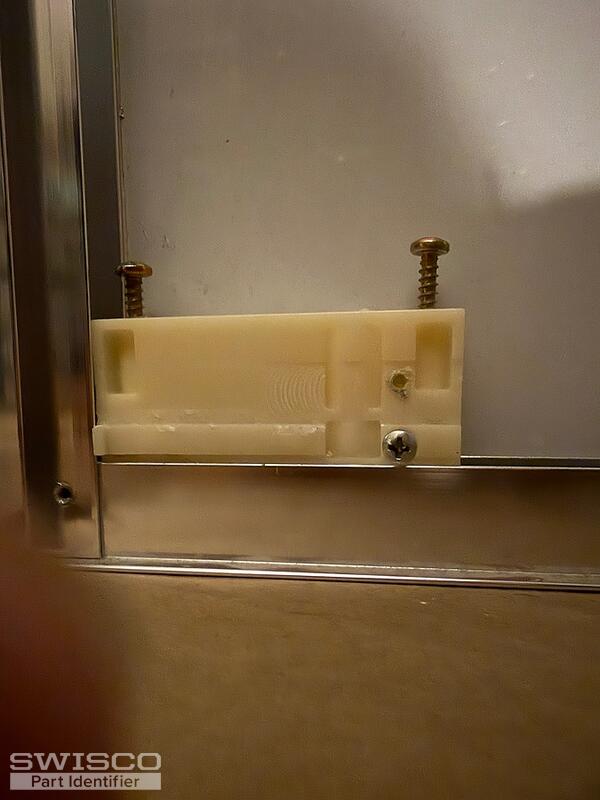

Hello:My right bifold door came out of its track. I had the guys from Building Maintenance come to my apt to fix it. They took out the corner block as shown (#1 nd #2) and said it was cracked. They wanted me tind a replacement part so I went to 4 brick-and-mortar stores, but no luck. Then I found your comppany and it looks like you might carry an identical part. They said if I have the part, they can come and re-install the door back to its track.The only markings I see on the corner block is "26-001" on one side, and a "Gx" on the other. I tried to look for "26-001" but it's just a Release Lever. Corner Block # 23-407 looks more like it.Can you help me with this problem?Thanks,Florina
Corner Block on bifold door
Quick Learner from Chinatown, NYC
Aug 10, 2026 9:00 am
5 user uploaded images
4 Replies
Casey from SWISCO
Aug 13, 2026 2:19 pm
Hello,
The codes on your original product do not cross-reference to our inventory, but I agree that the 23-407 looks like a match. The determining factor would be how the specifications below compare to your part. Thanks for posting!
Dimensions for 23-407
Quick Learner from New York
Aug 25, 2026 1:39 pm

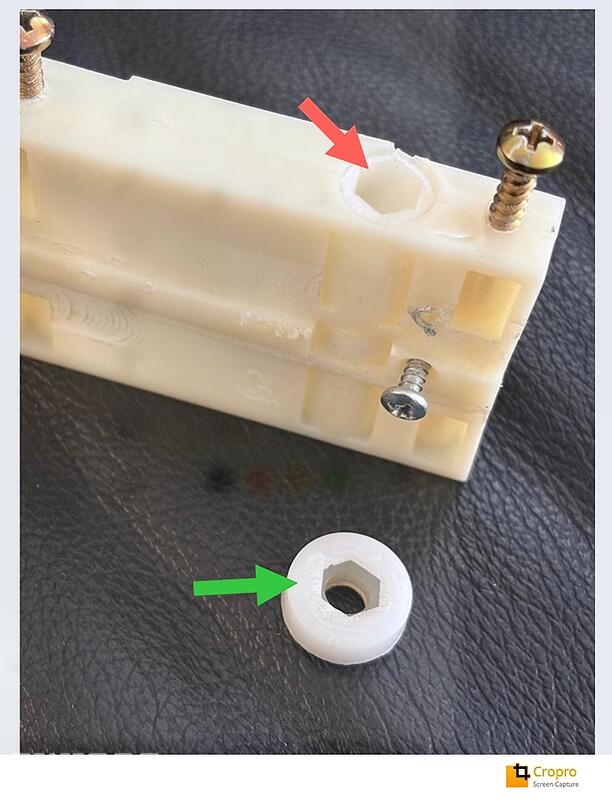

So I got the corner block #23-407, but the maintenance guys could not install my bifold door because the part does not have the white part where [7/16" diameter] is pointing. I am attaching a photo of my original part. The red arrow points to the white part whch runs inside the hole indicated by the 7/16" diameter. The green arrow is a part that the guys say is attached to the white part.The guys need those white parts to install the door.Any help would be appreciated.
1 user uploaded image
Paul from SWISCO
Aug 25, 2026 4:12 pm
The 23-407 corner block that Casey suggested is correct. It looks like the broken part may be part of the 21-092 adjusting pin, which goes in the 23-181 pivot block. You'll need to check an intact assembly to confirm whether the specifications below match the original hardware.
Dimensions for 21-092
Dimensions for 22-181
