Corner Key 3/8" x 3/8"

Quick Learner from Indiana
When disassembling the screen window in our storm door, I accidentally drilled all of the way through a couple of the corner keys. Screen window has miter/angle corners. Storm door is an old milled aluminum one. Want to put the window back together, so hoping to buy replacement corner keys.

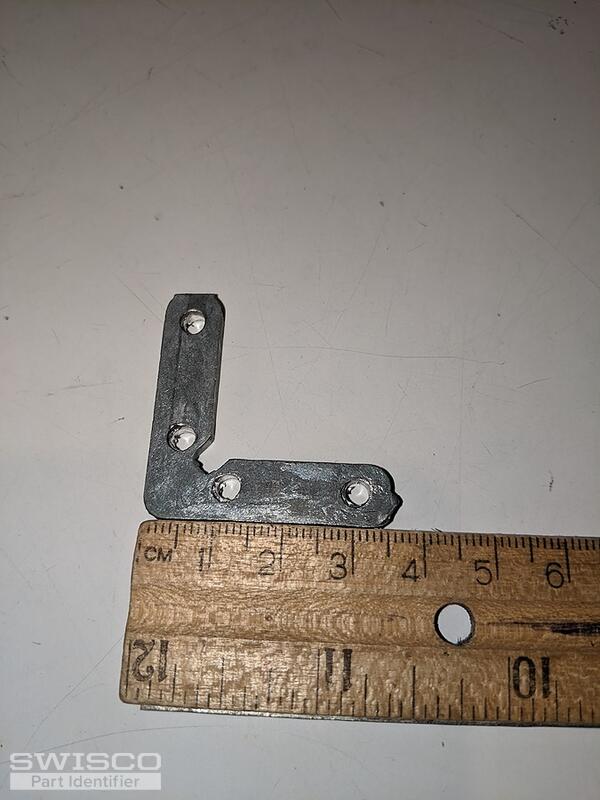

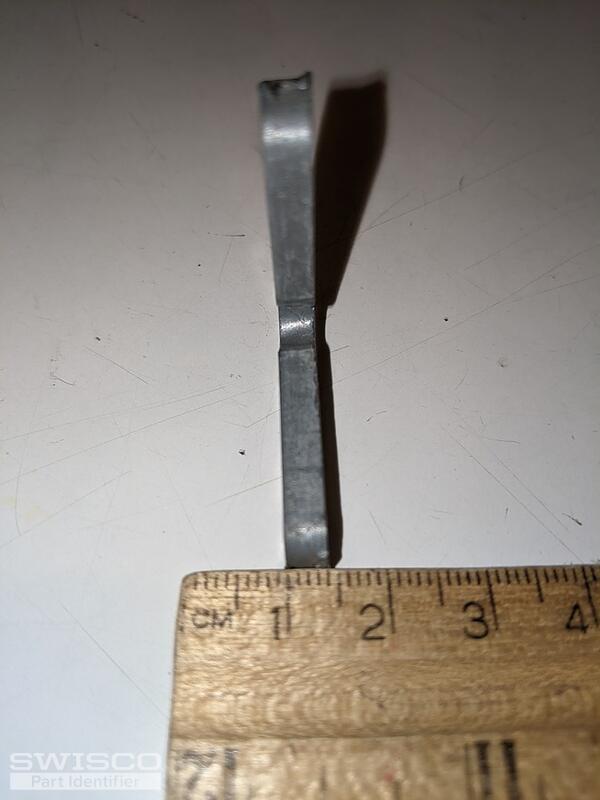

Hopefully the pictures are clear--I'm not so sure of my terminology--but the key measurements are 4mm (1/8") thick, each "arm" of the "L" is about 9mm to 10mm (3/8") high, and the longest measurement, from the outside corner to each edge, is 35mm long (1 3/8")

Hope you can help! Many thanks! -Jack
5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for your patience while we looked into this. I've had trouble finding a corner that matches your specifications. The problem is that width you gave at 3/8". That's very large for this kind of thing.

The closest I could find was our 95-129. The style is a little different, but that shouldn't be that big of a deal. More importantly, the thickness is 3/16", which is a little larger than yours. The width is the same at 3/8".

I think this may be our best match. Look it over and see if you think you could get it to work despite the difference in thickness and design.

Dimensions for 95-129
Dimensions for 95-129
