Corner key

Start a new Discussion

Quick Learner from Laingsburg, Michigan

Jun 12, 2025 5:15 pm

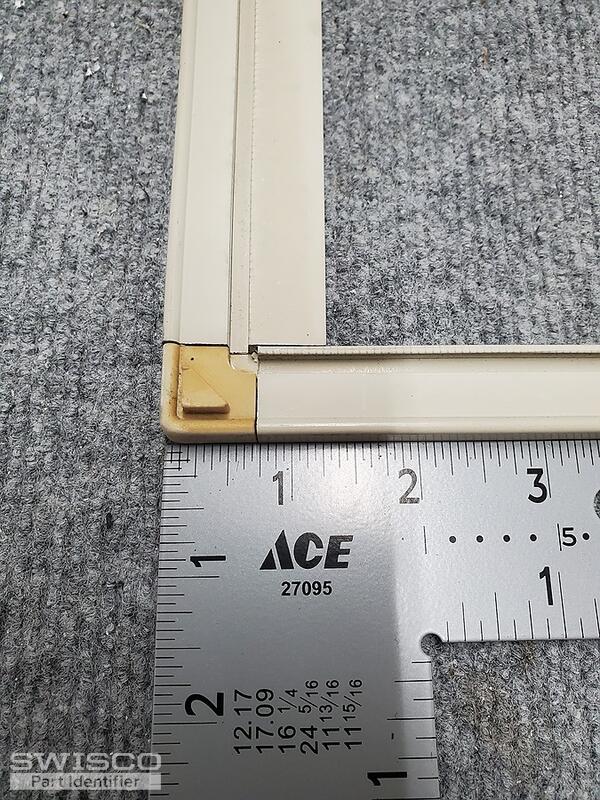

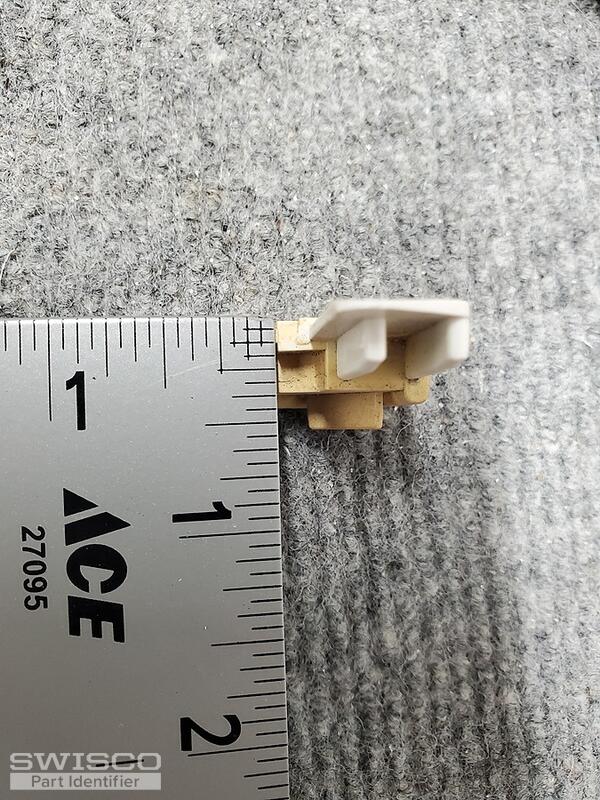

I am looking for corner keys for a screen frame with and without the stop.

4 user uploaded images

5 Replies

Tom from SWISCO

Jun 17, 2025 1:04 pm

I'm afraid I can't quite make out the precise dimensions of your corner based on these photos. Looking at your last picture, I see that the width of the base is 3/4", but can you tell me the thickness? It would be ideal if you wrote the dimensions out for me to review, to ensure there's no confusion. Determining precise measurements from photos is very difficult. Thanks!

Quick Learner from Laingsburg, Michigan

Jun 19, 2025 1:08 pm

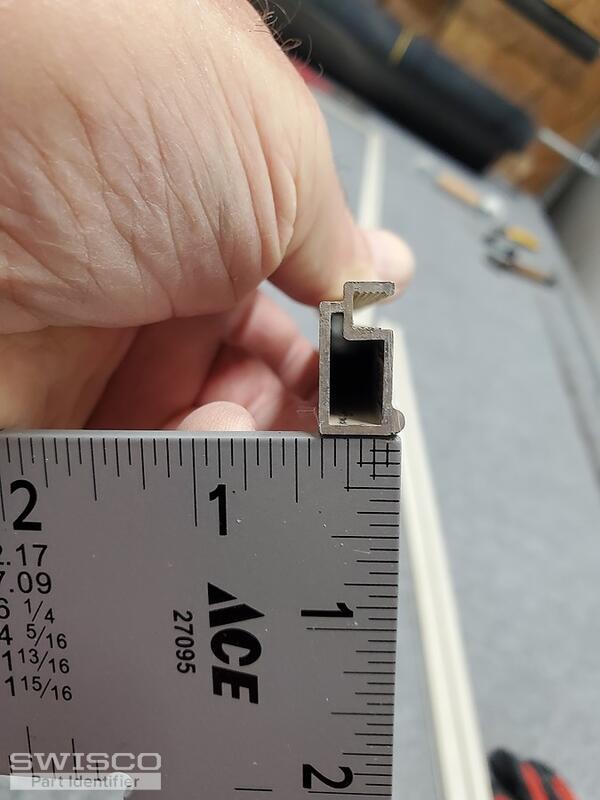

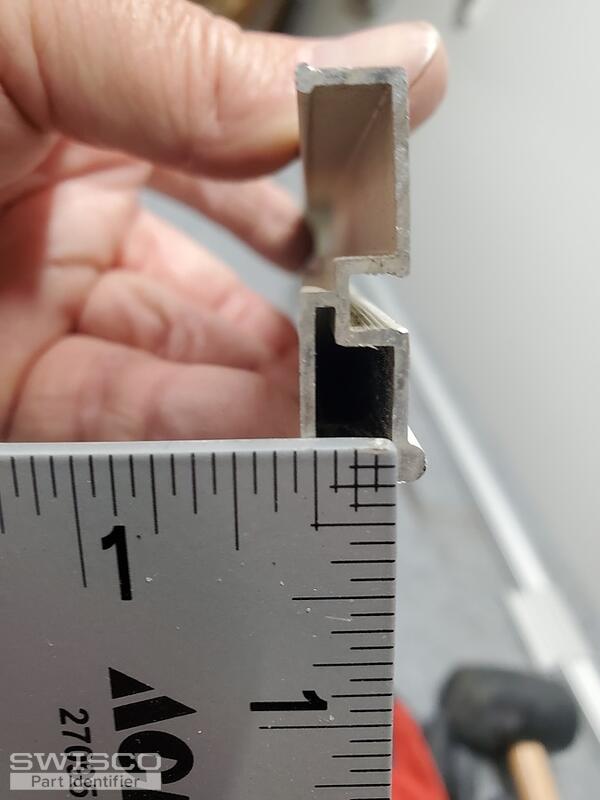

Thanks for the reply Tom. Sorry for not giving dimensions. I believe the thickness is 3/8 inch but the inside dimension of the frame is only 1/4 inch. It is excruded aluminum frame. All the corners I have been able to find are for the rolled aluminum frame. Thanks

3 user uploaded images

Tom from SWISCO

Jun 23, 2025 8:24 am

Thanks for getting back to us, and for your patience during this busy season. We are still investigating this and will get back to you as soon as we have more information one way or the other.

Dave Sr. from SWISCO

Jun 23, 2025 12:32 pm

Hey there, maybe I can help. I'm not sure that the exact corners you're looking for are still available. These haven't been made in a long time. Take a look at the two used in more typical 3/8" frames, the 95-275 and 95-266, as well as two used in a 5/16" frame, our 95-031 and 95-274. You might be better off using the 95-266 and the 95-275 used for 3/8" framing and file down the corner legs to fit. I would only recommend making the attempt if you're handy, or know someone who is, as I expect it to take some trial and error to get right.
