Correct balance for Nuair window

A handy person from Ocala Fl says:
Correct balance for Nuair window
Thumbnail of the uploaded file named 0F3E7819-0778-4F13-9C84-CB96B633B0DA.jpeg
Thumbnail of the uploaded file named 974608A2-1DD7-45AE-8A6F-AC402060E7DC.jpeg
Thumbnail of the uploaded file named B81BB35F-FF25-4417-AC26-4C831E862EBA.jpeg

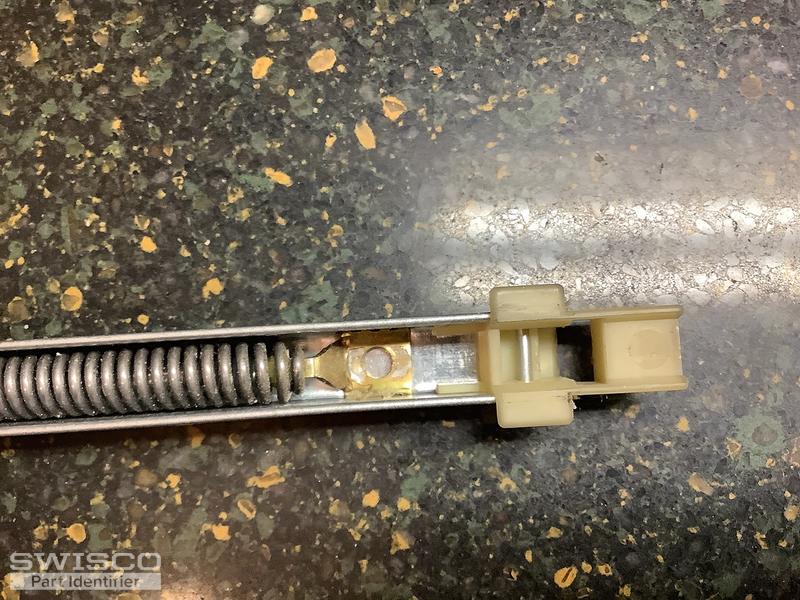

Thumbnail of the uploaded file named B28FF33A-7CF8-4702-85D8-C5D8D0A739EE.jpeg

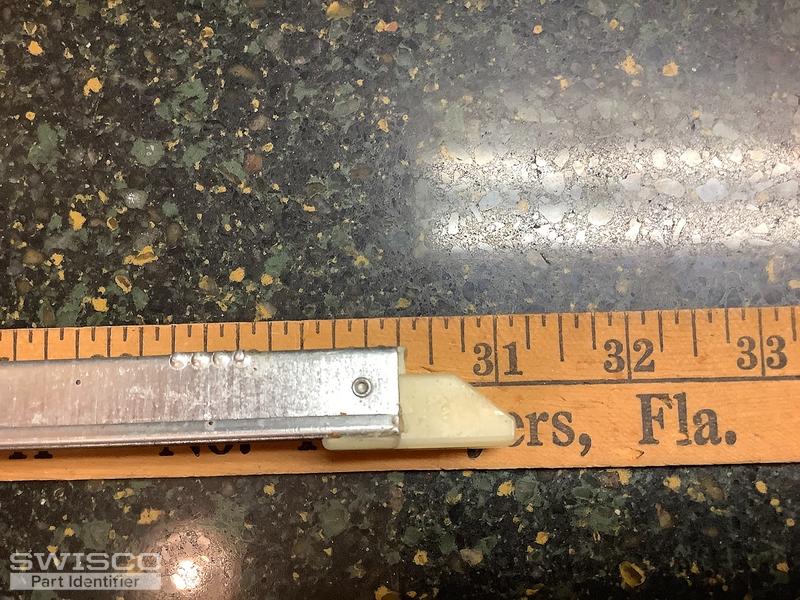

Thumbnail of the uploaded file named 12250254-995E-4DAA-B9CC-56F5CB027015.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for your patience with us. Take a look at both our S380-30 and S385-30 channel balance. These balances look exactly the same, with the only difference being the depth measurement of the bottom balance shoe. For the Series 380, the depth measurement is 1" and for the Series 385 is 1-3/32". Measure the depth of your bottom shoe, like in the diagram below, to determine which of the two is a better match. Whichever one chosen will go with the 2950 option.


Close up of the S385 balance bottom.
