Correct lock for my particular application

Home Owner from Greenwood Ms

Jun 7, 2017 12:02 pm

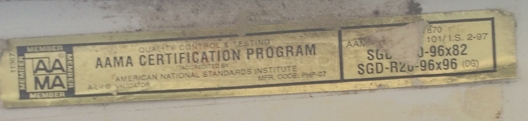

I have found one label on this door that has a manufacture date of 02/97 my numbers are SGD-R20-96X96(DG) manufacture code PHP

Correct lock for my particular application

5 Replies

Tom from SWISCO

Jun 8, 2017 12:09 pm

Thanks for posting! I'm afraid this sticker does not tell us what you have. Can you show me a picture of the lock in question? Knowing your dimensions would also be a big help.

Home Owner from Greenwood

Jun 9, 2017 9:27 am

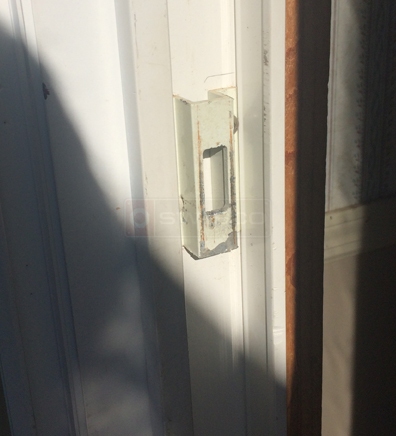

There is no lock on the door. I believe there is a receiver on the door jamb. Please review these pictures and advise asap. Thank you Johnny.

Home Owner from Greenwood ms

Jun 9, 2017 12:14 pm

The existing drill holes in patio door are 3 15/16 inches apart please reply ASAP.

Tom from SWISCO

Jun 12, 2017 12:50 pm

Ah, I see. Are you missing the mortise lock and the handle set? The hole spacing you gave is more common for a handle set, not an interior lock. See our 82-069 for a possible match. There are many others that have this same hole spacing, but this is a good place to start. As for the mortise lock, 82-218 is another popular option, but you would need to make sure its size would fit in the space provided in your door.
