Counter balance replacement

Question

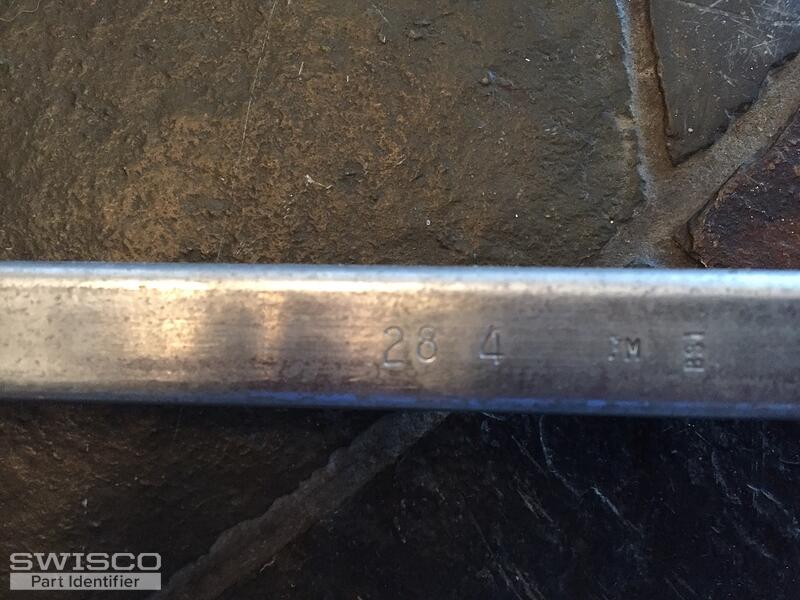

Hi. Sorry I took this out before taking pictures. It is a Jordan window. The spring is stretched out so I think I need a new one. Looks to measure 1/12 inch. Just the silver bar not including the plastic ends looks to be 28 3/4 long. The stamp says 28 4. Please let me know if you you need any other info. Thank you so much for letting me know what I need to order from you. Sherri

Hi. By enlarging your pictures and clicking on the one that most resembles my channel balance I found measurements for the shoe. So mine is either the 390 or 351. I?m thinking S390-29 as the depth of the shoe is just over one inch but not quite 1 1/8. Thoughts?

Tom · Accepted Answer

Thanks for contacting us! Can you confirm that the metal channel is 28-3/4" long? That's pretty strange for this style. Based on your stamp it should be 29" long, but if it is 28-3/4" then it may need to be custom made.

As for the Series, I agree that our Series 390 is a good bet. If the depth of the shoe is over 1", then it was likely 1-1/8" originally and wore down over time.

Please just confirm the length. If it is 28-3/4", we will look into whether this is a special size. I would also like you to tell me how many you need, in case it does have to be specially made.
