Cover plate for 82-243

A home owner from Ocean City, MD says:
November 4, 2021
Good afternoon,

Looks like I need part number "82-243" due to size and being on the coast. I also will need the cover plate to match. I think the handle part number "82-086" is correct as well. I need a new latch catcher too.

Please see attached pictures. Let me know what I need to order. Thanks,
Thumbnail of the uploaded file named 20211104_150059.jpg
Thumbnail of the uploaded file named 20211104_150046.jpg
Thumbnail of the uploaded file named 20211104_150053.jpg

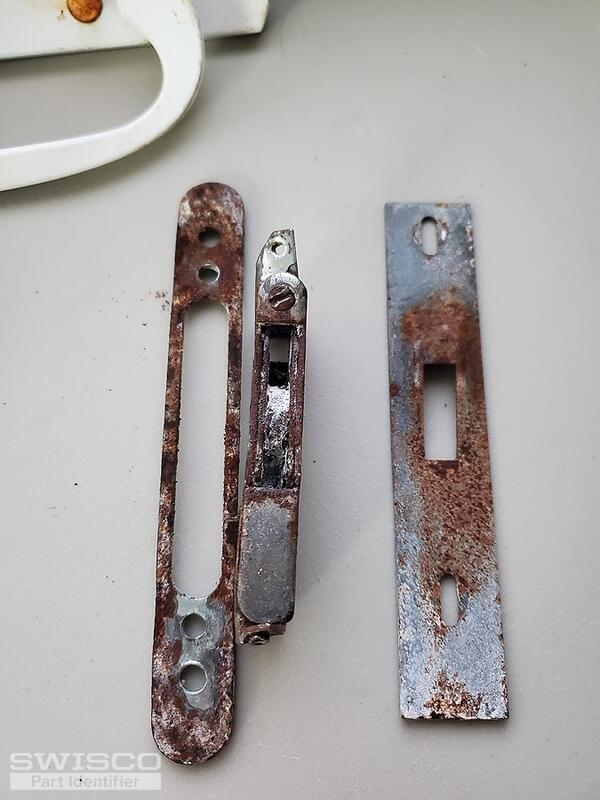

Thumbnail of the uploaded file named 20211104_150225.jpg
Profile picture of Bob
Bob from SWISCO responded:
November 8, 2021

The 82-226 comes with the same lock body and the face plate, but I am afraid there is no stainless steel version. I apologize for the inconvenience. The 82-086 does work with this mortise lock, but make sure the positioning for where the thumb lever and key lock would be are offset towards the bottom screw hole for the handle set, and not perfectly centered between the mounting holes. Finally, for an accompanying keeper see our 89-020 or 89-021.
A home owner from Ocean City, MD says:
November 10, 2021
Thanks Bob,

I am ordering the pieces now and will upload installed photos when I am done.

Also, do you think they will make a stainless steel version? The coast line is rough on non-stainless steel products.

Thanks for the help.
Profile picture of Bob
Bob from SWISCO responded:
November 10, 2021

Unfortunately I have no knowledge of a version of the 82-226 that is stainless steel. I certainly understand your dilemma, and it's unfortunate only the lock body comes with the option, with the 82-243. I apologize for the inconvenience.
A home owner from Ocean City, MD says:
November 11, 2021
After photos, almost 100%

Pretty easy installation, just one screw snapped in the sleeve screw. Can I order these separate? The hardest thing was snapping off the key tails. The keeper is too thick, so I had reinstall the old one. Pictures attached.

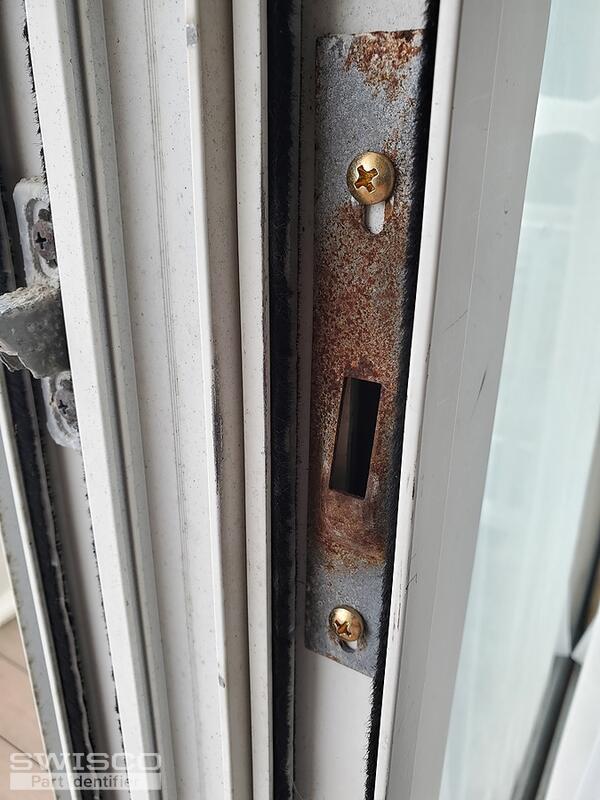

Thumbnail of the uploaded file named 20211111_134513.jpg

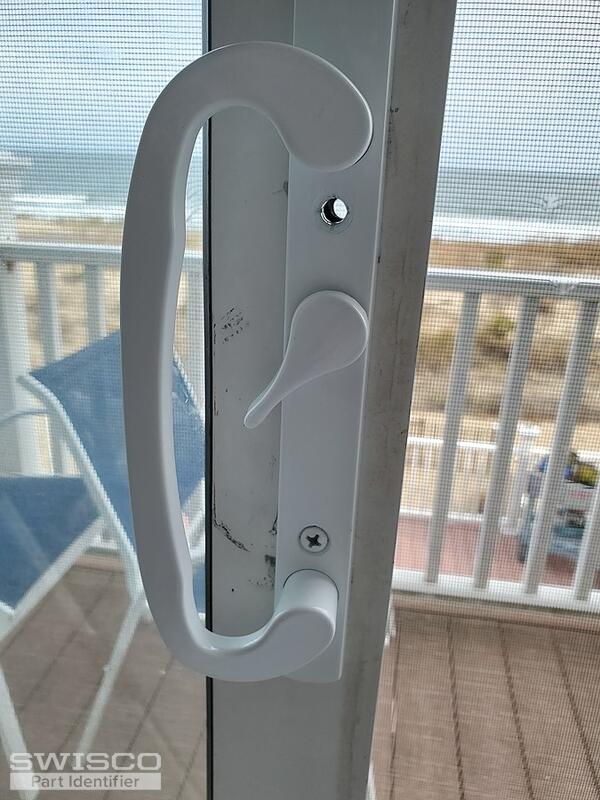

Thumbnail of the uploaded file named 20211111_134532.jpg

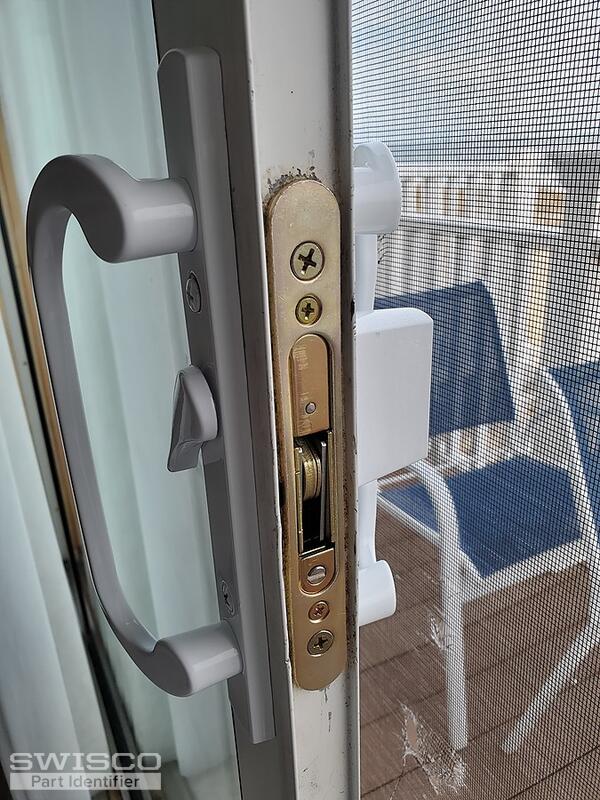

Thumbnail of the uploaded file named 20211111_134523.jpg

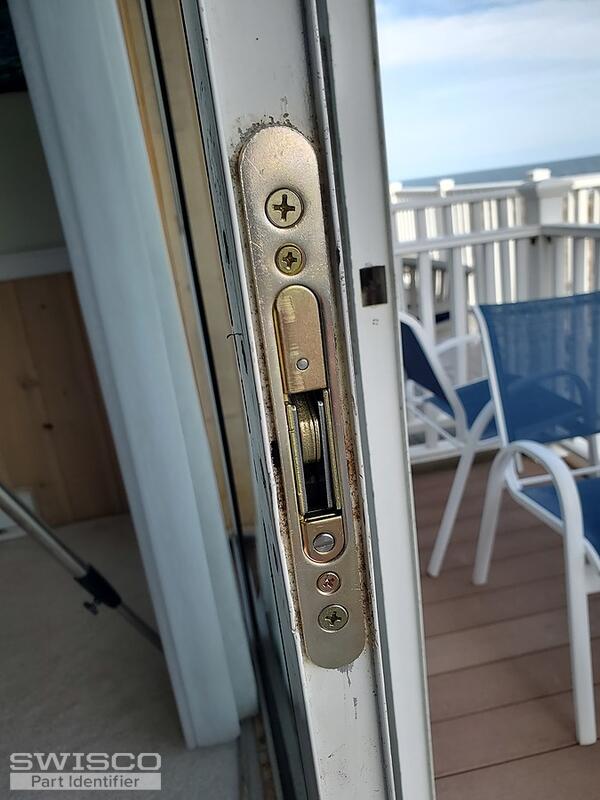

Thumbnail of the uploaded file named 20211111_130738.jpg

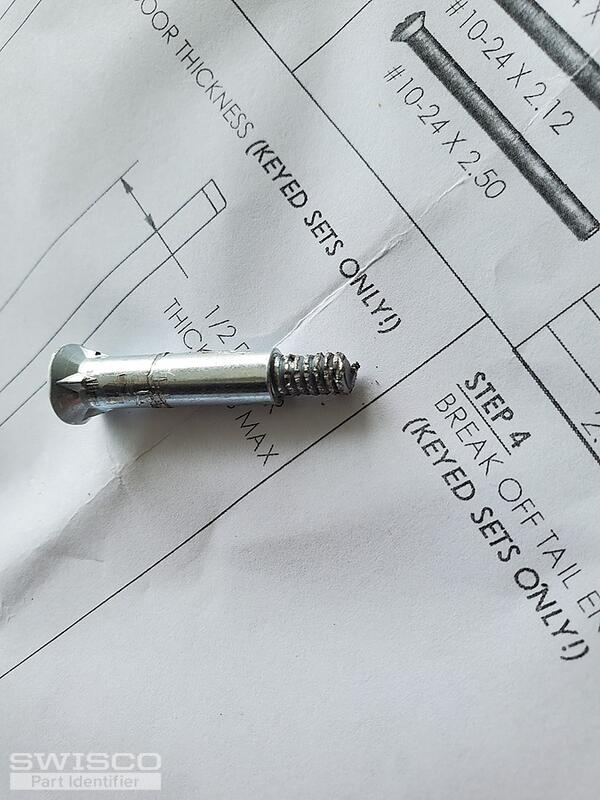

Thumbnail of the uploaded file named 20211111_134426.jpg
Profile picture of Bob
Bob from SWISCO responded:
November 12, 2021

Thanks for getting back to us. We have some spare screws from a returned handle set on hand, and my customer service manager is sending these out to you ASAP. Let me know if you have any other questions.
A home owner from Ocean City, MD says:
November 12, 2021
Thanks a lot,

Swisco most certainly a top notch company!
