Hello,

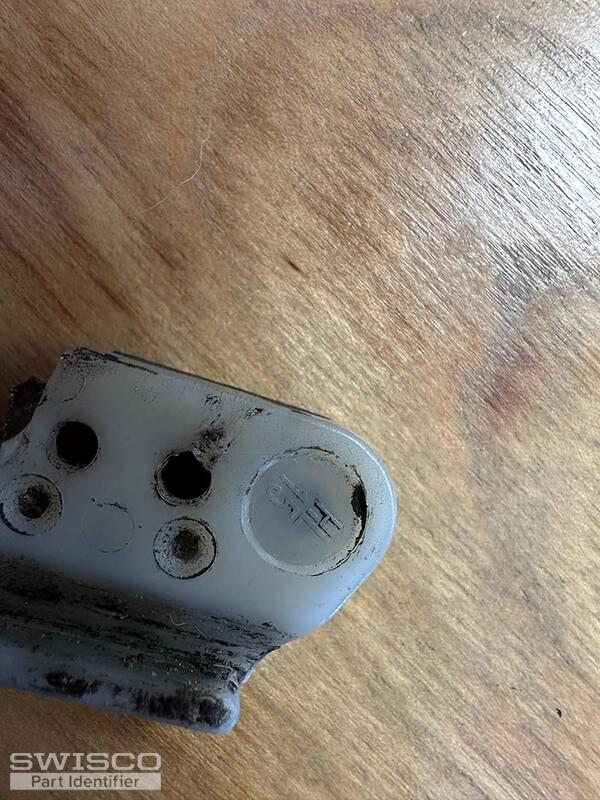

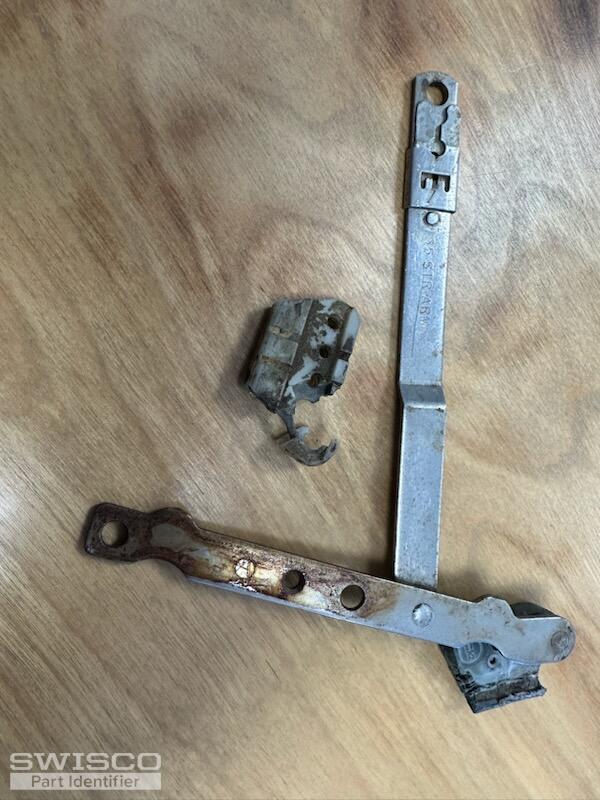

Our customer reached out to us to help with his window - the arm and hinge are broken but we cannot identify what they are to order them. It looks like the window is an Anderson crank window. Any help would be appreciated! thank you!
Crack window arm and hinge
Quick Learner from Portland, ME
Dec 8, 2023 11:46 am
5 user uploaded images
6 Replies
Tom from SWISCO
Dec 11, 2023 1:02 pm
Hello! This looks like an older Andersen window, but we should still be able to help.
To start, see our 39-094 and 39-150 casement window operators. One of these should match your original, but it will ultimately come down to the size of the arm. Review the dimensions in each case to verify the better option.
Dimensions for 39-094
Dimensions for 39-150
As for the hinge, the assembly currently on your window is discontinued and no longer something we can provide. That said, I've heard from many customers in the past that our 36-048 is a capable replacement. The trick is that it requires drilling some new holes, and it's necessary to replace the top and bottom at the same time. Otherwise it should work well. The video below will show you how these work.
Quick Learner from Portland, ME
Dec 11, 2023 3:08 pm
Hey Tom,
Thank you for getting back to me.

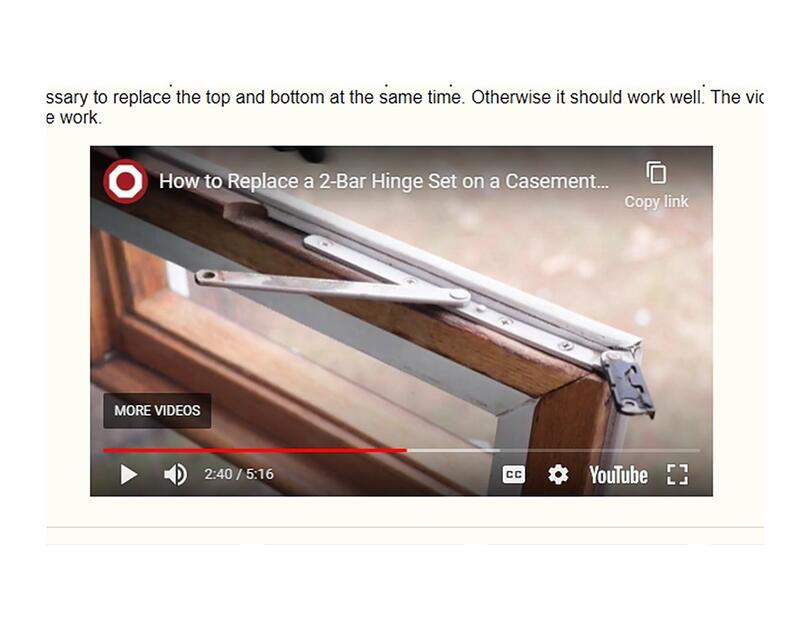

I watched the video that was linked to your response (see the link below) and noticed that at the 2 minute 40 second mark it shows the part I need to replace.
https://youtu.be/nN0A1OU13V4
The parts you sent me for the arm, aren't what we need to replace, I add the photos that show the arm for you to see the entire window.
https://youtu.be/nN0A1OU13V4 - 2 minutes and 40 seconds. Thank you, Julia
Thank you for getting back to me.
I watched the video that was linked to your response (see the link below) and noticed that at the 2 minute 40 second mark it shows the part I need to replace.
https://youtu.be/nN0A1OU13V4
The parts you sent me for the arm, aren't what we need to replace, I add the photos that show the arm for you to see the entire window.
https://youtu.be/nN0A1OU13V4 - 2 minutes and 40 seconds. Thank you, Julia
1 user uploaded image
Tom from SWISCO
Dec 12, 2023 11:18 am
The part shown in your screenshot is part of the 36-048 hinge assembly. Unfortunately, the individual parts of the hinge are not available separately. It is also important to replace the top and bottom hinges at the same time to ensure that the sash is properly supported.
Quick Learner from Portland, ME
Dec 12, 2023 1:16 pm
Thank you - do you have links to the top and bottom hinges as well?
Julia
Julia
Casey from SWISCO
Dec 12, 2023 2:05 pm
The 36-048 comes with a set of hinges, one for the top and one for the bottom of the sash.
