Cracked side part that covers spring

Start a new Discussion

Quick Learner from Milan, indiana

Apr 10, 2019 2:23 pm

I need some help finding the replacement part for this window please

5 user uploaded images

4 Replies

Tom from SWISCO

Apr 11, 2019 2:24 pm

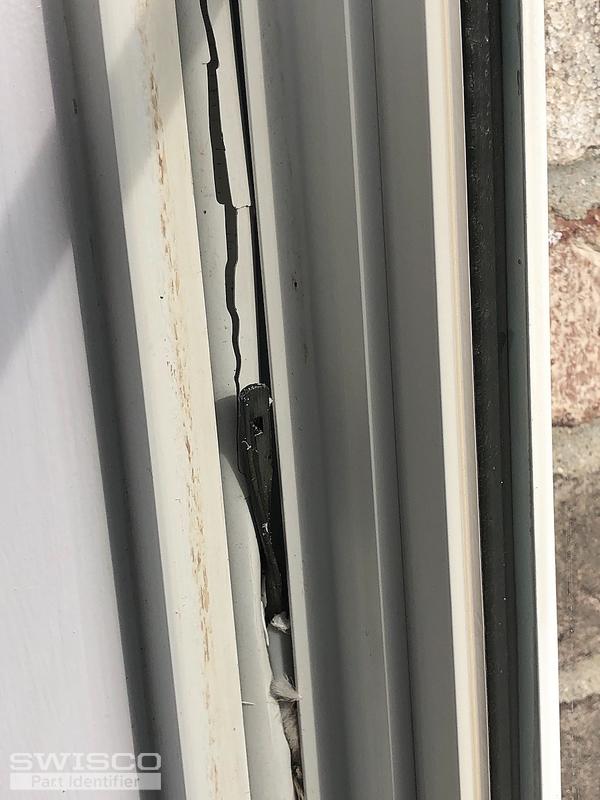

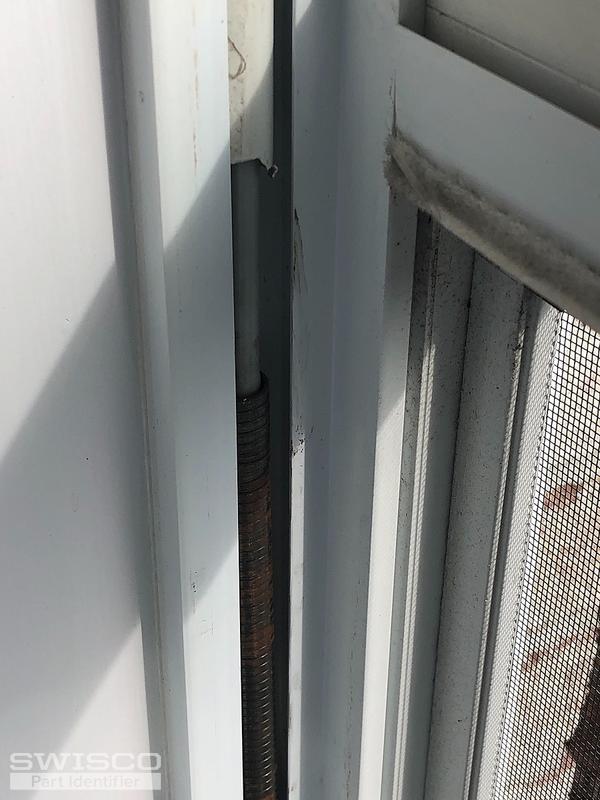

Looks like your balance tube is broken. I'm afraid these cannot be repaired or replaced. Your only option would be to replace the complete spiral balance.

I don't know what yours is, but assuming this is a tilt window you would use either our Series 900 or Series 600, depending on the diameter of the tube.

Quick Learner from Milan, indiana

Apr 11, 2019 3:34 pm

Can I tell from the label on the side of the window if it is a series 600 or 900? How else can I tell the diameter and is this an easy fix once I get a replacement part?

Tom from SWISCO

Apr 12, 2019 8:40 am

I'm afraid that label doesn't tell us anything. You will have to measure your outer tube to confirm the best match.

Once you get the right part, it's a very easy replacement job. See the video below. I'd say it takes about five minutes per window, at most. The 75-006 charging tool makes it an especially easy job.
