Crank Handle? : SWISCO.com

Home Owner from Puyallup, WA

Jun 5, 2025 9:42 am

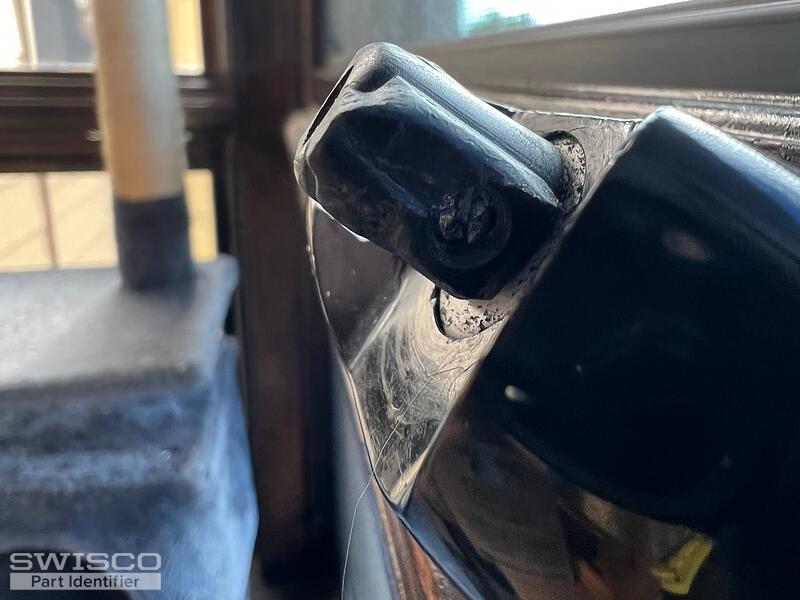

Hi, I'm having trouble finding a crank handle for this window. The pin that holds the handle on came out and was lost and I cannot figure out what handle would attach to this crank. Appreciate any help you can provide.
Thanks,

4 user uploaded images

4 Replies

Casey from SWISCO

Jun 10, 2025 11:24 am

Hello,

We'd be happy to look into this for you but we'll need a bit more information. If you could open the window so that the operator arms that move the sash are fully visible, that would help us confirm which handle and cover options would be compatible. Thank you!

Home Owner from Puyallup, WA

Jun 13, 2025 8:06 pm

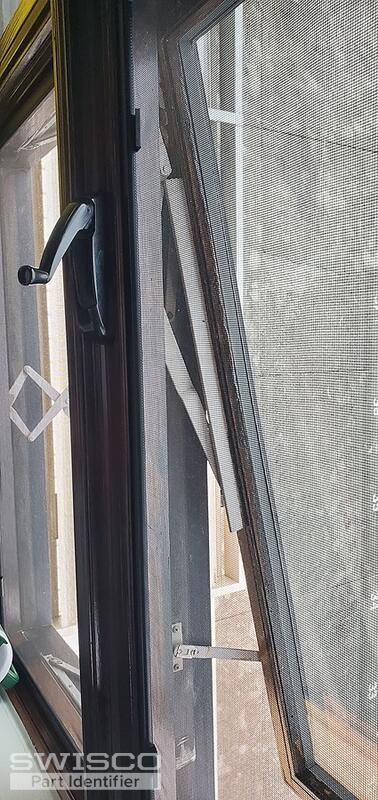

Here's a few photos.
Thanks

2 user uploaded images

Dave Sr. from SWISCO

Jun 16, 2025 9:17 am

Take a look at the 39-205 folding Truth handle. This could be the handle you could be looking for. You'll need to confirm that the 11/32" diameter opening will fit your operator spline.

Side profile view with measurements.

Alternate view of the gear hole
