Crank Handle for Casement Windows

Start a new Discussion

Quick Learner from Cranston

Aug 10, 2020 4:38 pm

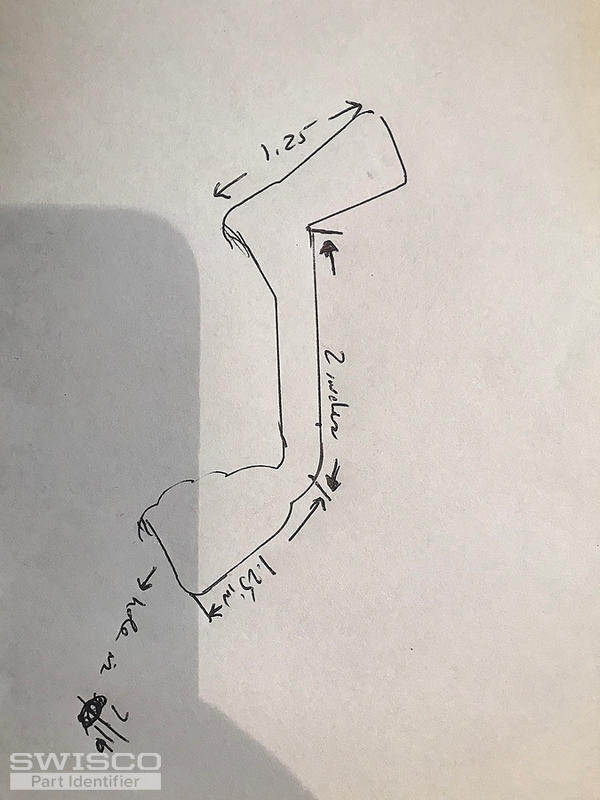

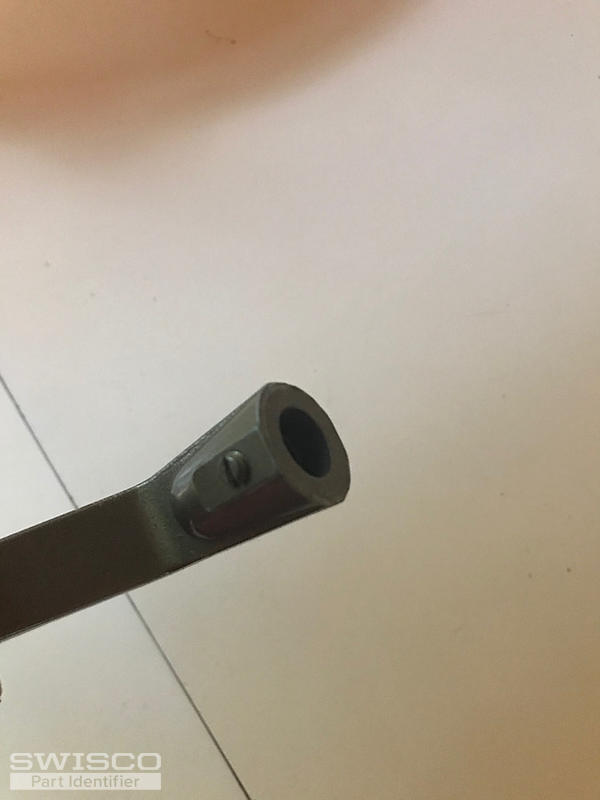

We are working on a Frank Lloyd Wright Restoration and we are looking for this same handle/arm.

Do you have this part in stock or tell me where i can find them.

Thank you,

Ron

5 user uploaded images

6 Replies

Bob from SWISCO

Aug 13, 2020 12:19 pm

Hey Ron. We only carry one crank handle with a hole for a 7/16" spline diameter, the 39-195 T Handle. Double-check the spline diameter just to be safe; if it's in fact 11/32", I think something like the 39-114 could work. I'd like to see the entire operator, including the link arm(s), just to confirm as well.

Quick Learner from Cranston

Aug 20, 2020 9:45 am

HI Bob!!

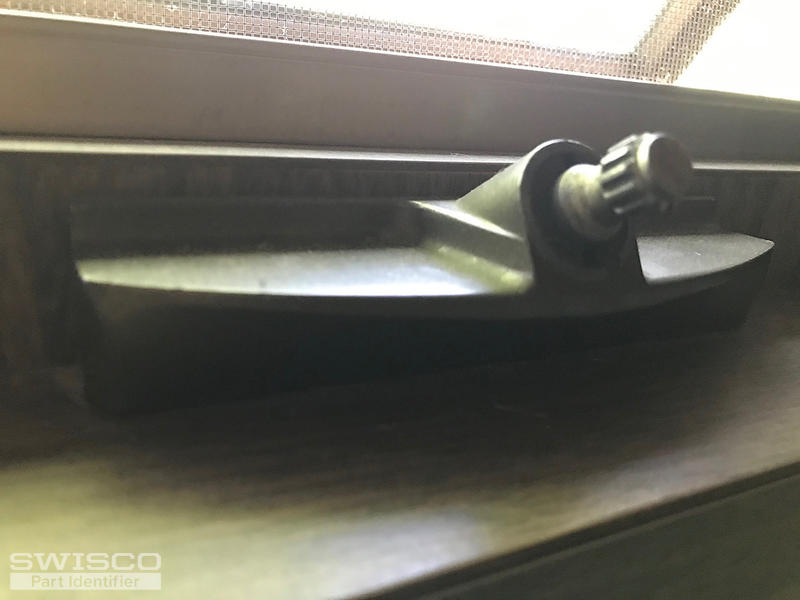

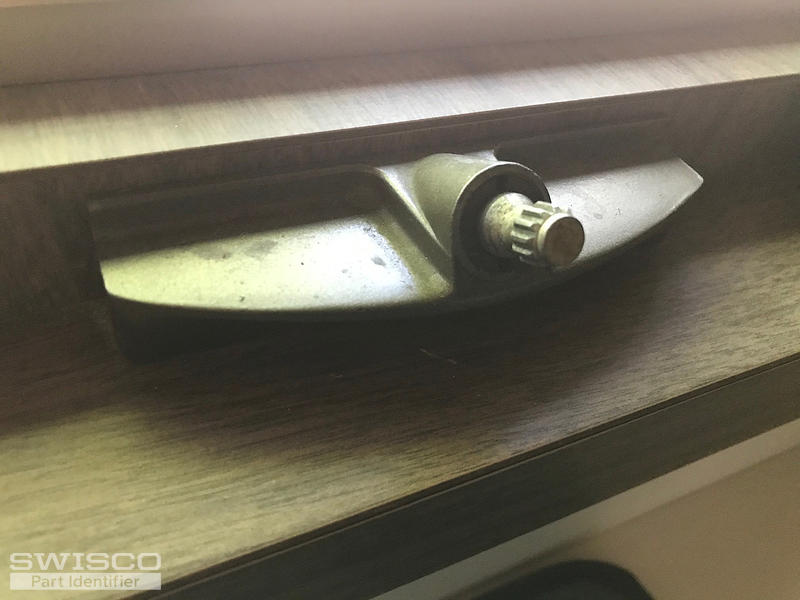

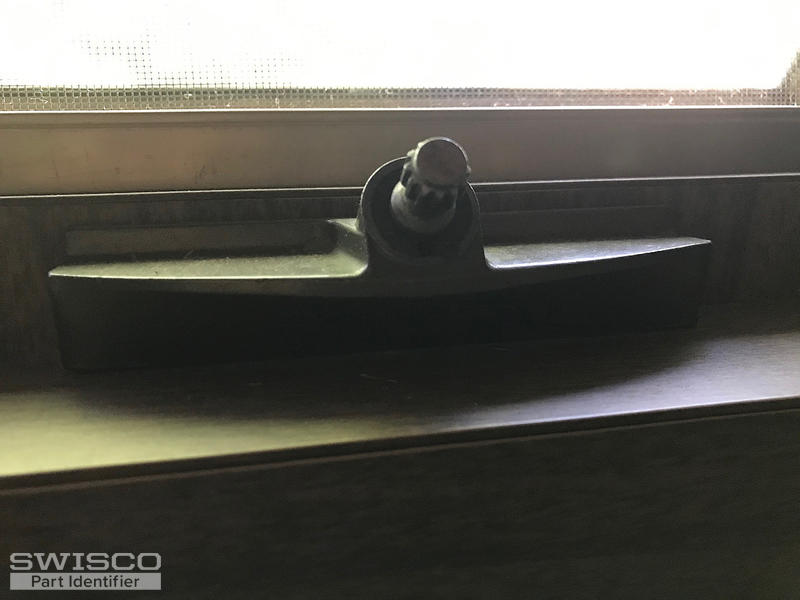

As requested attached is a pic of the crank body for your review..
Thank you for all your help.
Ron

3 user uploaded images

Bob from SWISCO

Aug 20, 2020 11:44 am

Hey Ron. We're close. I can't see the link arm(s) in this picture, so I am afraid I can't identify the operator entirely. That said, I am pretty confident that spline is really 11/32" in diameter, so a handle like the 39-114L should work.

Quick Learner from Cranston

Aug 21, 2020 9:18 am

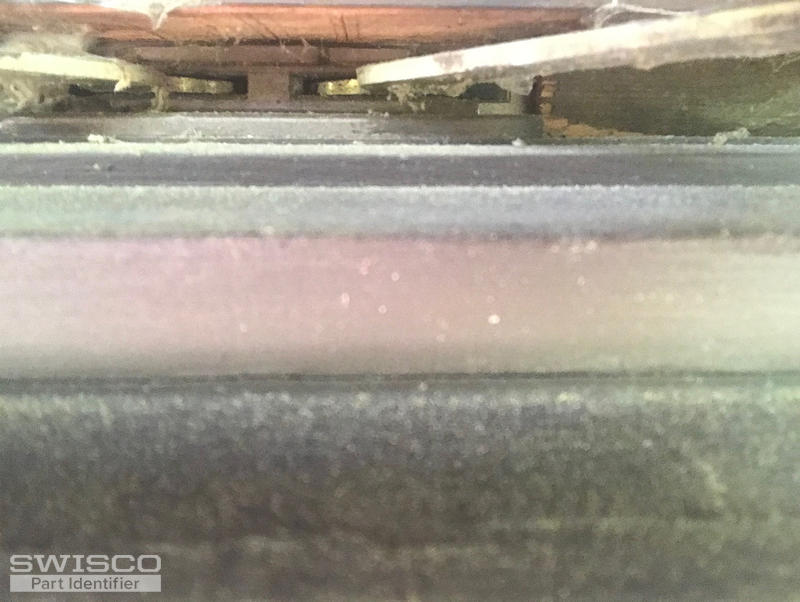

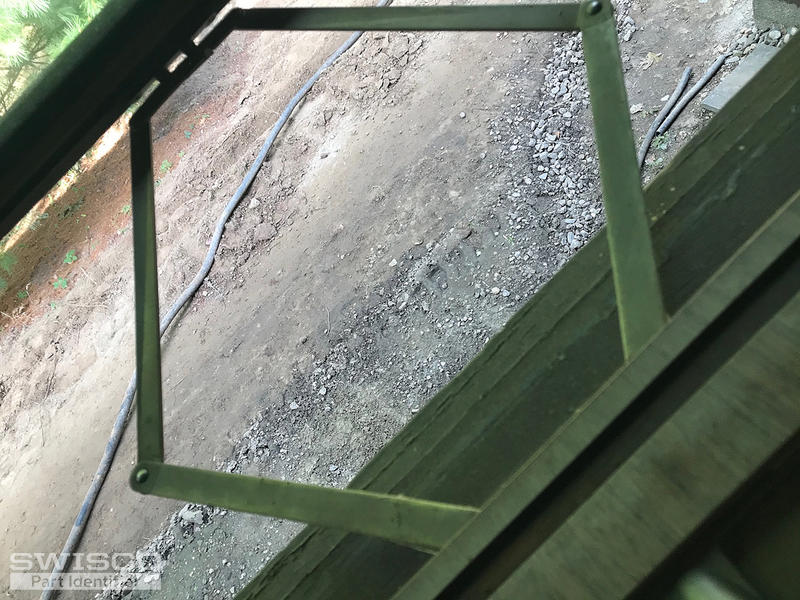

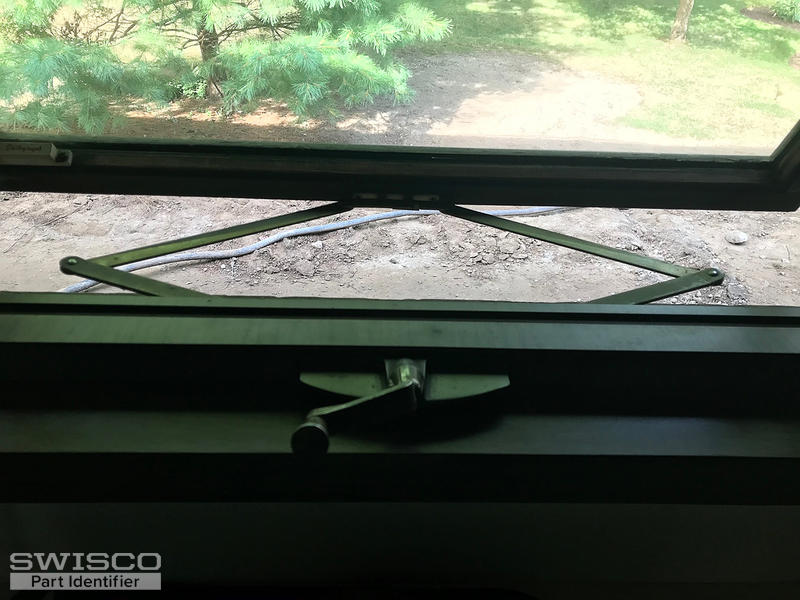

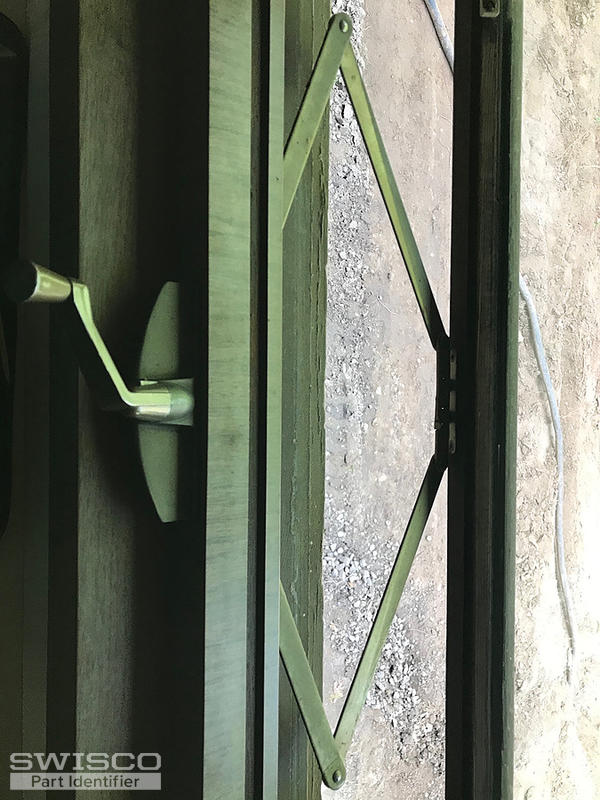

Here is a pic of the link arms for you. Hope this helps and we can find the correct replacement...
Thank you for all your help..
Cheers,
Ron

4 user uploaded images

Tom from SWISCO

Aug 21, 2020 11:51 am

Thank you! This is a huge help, as a matter of fact. I recommend our 39-083 operator to start out. Just make sure the "elbow-to-elbow" measurement is the same as ours at 21-1/2".
