Crank Operator and level lock

Home Owner from 10538

Jun 13, 2021 12:39 pm

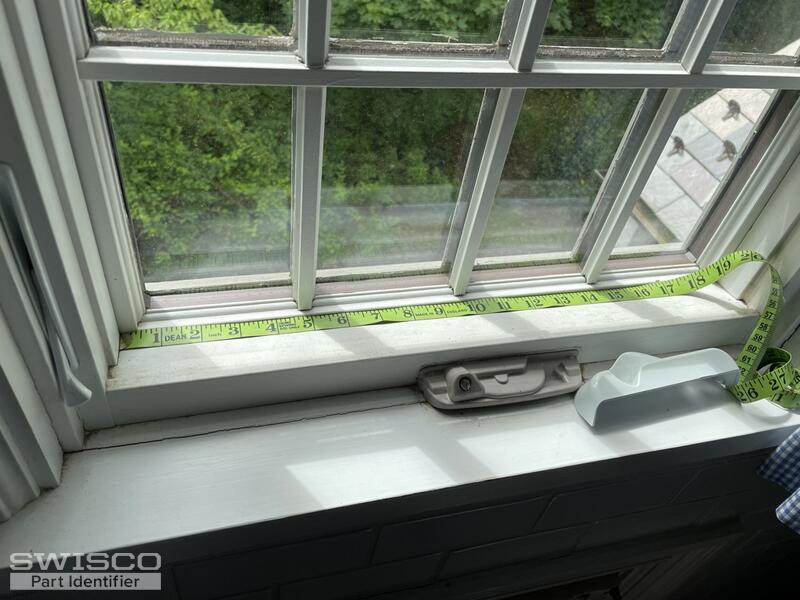

I need a new crank operator as the screw cog sheared off. also but less important the plastic on the lever lock broke off and we glues it on

1 user uploaded image

7 Replies

Casey from SWISCO

Jun 16, 2021 1:06 pm

Hello,

I would recommend removing your lock and compare it to our 38-208. As for your operator, we'll need to see the assembly with the window open so that the arms that move the sash in and out are fully exposed. Thank you!

Home Owner from 10538

Jun 17, 2021 5:14 am

Thanks Casey - since I sheared off the cog on the turn handle, if I open it I can't close it , it is a third floor window. Any possible candidates for the operator I should look at.

Casey from SWISCO

Jun 17, 2021 8:46 am

I can't confirm what you might need without seeing the arms but if there is another window using the same style of operator, you could show us that assembly.

Home Owner from 10538

Jun 17, 2021 9:18 am

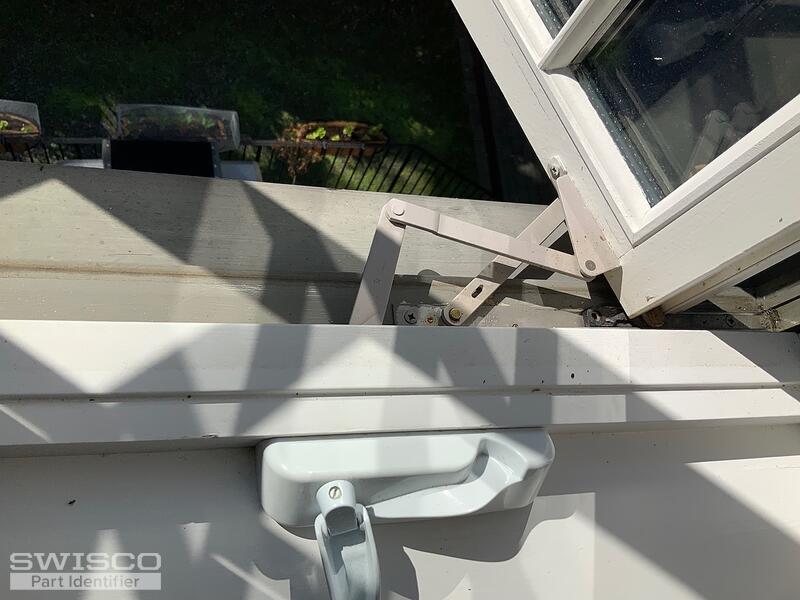

This is similar

1 user uploaded image

Casey from SWISCO

Jun 17, 2021 10:09 am

Take a look and compare the specifications of our 39-220B operator to yours.

Home Owner from 10538

Jun 17, 2021 2:26 pm

thanks Casey - very helpful - i ordered the items
