Crank Replacement

Question

To whom it may concern,

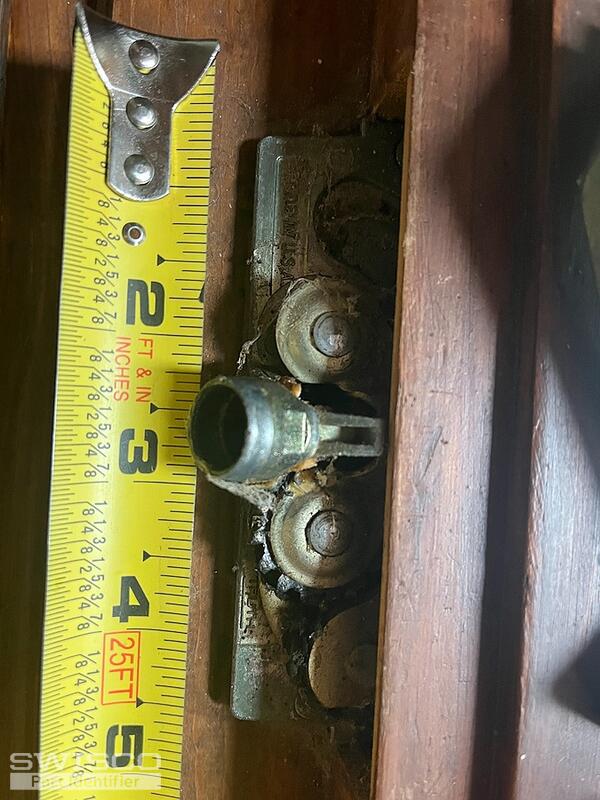

I am an architect and a client is asking for help with one of his windows which crank have come apart and I'd like to see if you sell a preplacement for it (hopefully matching color). Please see attached pictures. The last pictures of the opposite side window, which is functional. Please let me know if you need any other information.

Looking forward to your feed back - Thank you in advance!

Carlos

Jasmine · Accepted Answer

Hi Carlos,

Thanks for posting! Your operator resembles our 39-031 Truth Dual-Arm Operator (the opposite handed version is part 39-032). These operators are compatible with the 39-107 cover along with the 39-114 non-folding handle, like the one you have.

There is also the more updated version of the non-folding handle, part 39-114L or the folding crank handle, part 39-205 . The last option is the 39-107FK , which is a folding crank and handle kit.

Compare the dimensions from your existing operator to those shown on the diagram below.

Dimensions for 39-031
