Crank Window Handles

Home Owner from SALEM, OHIO
I need 3 right window handles. I see no names but found numbers inside the casing handle cover and on the crank handle.

Crank Handle: 11500-11 Pat. Pend

Inside the cover: PAT NO D-198202 U S
RD 1963 CAN
R H

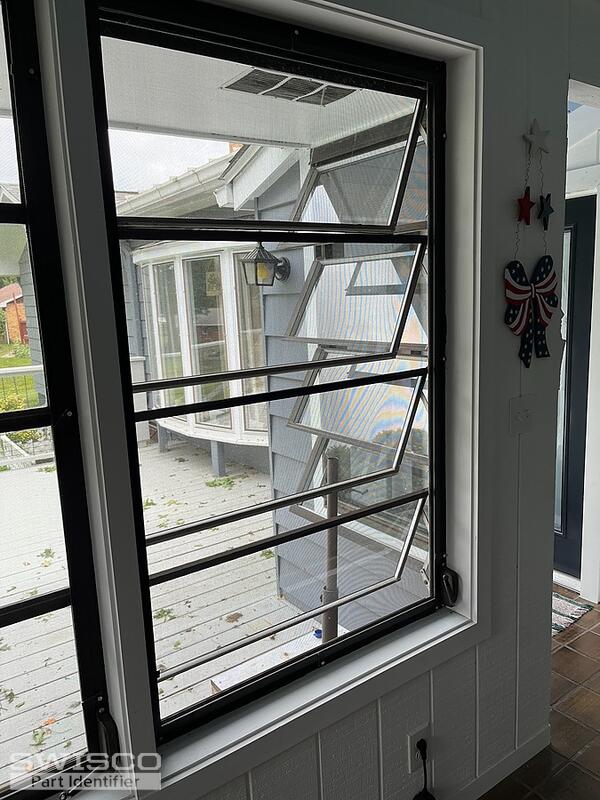

5 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

Thanks for reaching out to us. Check out the 39-104 handle. This has a 3/8" gear bore. You'll want to measure the hole in the handle to see if it's 3/8" as well. Take a look and see what you think.

Home Owner from SALEM, OHIO

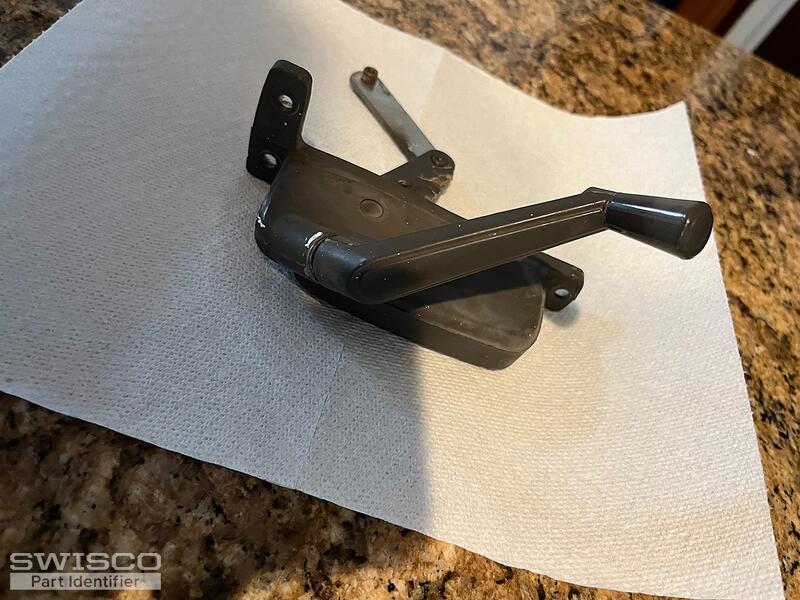

I need the entire apparatus that opens and closes the window. The gears stripped out of the casing. I need to know which handle and casing to order to replace the entire mechanism. See photos above.
Emily
Emily from SWISCO
SWISCO
Expert

Thanks for clarifying. The 39-025 and 39-026 resemble your old operator. Review our specifications and see if they match what you're searching for.

Dimensions for 39-025
Dimensions for 39-025

Dimensions for 39-026
Dimensions for 39-026

Home Owner from SALEM, OHIO

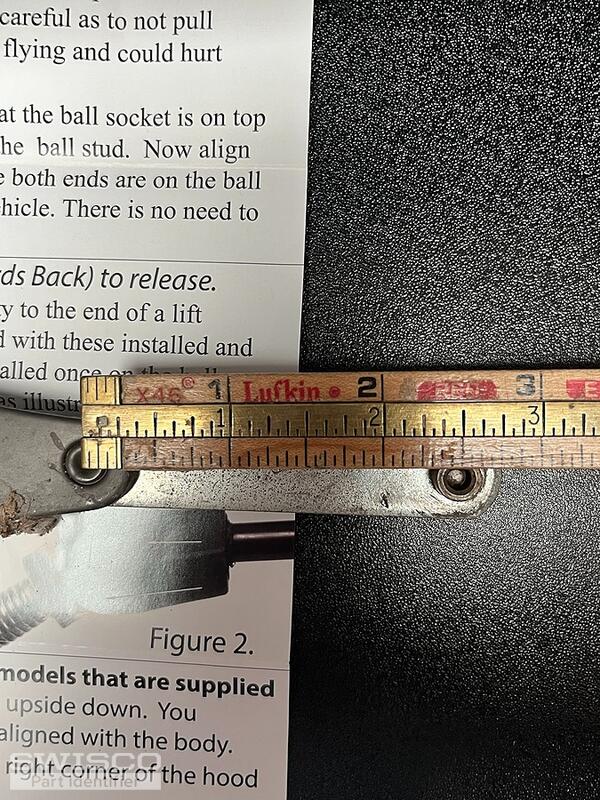

Everything is the right measurement except for the lever arm. It measures 2 1/2 inches which is 1/8 longer than 39-025 and 39-026. Will they still work or is there another that has a 2 1/2 inch extension lever?
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

That 1/8" difference shouldn't matter. There's some play in the linkage of the operator to make up the difference.
