Crank for horizontal 3 pane window

Home Owner from Whiting nj

Apr 6, 2024 1:59 pm

I wanted to know if you knew a replacement part for this hand crank. There are no names or numbers on the windows or cranks that I saw. Thank you for your help.

3 user uploaded images

9 Replies

Home Owner from Whiting nj

Apr 6, 2024 4:48 pm

Box part 2" wx 4 1/2 h
Bottom of bracket to top 6"
Handle is 4" long.

Lauren from SWISCO

Apr 9, 2024 8:30 am

Hello, thank you for posting,

To further review, we will need to see the operator fully removed from the window where we can see the style of the link arm. From there we can compare to our selection to determine if we can provide a suitable replacement option. Thank you!

Home Owner from Whiting nj

Apr 9, 2024 9:38 am

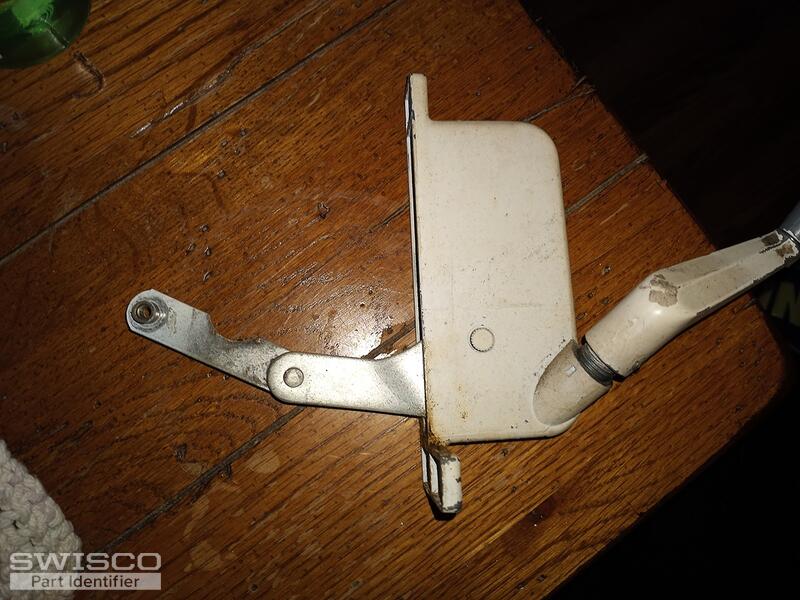

I removed the part, hope this helps

1 user uploaded image

Lauren from SWISCO

Apr 9, 2024 1:10 pm

Thank you for the additional angle,

I have related a few different operators on the page that are similar in style. Compare all dimensions to see how they match up to your original to confirm a good fit! Let us know what you think and if you have any additional questions!

Home Owner from Whiting nj

Apr 10, 2024 3:51 pm

The 39-025 is the one that should do it for me. I'm going to order them and see how it goes. Thank you very much for your time and help.

Lauren from SWISCO

Apr 11, 2024 9:50 am

No problem! Please let us know how you make out with your repair and if you have any future hardware questions.

Home Owner from Whiting nj

Apr 20, 2024 6:28 pm

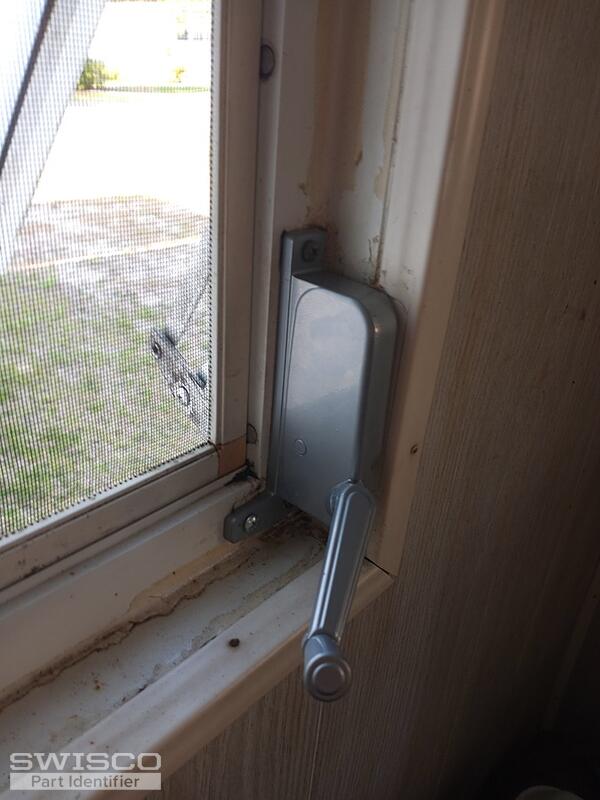

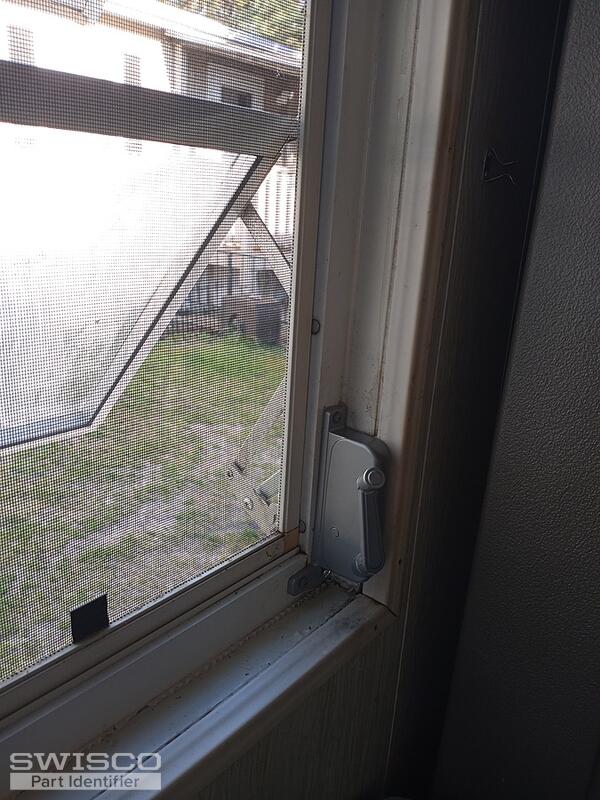

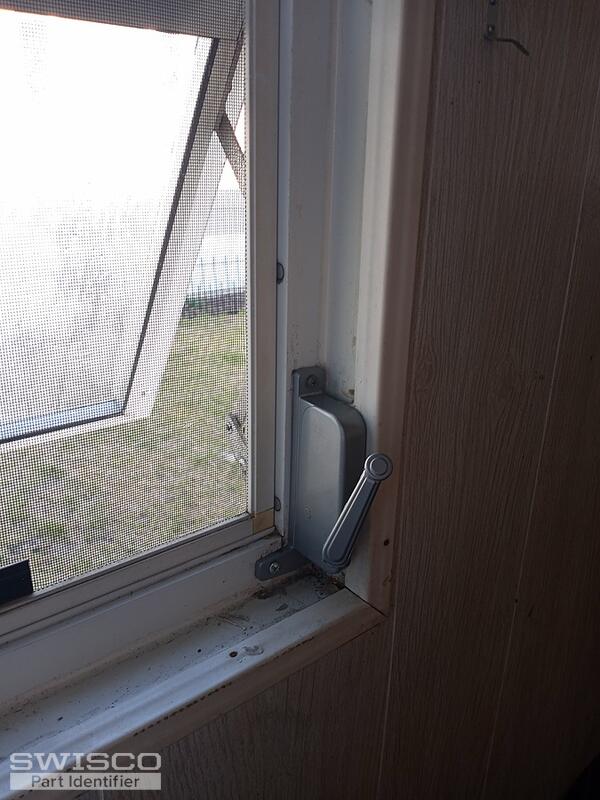

I received the parts Thursday night and put them in Saturday morning. They work perfectly. Thank you so much for your help and for getting the parts I needed. Will definitely be getting more products from you in the future.

3 user uploaded images

Lauren from SWISCO

Apr 22, 2024 7:46 am

Thank you for the update. We are happy to hear that the operator worked well for you! Please let us know if you have any future hardware questions.
