Casement Operator has Wrong Link Arm Size

A home owner from Medford, MA says:
May 11, 2020
I ordered Sash Dyad Crank, 5" 39-188 for my rollout window but the arm is just slightly too long for the window to close completely. My guess is the window was installed in the late 80's. Is there a replacement part for this or am I out of luck?
Thumbnail of the uploaded file named IMG_4666.jpg
Thumbnail of the uploaded file named IMG_4667.jpg
Thumbnail of the uploaded file named IMG_4668.jpg

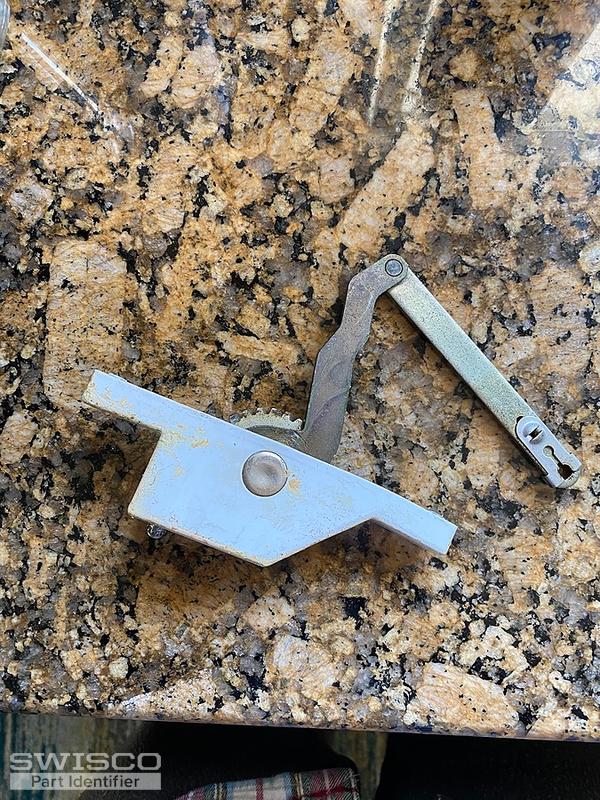

Thumbnail of the uploaded file named IMG_4664.jpg

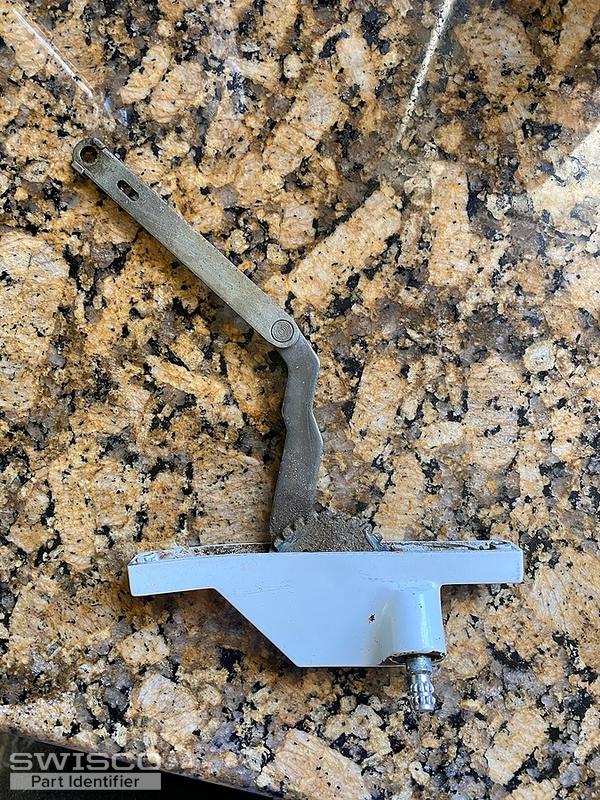

Thumbnail of the uploaded file named IMG_4665.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 13, 2020

Sorry to hear of your troubles with the 39-188. This isn't an uncommon problem. What I have done in the past would be to first try and move the sash bracket over a little to make up the difference. Another thought would be to swap the link arm from the old operator using the 62-014 rivet. Let me know if either option could work for you.
Sash Dyad Crank, 5"
Sash Dyad Crank, 5"
39-188
$37.10
Rivet
Rivet
62-014
$1.12
