Crank handle

Quick Learner

Jul 9, 2020 7:21 pm

It is screwed on to window so I don't want to take it off the one attached to window if you can identify without doing so. I need the parts shown in pic. The crank is on the right casement windows. I need these parts for the left casement which has a hole (shown) where it should be. The cover measures 5 1/2 inch in length and 3/4 inch width.

2 user uploaded images

6 Replies

Tom from SWISCO

Jul 13, 2020 2:44 pm

We may be able to help, but your pictures only show the base, which only tells half the story. We also need to see the arms that actually push the window open and pull it closed. That usually means you have to take it off ahead of time, but if you aren't able to do that then we basically need to see as much of it as possible.

Quick Learner from OH

Jul 13, 2020 3:47 pm

Hi

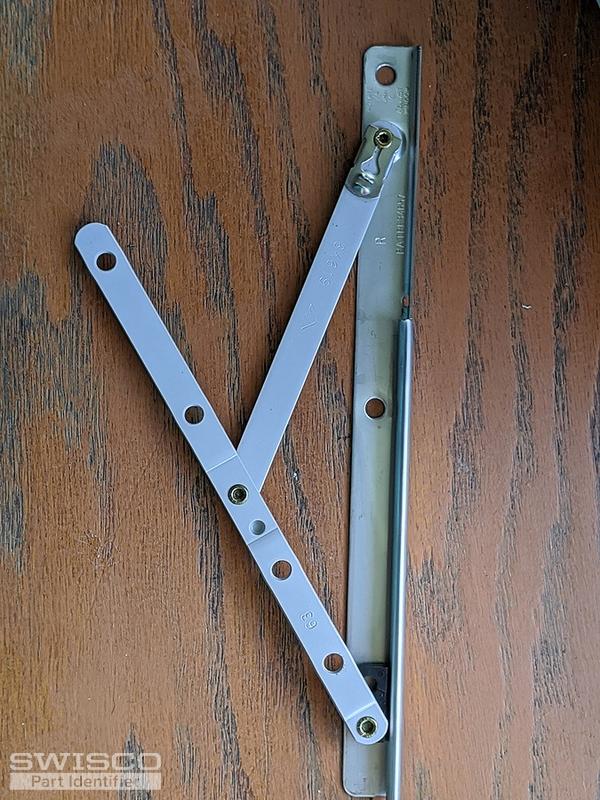

Thanks for the reply. I recently ordered item # 36-048 to install on this window. It fit the window. Hope that helps.

2 user uploaded images

Tom from SWISCO

Jul 14, 2020 9:09 am

Thank you! These photos are a huge help, thank you! That operator looks like it's the same style as our 39-187. Since you need the opposite side, see the 39-188 instead. Carefully review the pictures and information we show on its store page and let me know what you think.

Quick Learner from OH

Jul 14, 2020 9:30 am

Thank-you. Is the #39-114L crank handle to order for this as well?

Tom from SWISCO

Jul 14, 2020 11:10 am

Yes, the 39-114L will be fully compatible with the suggested operator.
