Crank handle

Question

Hello,

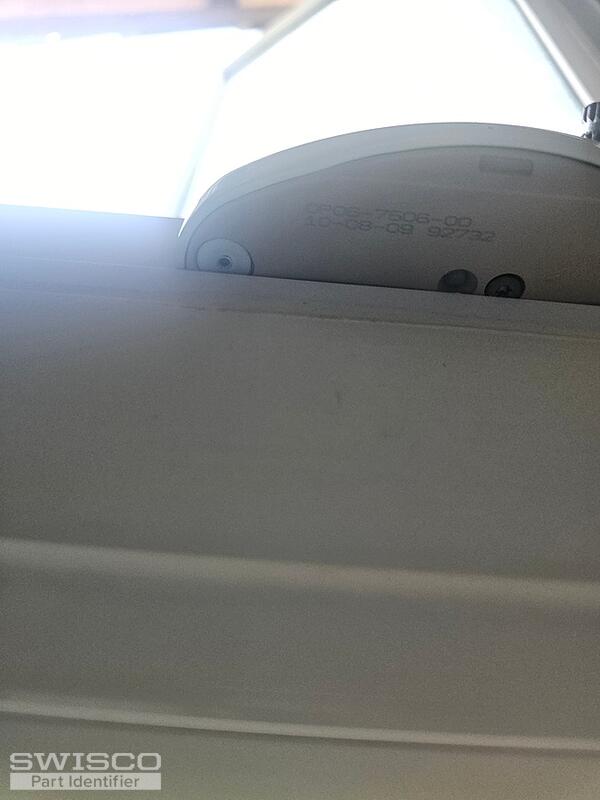

I need the following crank handle. The 1st three pictures are of the window that needs the crank handle. The last picture of the crank handle, im not 100% positive its for that window. Client found it in a drawer. So dont base it on that image. You guys have a 1000 crank handles, how can I know for certain what will work? Please help

Jasmine · Accepted Answer

Thanks for writing in. The window operator you have here appears to be a Roto brand operator like the 39-341 and 39-342 Roto Dual Arm Casement Window Operators. This is most often used with the 39-232 Roto Folding Crank Handle.

To confirm that this is the right replacement, you'll need to confirm the spline measurement on the operator. This handle will fit an 11/32" spline.

Dimensions and alternate view of 39-232

Dimensions and profile view of 39-232

The handle in the first photo is the 39-230. This is used for operator that have a hex gear bore measuring 5/16".
