Crank is not opening/closing

Question

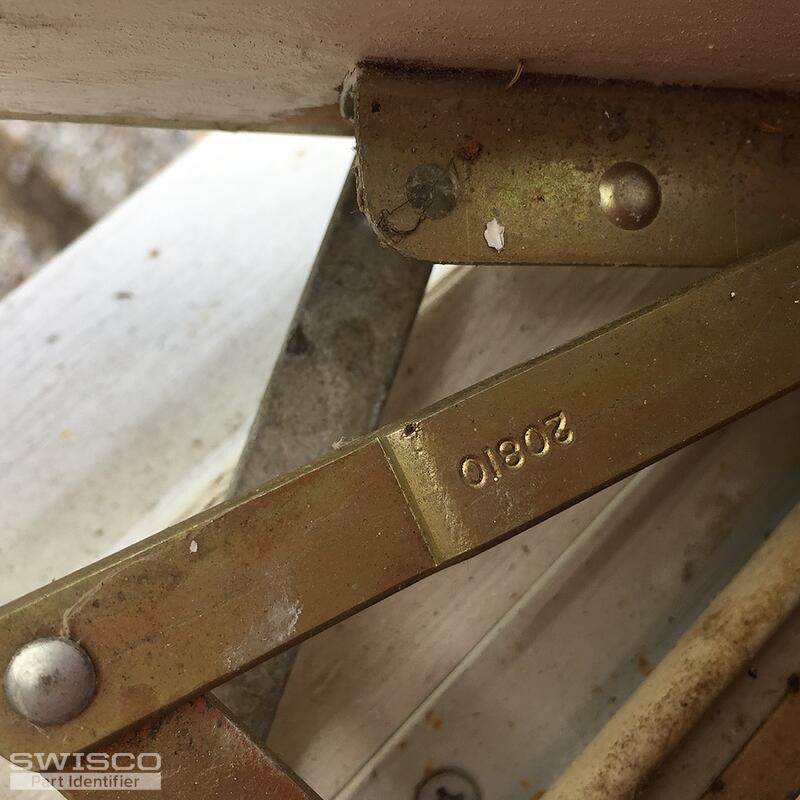

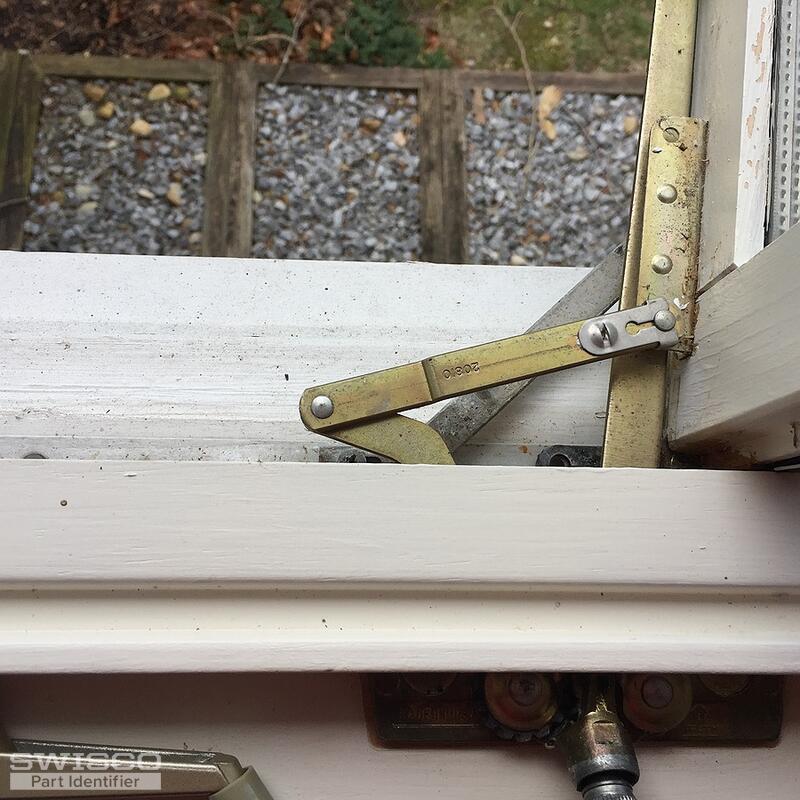

I have viewed how to videos on Utube and am confident I can replace and or repair these two cranks that are not working properly. The weather has not been in my favor to remove the part so I am hoping with numbers shown on the part that perhaps you can lead me accordingly. Also, thinking about replacing all handels to a fold down type if possible and will also be ordering the stainless clips.

We will finalize this order once I have a clear direction. So, here is what I am looking to purchase; set screw to achieve a repair whereby the crank will not back out when attempting to close or open, clips, handels (fold down type in white) If repair isn't an option then replacing the crank (2 needed) and once again clips, handels (fold down type 10 needed)

Thank you for your input

Tom · Accepted Answer

Thanks for posting! Based on the fact that worm gear has come out of the base, you will need an all new operator. I'm afraid you can't repair this kind of damage.

With that in mind, see our 39-031 and 39-032. I think you'll find these match quite well, but compare our dimensions to yours just to be sure.

As for the folding handle and cover, you have two options: you could go with our standard 39-107 cover and 39-205 folding handle, or our 39-107FK folding handle/cover combo. See what you think.
