Home Owner from Saratoga NY

Jun 28, 2021 4:45 pm

Help. Can't find this anywhere.

2 user uploaded images

6 Replies

Bob from SWISCO

Jul 1, 2021 1:43 pm

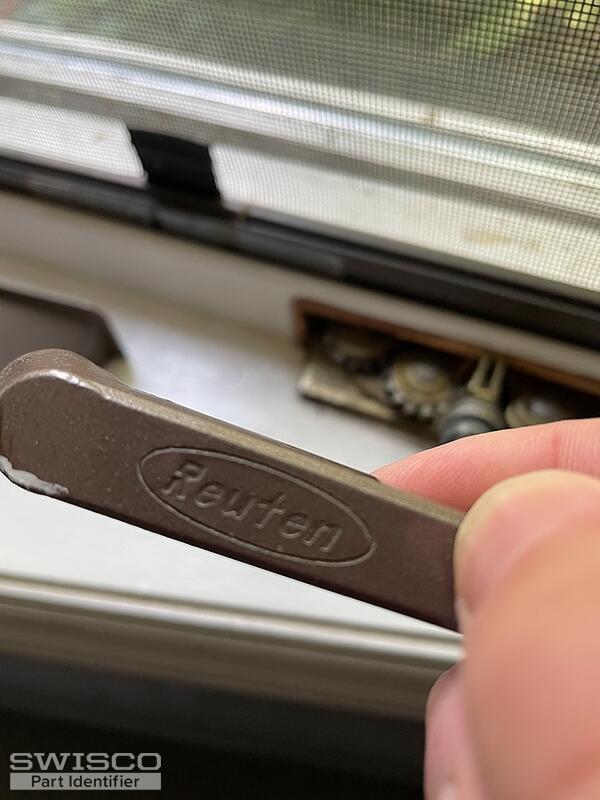

This looks like a 39-114L handle. Just make sure the hole that fits around the operator spline has a diameter of 11/32". For a new cover, see the 39-107. Let me know if you have any other questions.

Home Owner from Saratoga NY

Jul 3, 2021 8:40 am

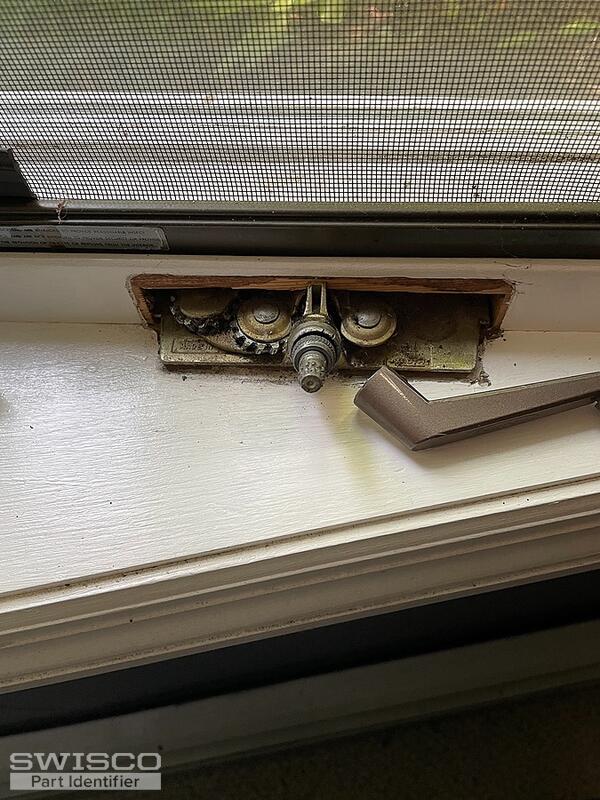

I need the entire crank mechanism

Bob from SWISCO

Jul 6, 2021 9:49 am

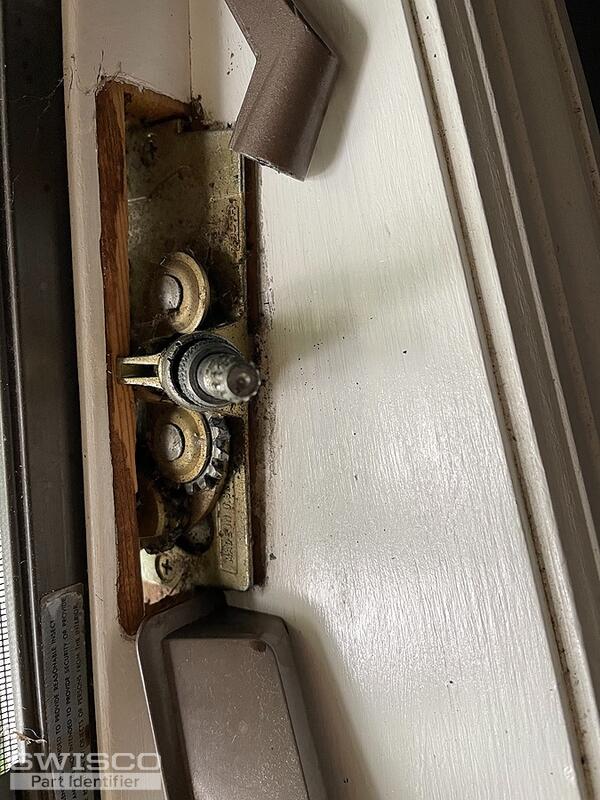

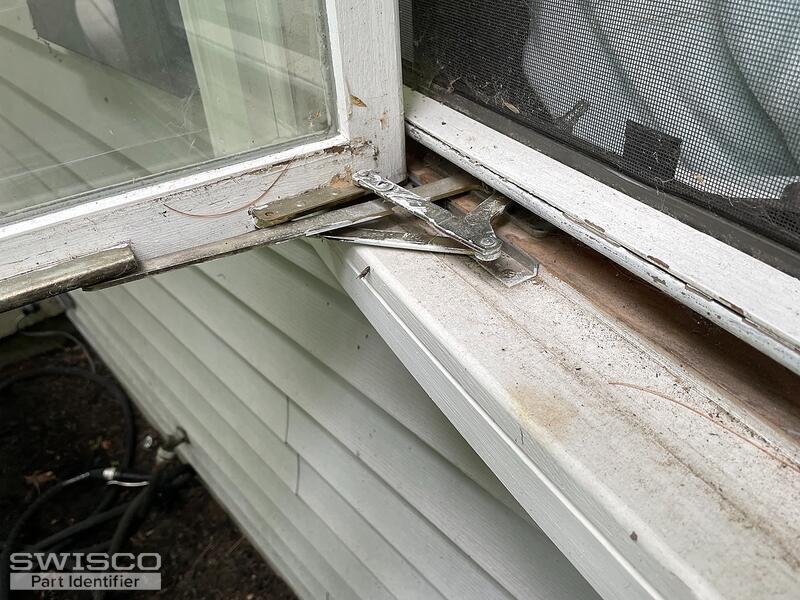

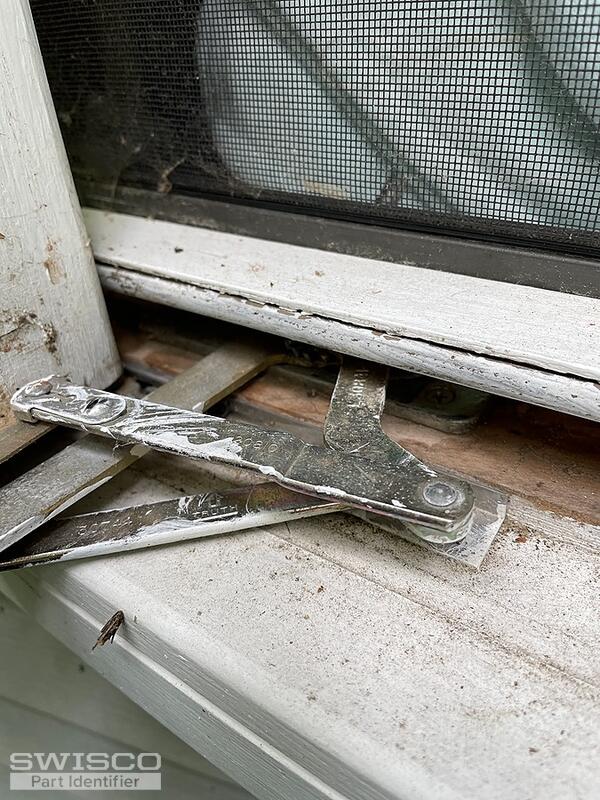

In that case, I will need to see the entire operator assembly, including the link arm(s) that push and pull the window closed. I should be able to pinpoint this from there.

Home Owner from Saratoga NY

Jul 9, 2021 9:34 am

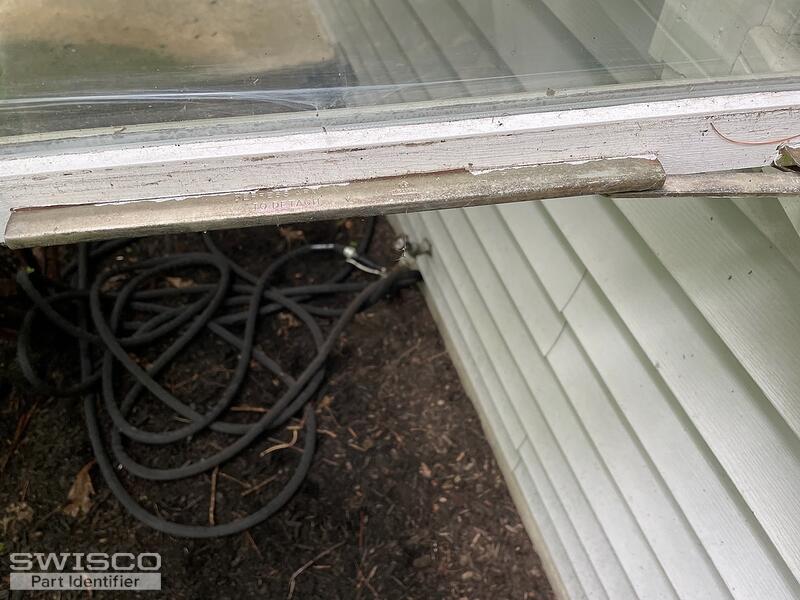

The extension arm from the crank mechanism is approx 9" long
