Missing Parts for Crank windows

A home owner from Glenville NY says:
June 13, 2020
We have two windows in need of repair. Both function properly it seems we have lost screws and maybe a mounting plate of sorts on the crank assembly. Hopefully you can steer us in the right direction as to what screws and or parts we need to get them back in working order.
Thumbnail of the uploaded file named 20200613_172745.jpg
Thumbnail of the uploaded file named 20200613_172757.jpg
Thumbnail of the uploaded file named 20200613_173401.jpg

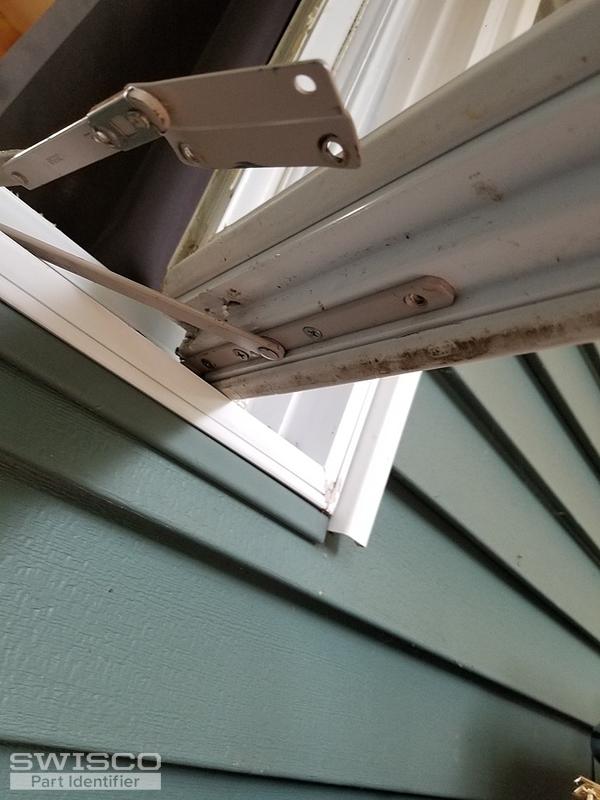

Thumbnail of the uploaded file named 20200613_173405.jpg

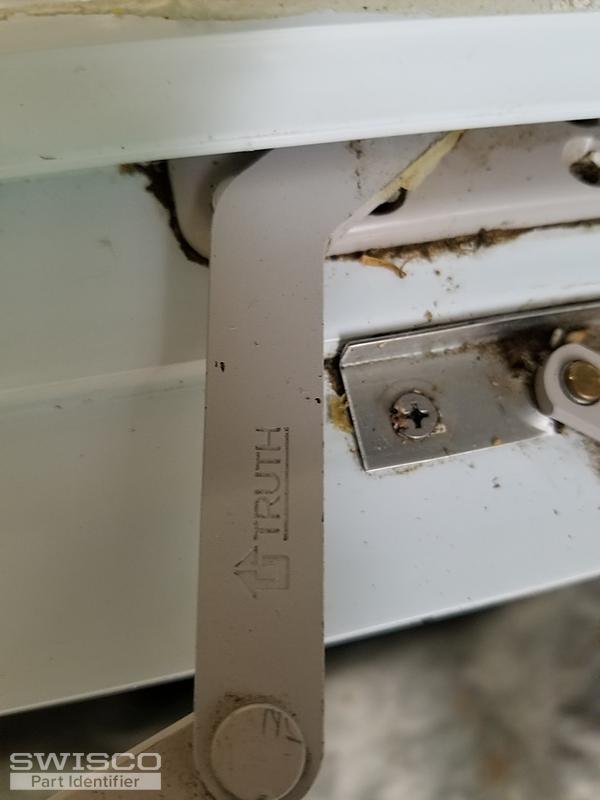

Thumbnail of the uploaded file named 20200613_173518.jpg
Profile picture of Tom
Tom from SWISCO responded:
June 17, 2020

Hello! I agree, it looks like you're missing the old mounting bracket. The one you still have looks like our 39-513, so the opposite hand side that's missing would be the 39-514.

I'm less certain about the screw. Some customers have used the 33-083 in the past to secure these, but that's no guarantee it will work for you. The length especially is in question. I recommend taking one of the old ones to a local hardware store to have them match up the size.
Stud Bracket
Stud Bracket
39-514
$4.35
Stud Bracket
Stud Bracket
39-513
$4.35
8-32 x 5/8" Phillips Pan SS Screw
8-32 x 5/8" Phillips Pan SS Screw
33-083
$0.31
Connecting a casement window operator to stud bracket
Connecting a casement window operator to stud bracket
VIDEO
WATCH >
