Cranks for casement windows

Handy Person from Virginia

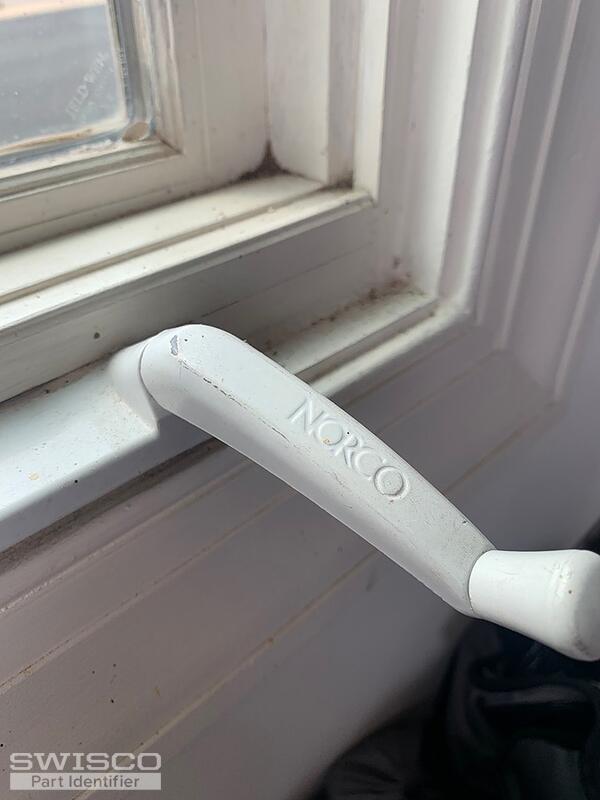

Hi there.  We are buying a home.  The sellers had plantation shutters installed and removed all cranks from the casement windows.  We want them to be operational, and the sellers tossed the parts a decade ago.  The white crank pictured is from the neighbor's home - we asked if they could help us identify what was needed.  We did order one from Amazon just to satisfy the appraiser, but the spline is deep and it didn't quite fit right.  Can you help us?  We need 6 rights and 6 lefts. We would ideally like to keep them on all the time and not have them in the way of the plantation shutters (if possible). If not, I just need to have them sitting on the sill for fresh air and in the case of an emergency for egress. I am both the buyer's real esstate agent, and the buyer... and we're fairly handy.
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! This window operator base looks similar to the older, Truth brand operators. I believe your spline size should be 11/32". That said, take a look at the 39-114L Crank Handle and the 39-205 Truth Folding Crank Handle as possible replacements.

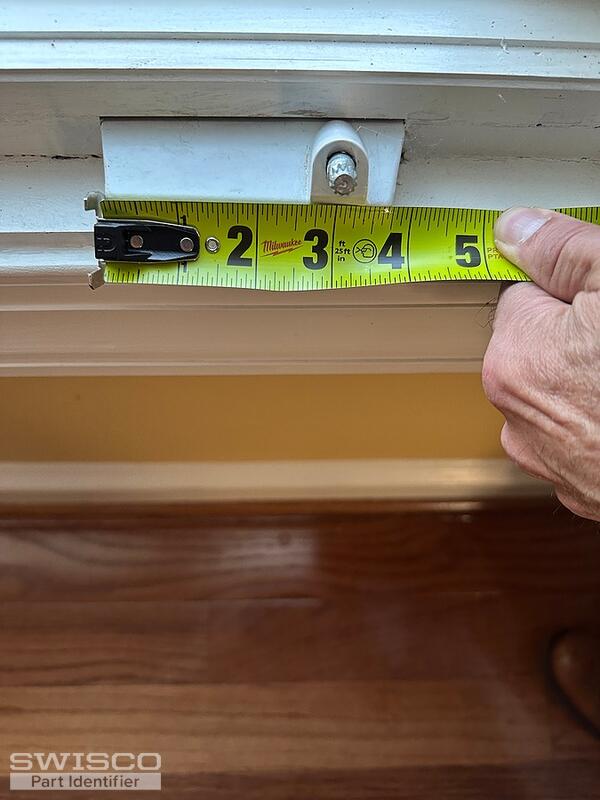

Alternate view of the gear hole
Alternate view of the gear hole
