Crestline Casement operator

Question

I have Crestline Casement windows and need 2 right hand and 2 left hand operators. - They are all of the single arm variety.
- The total single arm length is about 9 inches.
- The body (where the gears are located) is about 5 inches long.
- The operator looks identical to your 39-216 and 39-217. (Please look at my
pictures)
Markings on the operator are 4057 (on the bottom of the single arm) and Truth is I believe the model or the manufacturer.

Can you please verify that I have the right models.

Thank you and have a great day!!

Randy

Jasmine · Accepted Answer

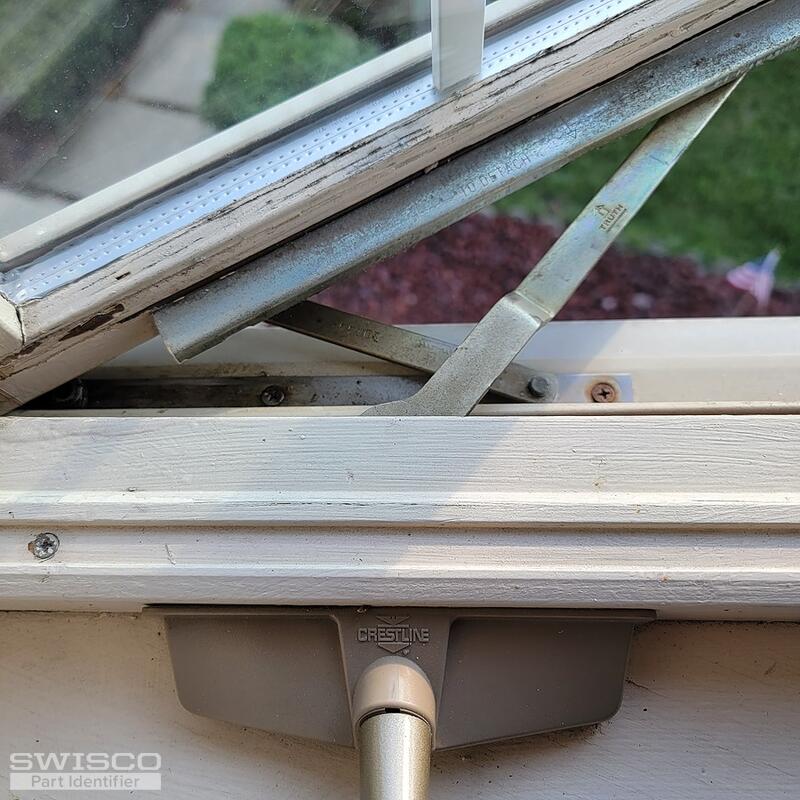

Thanks for reaching out! It does appear that the casement operators you've selected, part 39-216 and (the opposite handed version) part 39-217, are the correct replacement for the operator in your first photo. To confirm with certainty, be sure to double check the dimensions from the diagram below.

Dimensions for 39-216

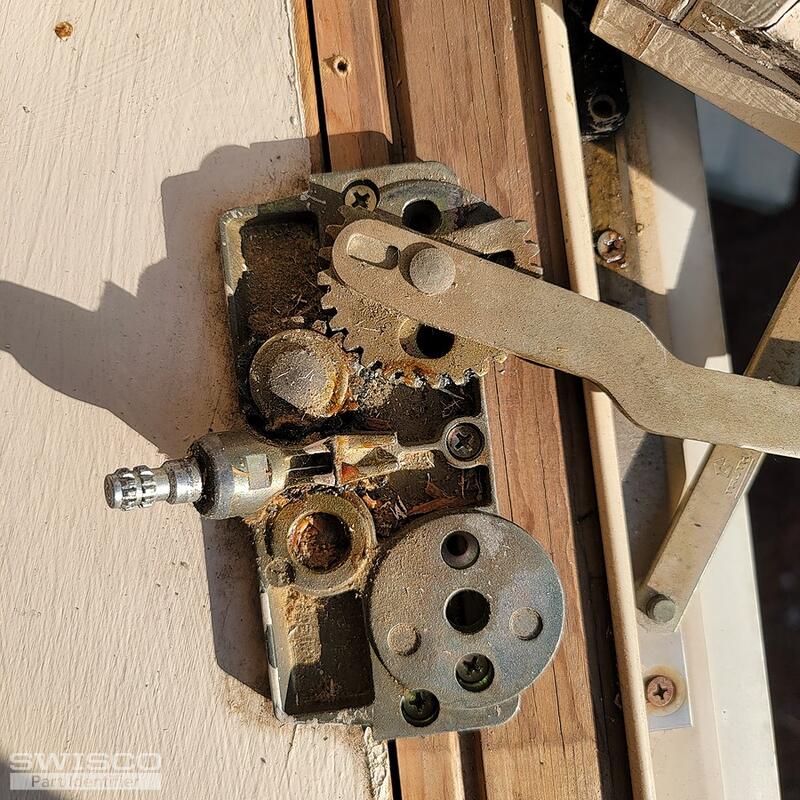

The operator in the second photo appears to be the 39-032, the opposite handed version would be our 39-031.

Dimensions for 39-032

Both of these operator styles are compatible with the 39-107 Truth hardware cover along with the 39-114L non-folding and 39-205 folding crank handles. You may also need the 39-505 Entrygard Track.
