Crestline Glazing bead

Professional from Coal City, IL

Feb 21, 2013 4:48 pm

I need some white vinyl glazing beads for what I think is a Crestline vinyl slider window. These are wafer thin and very flexible. The face of the beads measures 21/32" or a strong 5/8". The barb is about a 1/4" wide. Can you help me with this?

Thanks,
SteveWindowRepairGuy.com
One Source Renovation, LLC

User submitted a photo of a glazing bead.

7 Replies

Paul from SWISCO

Feb 22, 2013 9:06 am

Hey, Steve, thanks for posting. Have you seen our 55-164? This looks pretty close to your sample. Take a look and tell me what you think.

Professional

Feb 22, 2013 9:41 am

Hi Paul,

I did see that one but the barb is at an angle much greater than the one I have and the material is too thick. If I'm correct, that 55-164 bead is very rigid, thicker extruded vinyl, the one I need is flimsy and flexible.

Paul from SWISCO

Feb 22, 2013 10:49 am

Actually, our 55-164 is fairly flexible. Take a look at this animated image to see what I mean:

A SWISCO animated image of the 55-164's flexibility.

Quick Learner

Feb 22, 2013 11:29 am

That's a nice feature to be able to show me an animated clip, very cool. I'm still a bit concerned that the barb is at too great of an angle. On the bead I need the barb slides almost horizontal into the sash frame to be engaged. Maybe I should just order one and see if it works. If not I'm sure I can use it in the future. I sure do appreciate your help.

Home Owner from Portland Oregon

Aug 12, 2023 7:35 pm

Hello - I have EPI windows series 5200 - house was built 2000 . I need to replace my snap- in white vinyls glazing beads -
The measurements
Face : 1/2 "
Top : 1/8"
Profile : 3/4"
I attached some photos
Would you please help me determine which glazing beads might work for my windows ?
And if I order some how much the shipping cost ? And if the pieces didn't work can I return them and get refund ?

Thank you

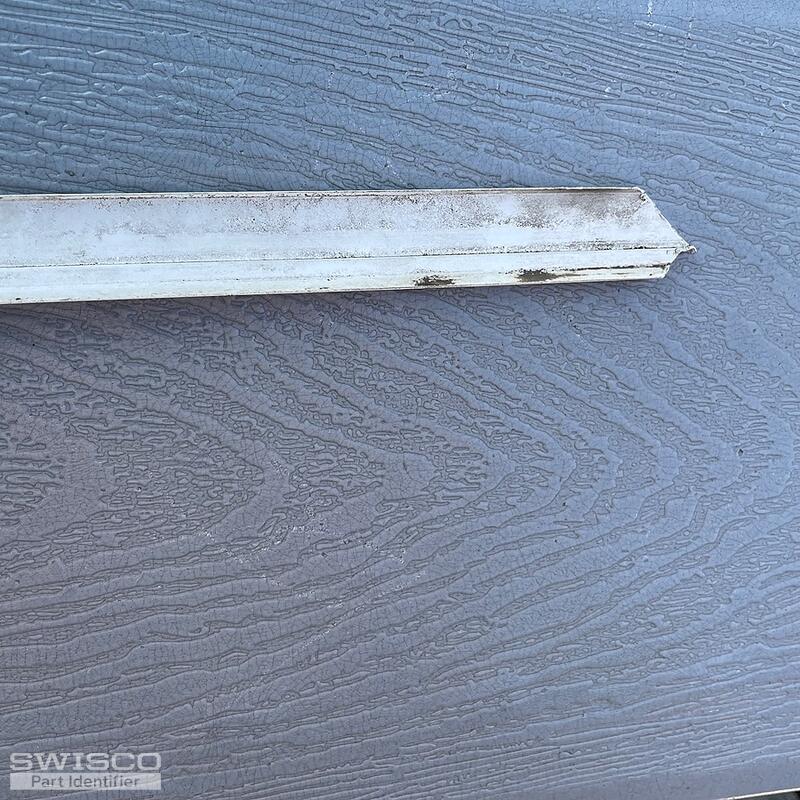

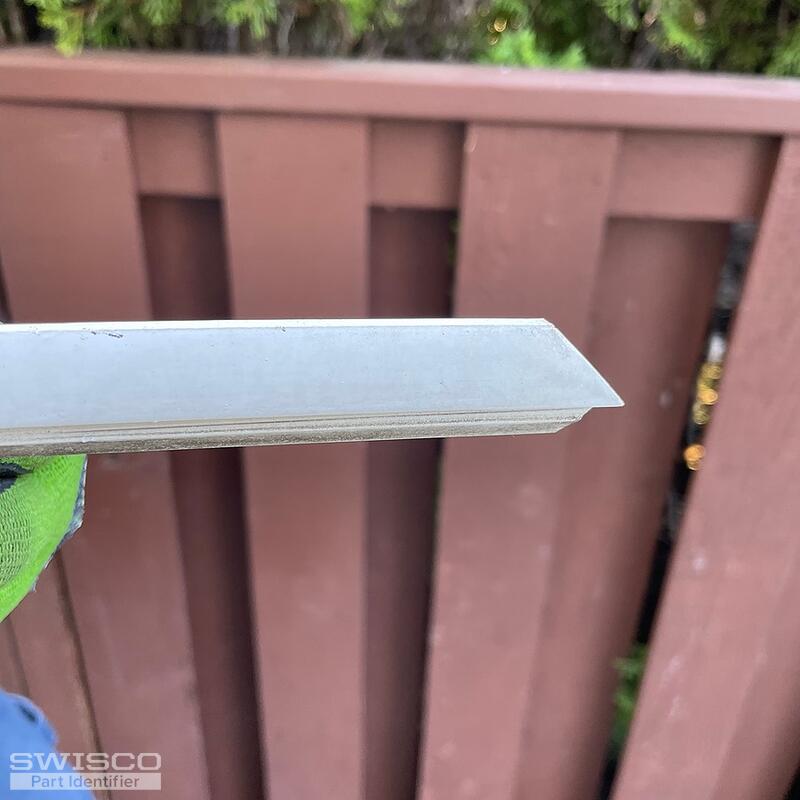

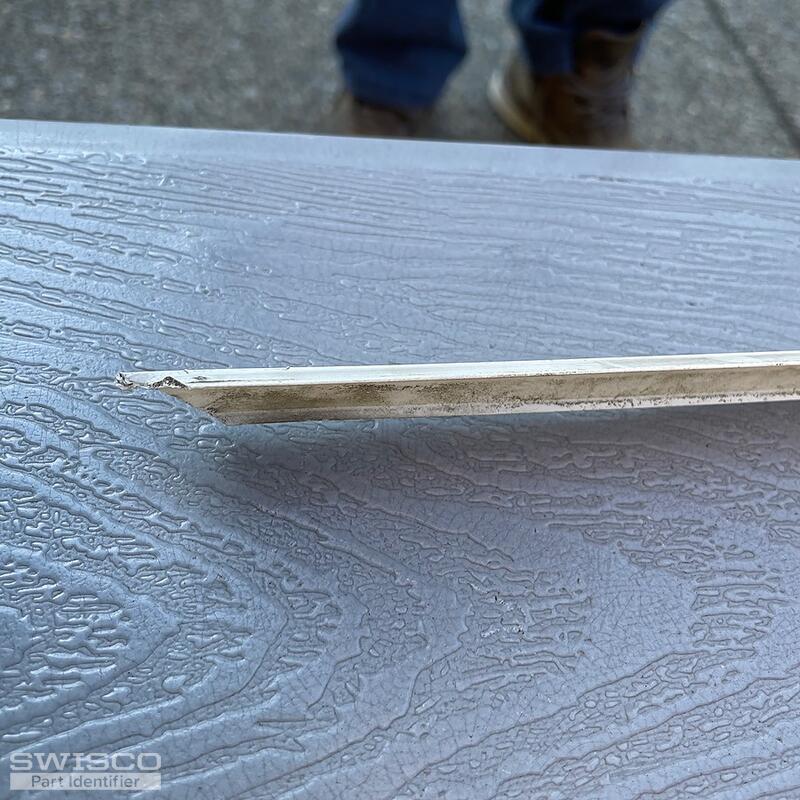

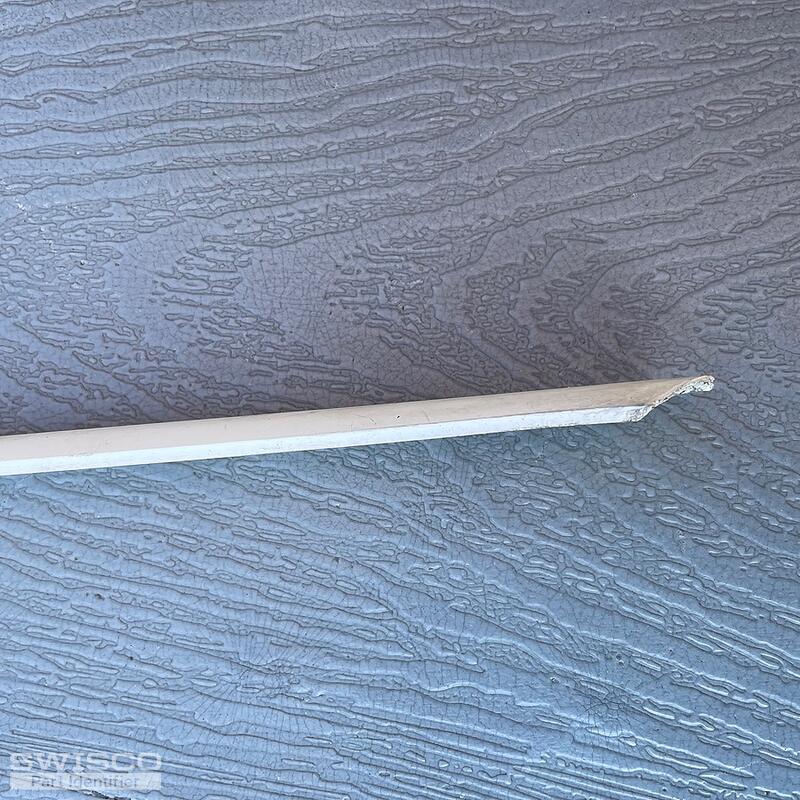

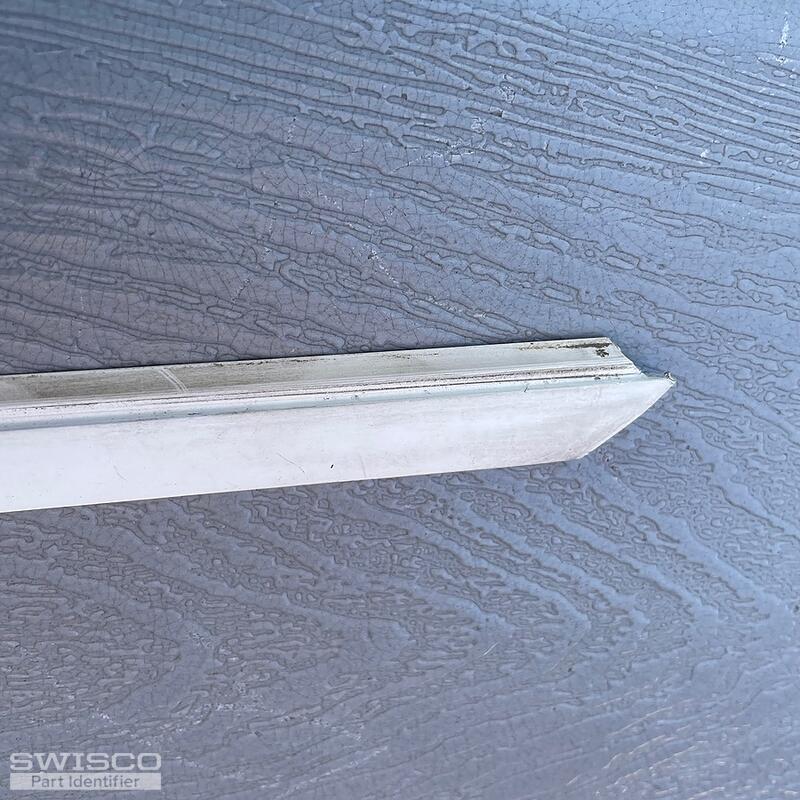

5 user uploaded images

Tom from SWISCO

Aug 14, 2023 2:16 pm

We may be able to supply this glazing bead for you, but it's difficult to make out what you have without seeing the end profile. Would it be possible to get another photo showing that angle? You can use the picture above as a reference for exactly what we need to see. We can then work from there.
